Charging Systems: Generator: Overhaul

NOTE: For overhaul, see exploded view of generator. See Fig 1.

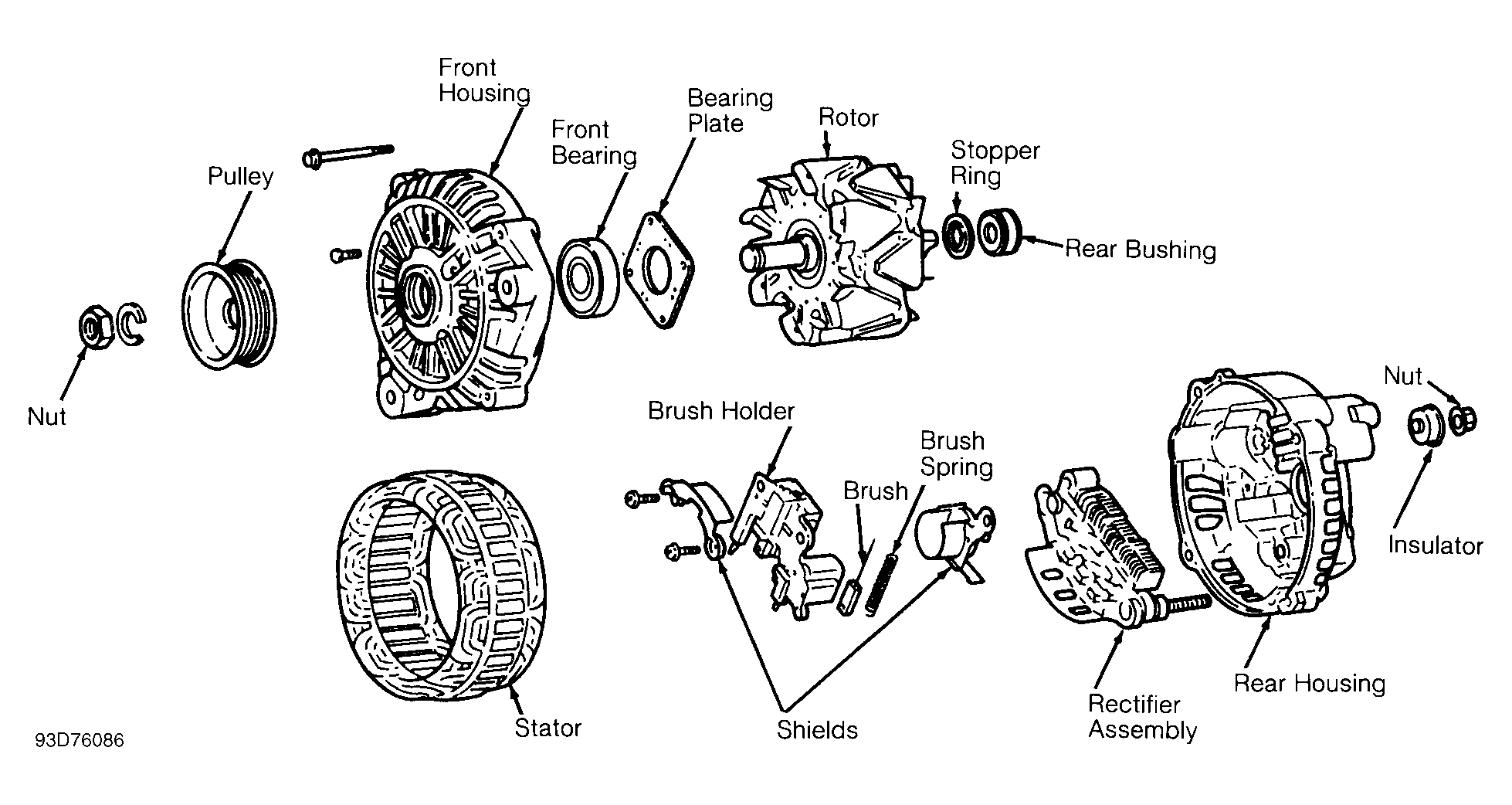

Fig 1: Exploded View Of Mitsubishi Generator
G93D76086Courtesy of FORD MOTOR CO.
