Data Link Connector: Locations

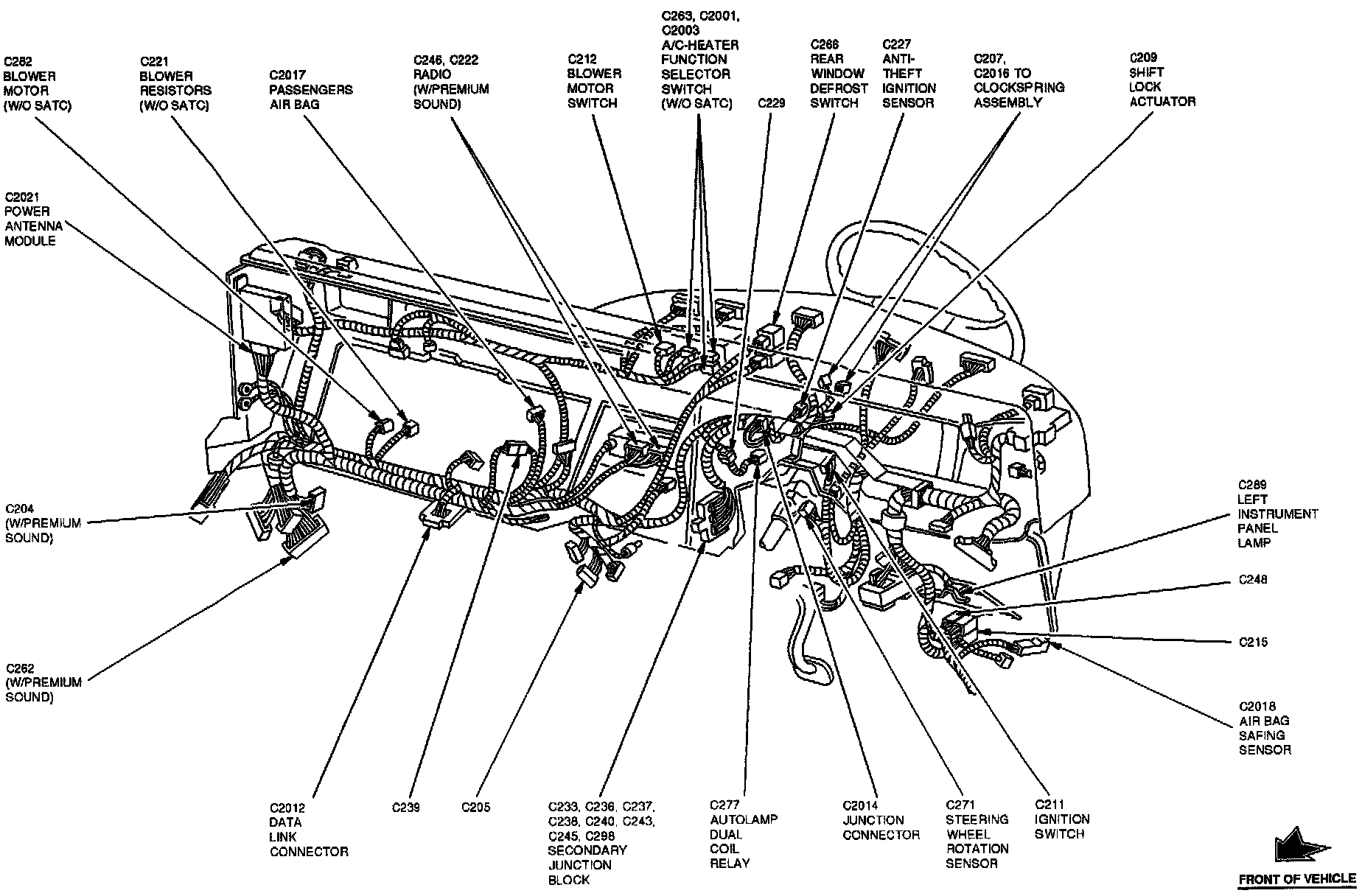

Behind Instrument Panel View:





The Data Link Connector is located below center of instrument panel, RH side of the steering wheel.
