Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Constant Control Relay Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Constant Control Relay Module
NOTE:
Constant control relay module is located on left side of battery, behind headlight. See
Fig 1
.

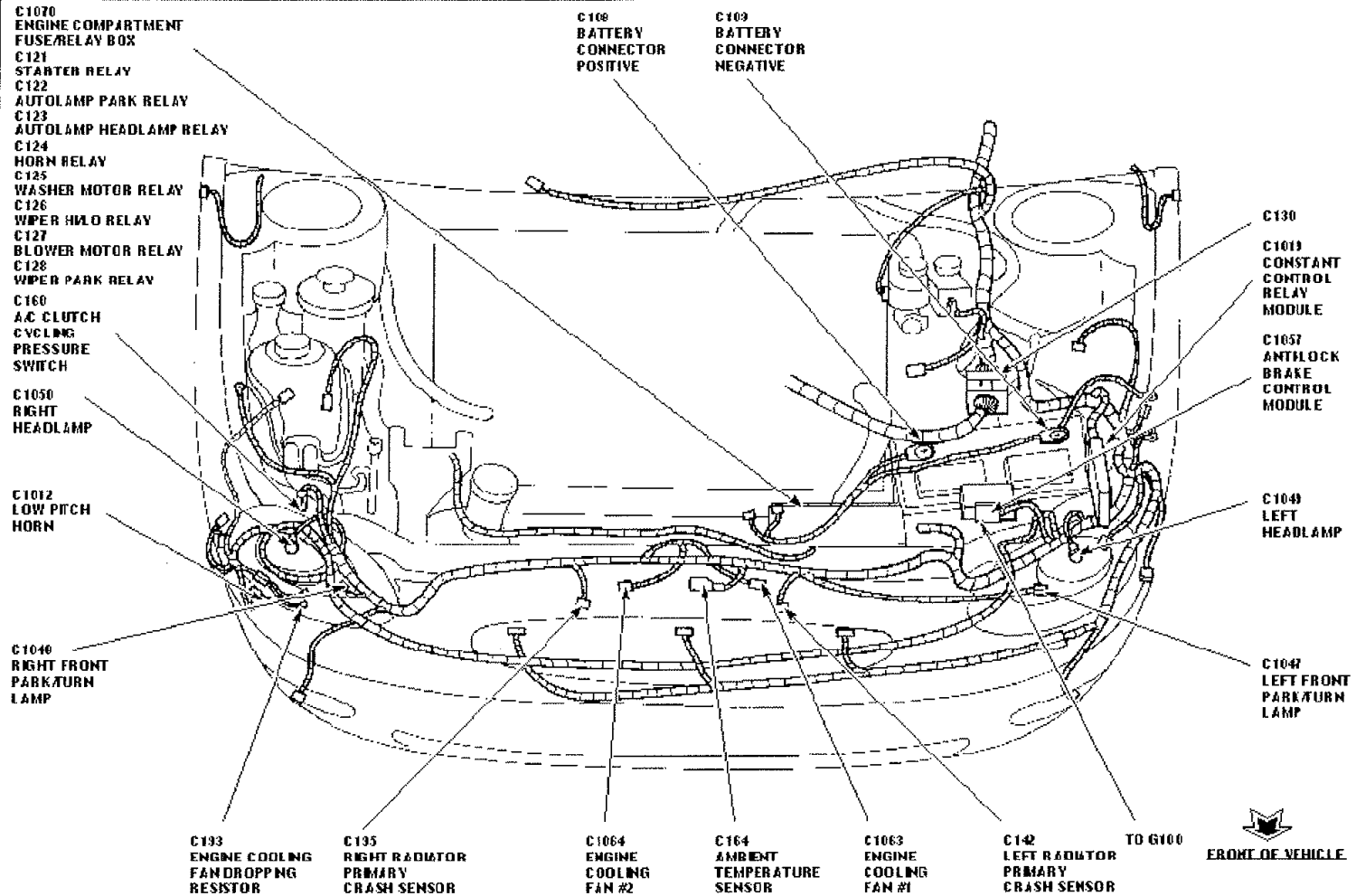

Fig 1: Engine Compartment
