Removal & Installation

Disconnect negative battery cable. Remove left inner panel or CD changer cover (if equipped). See Fig 1 . Remove timer module wiring harness connector. Remove 3 mounting screws. Remove timer module. To install, reverse removal procedure.

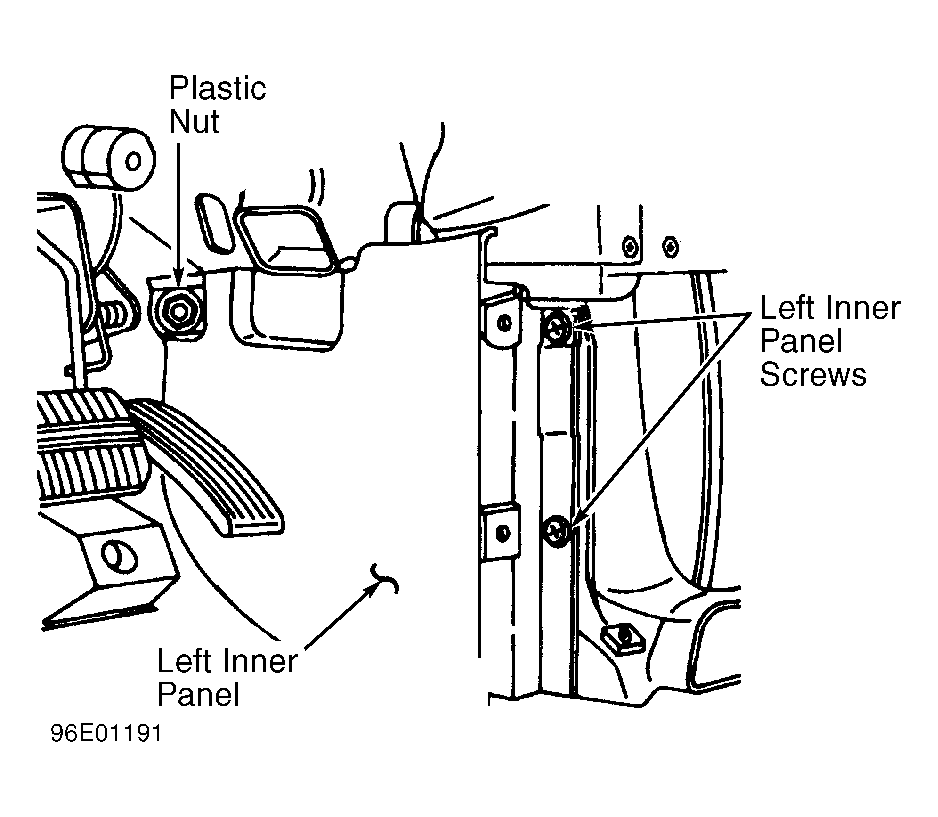

Fig 1: Removing Timer Module
G96E01191Courtesy of FORD MOTOR CO.
