Driver Seat Module (DSM) C341a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

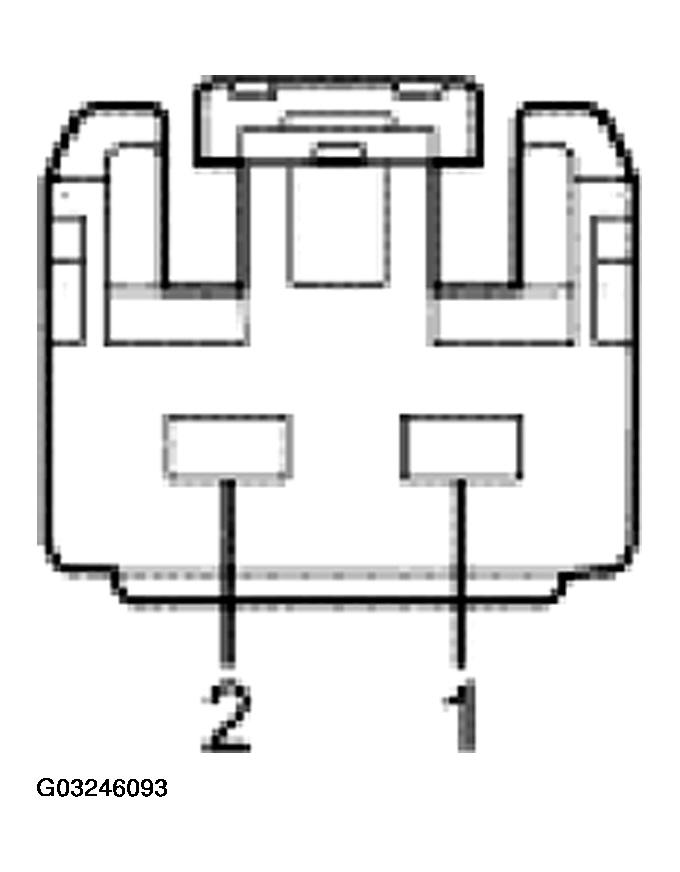

Courtesy of FORD MOTOR CO. DSM C341A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
566 (DG) DSM power (overload protected) |
10 volts or greater at the DSM connector. |
| 2 |
1205 (BK) DSM ground |
Less than 5 ohms between the DSM connector and ground. |
