Connector Identification

The following illustrations will aid in identification of wiring harness connectors and terminals. Illustrations are connector face views, unless otherwise specified. See Fig 1

Fig 1: Identifying 4-Pin Connector Terminals (Typical)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Passenger's Door Lock/Unlock Switch Connector C607 Terminals

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Driver's Door Lock/Unlock Switch Connector C509 Terminals (With Front Power Windows Only)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Driver's Door Lock/Unlock Switch Connector C508 Terminals (With Front & Rear Power Windows)

Courtesy of FORD MOTOR CO.

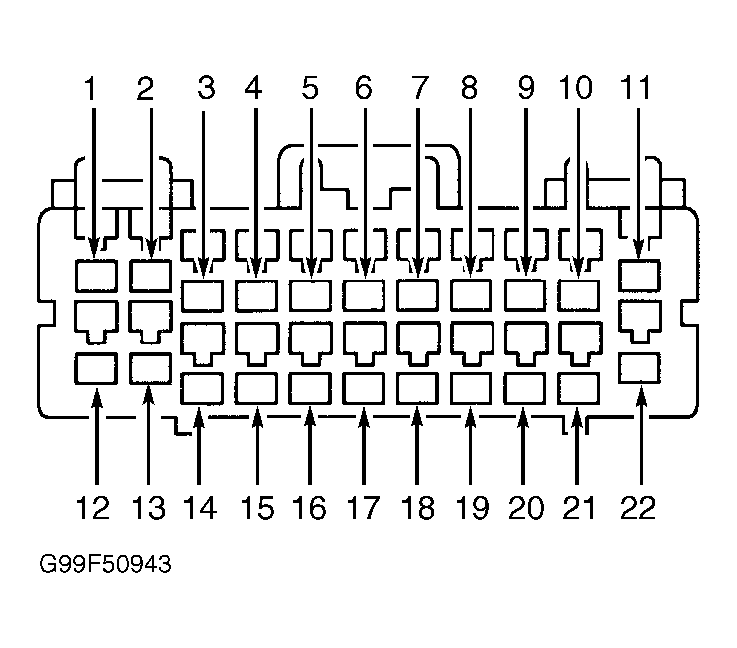

Fig 5: Identifying Smart Entry Control Timer Module Connector C2032A Terminals

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Smart Entry Control Timer Module Connector C2032B Terminals

Courtesy of FORD MOTOR CO.
