Battery Junction Box

NOTE: Battery junction box may also be referred to as power distribution box.

Fig 1: Locating Electrical Components

Courtesy of FORD MOTOR CO.

Fig 2: Locating Electrical Components Legend

Courtesy of FORD MOTOR CO.

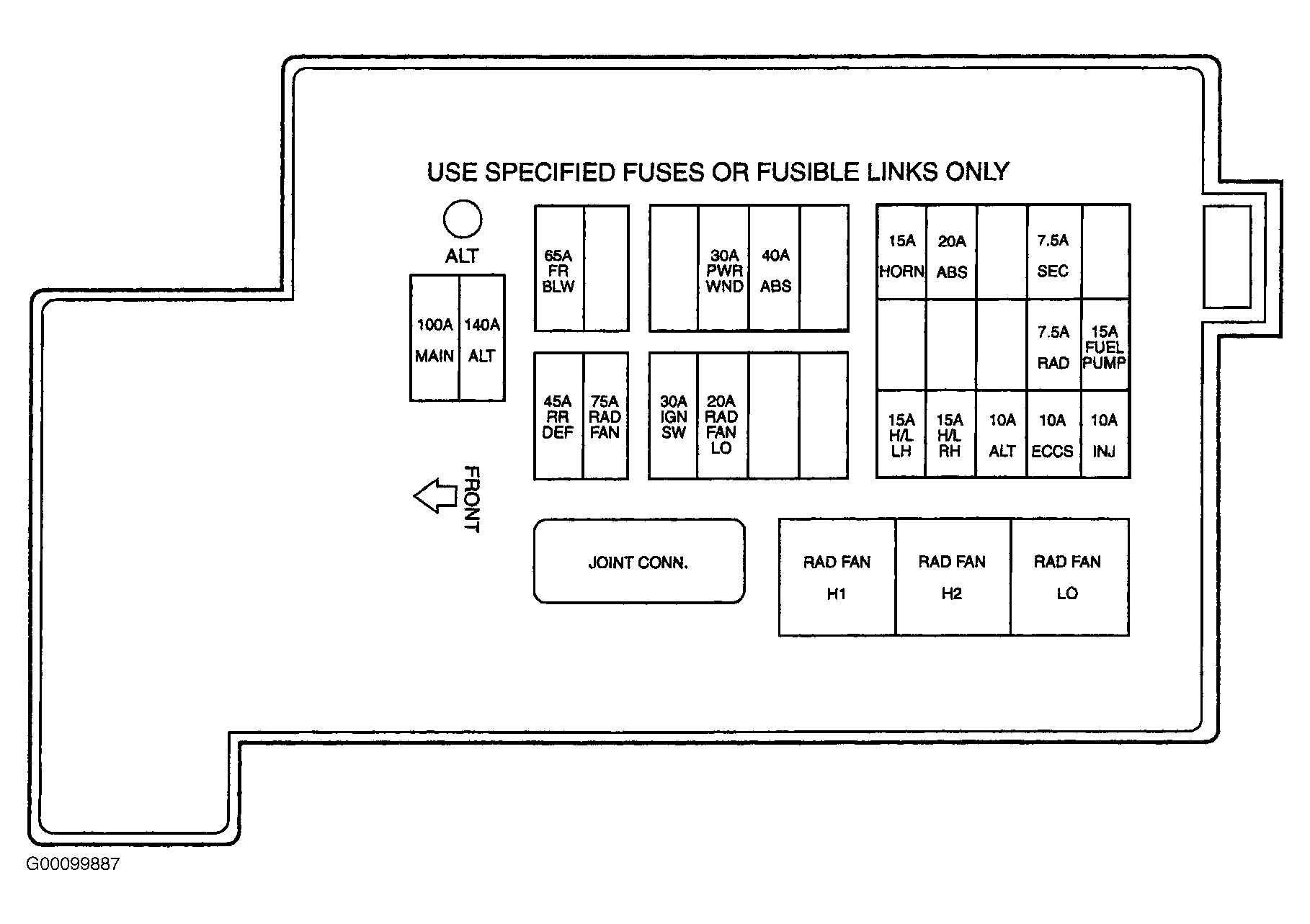

Fig 3: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

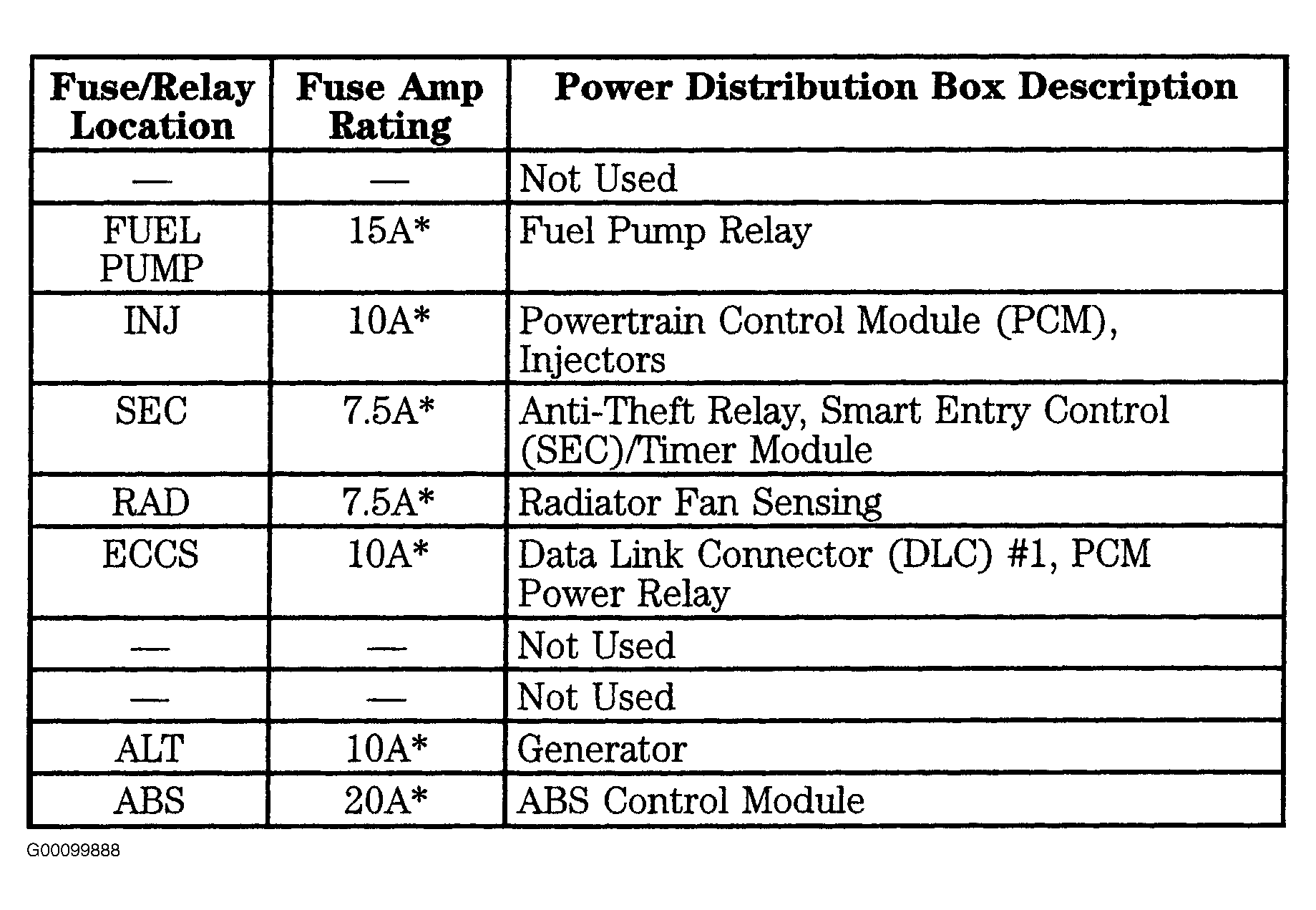

Fig 4: Battery Junction Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

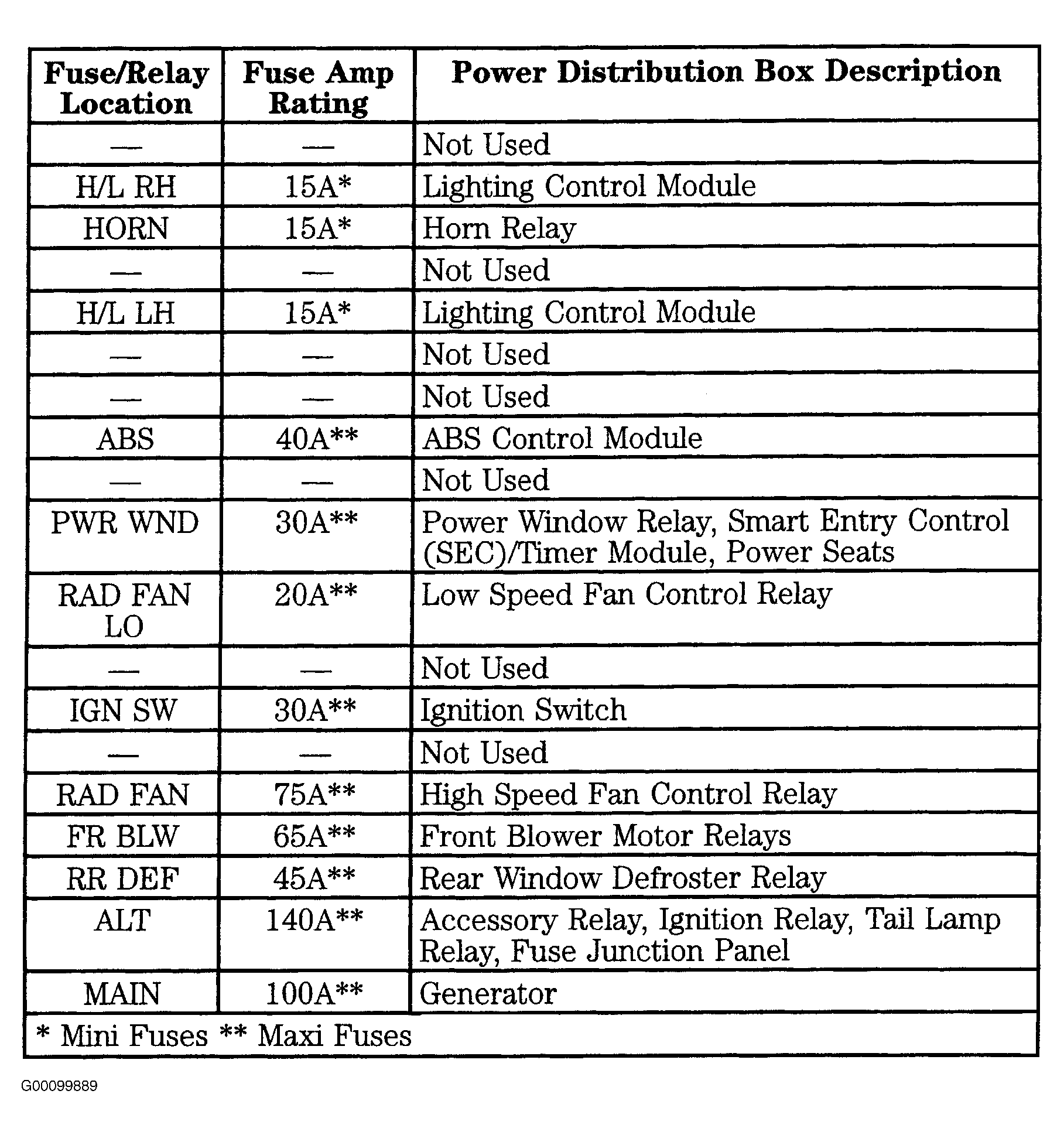

Fig 5: Battery Junction Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
