Automatic Transaxle: Assembly: Transaxle

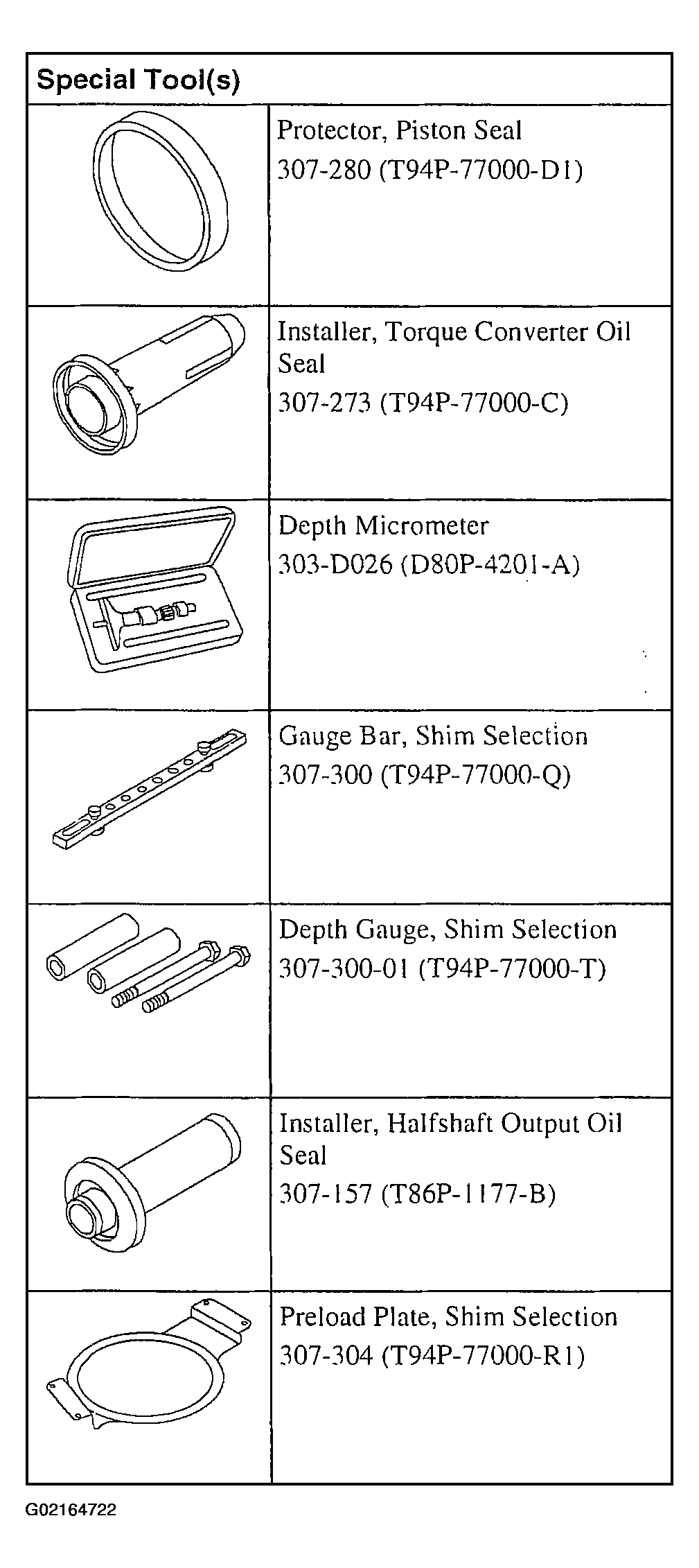

Fig 1: Identifying Special Tools (1 Of 4)
G02164722

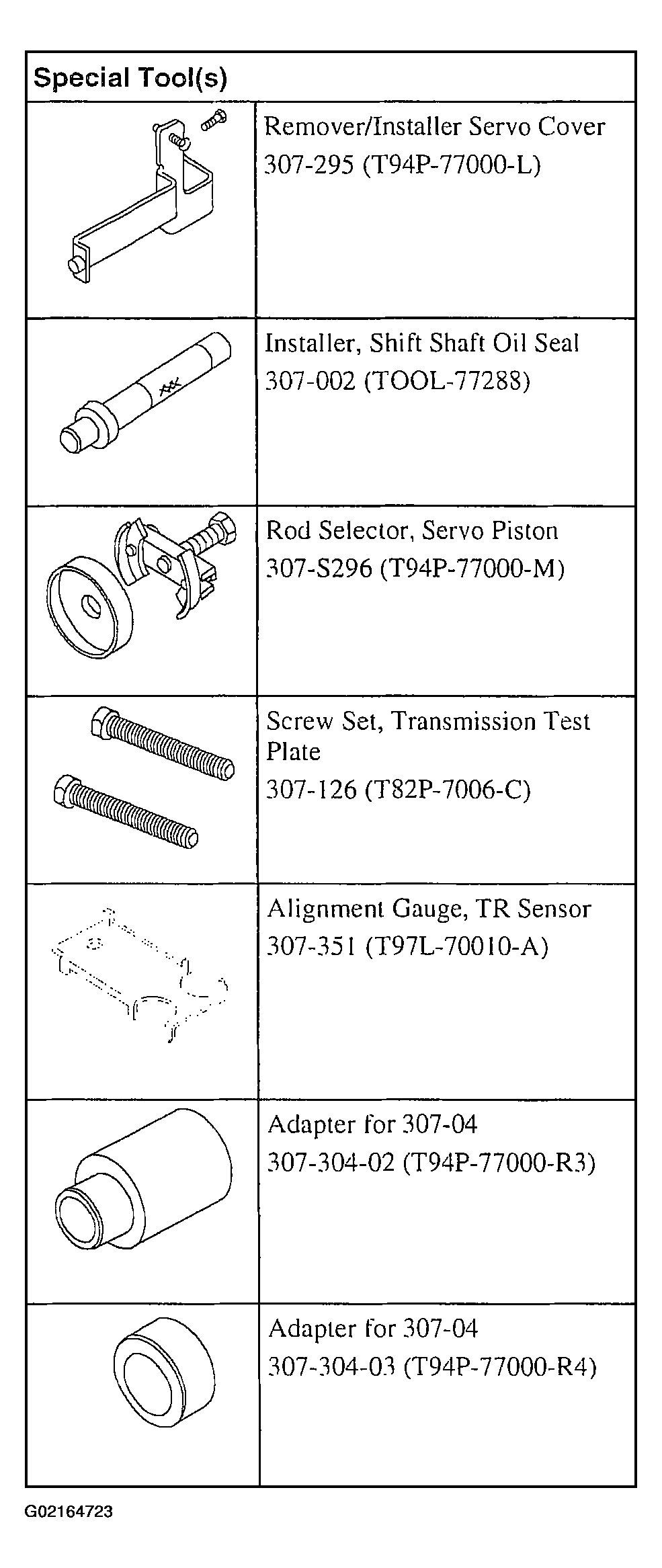

Fig 2: Identifying Special Tools (2 Of 4)
G02164723

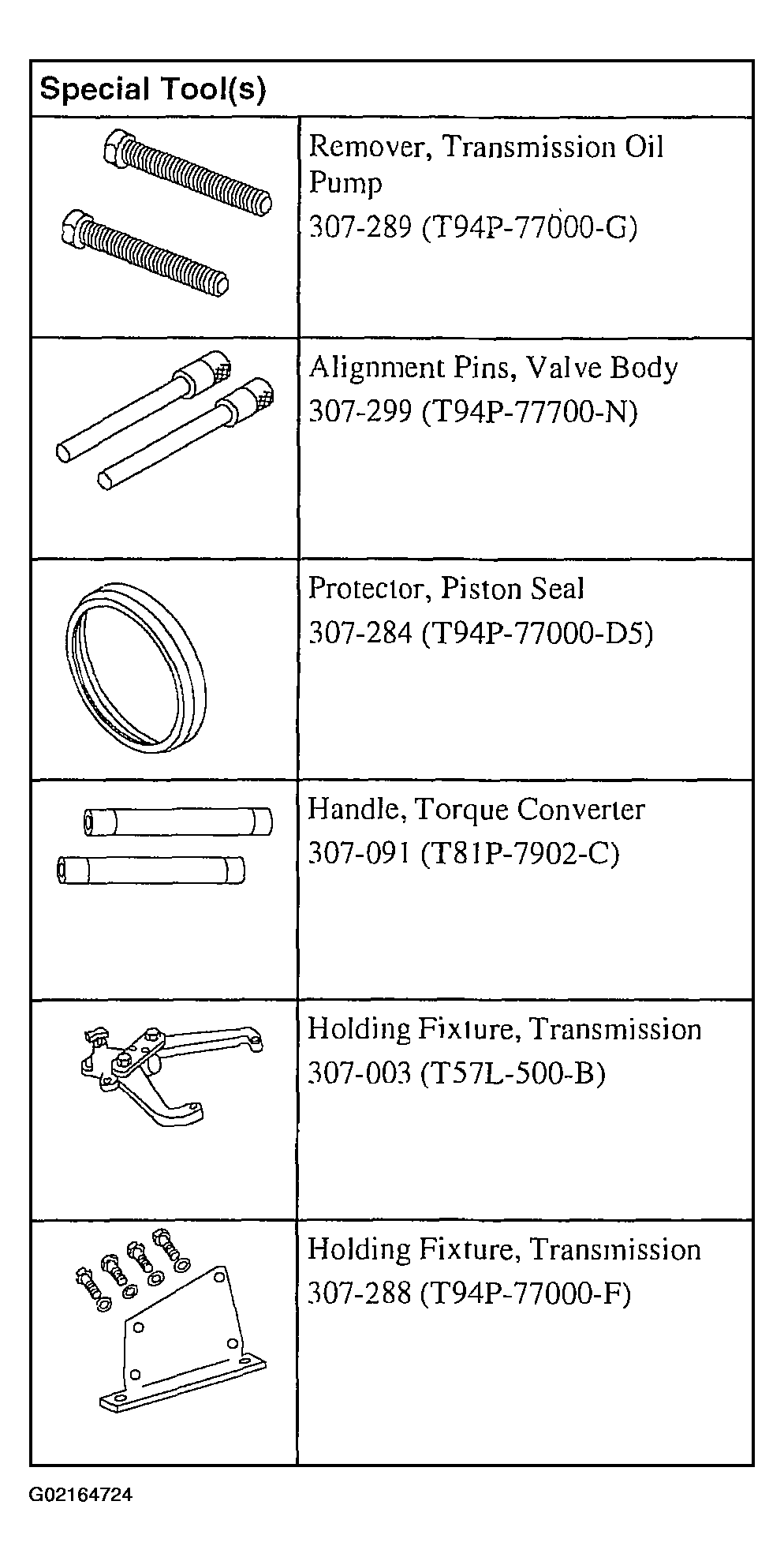

Fig 3: Identifying Special Tools (3 Of 4)
G02164724

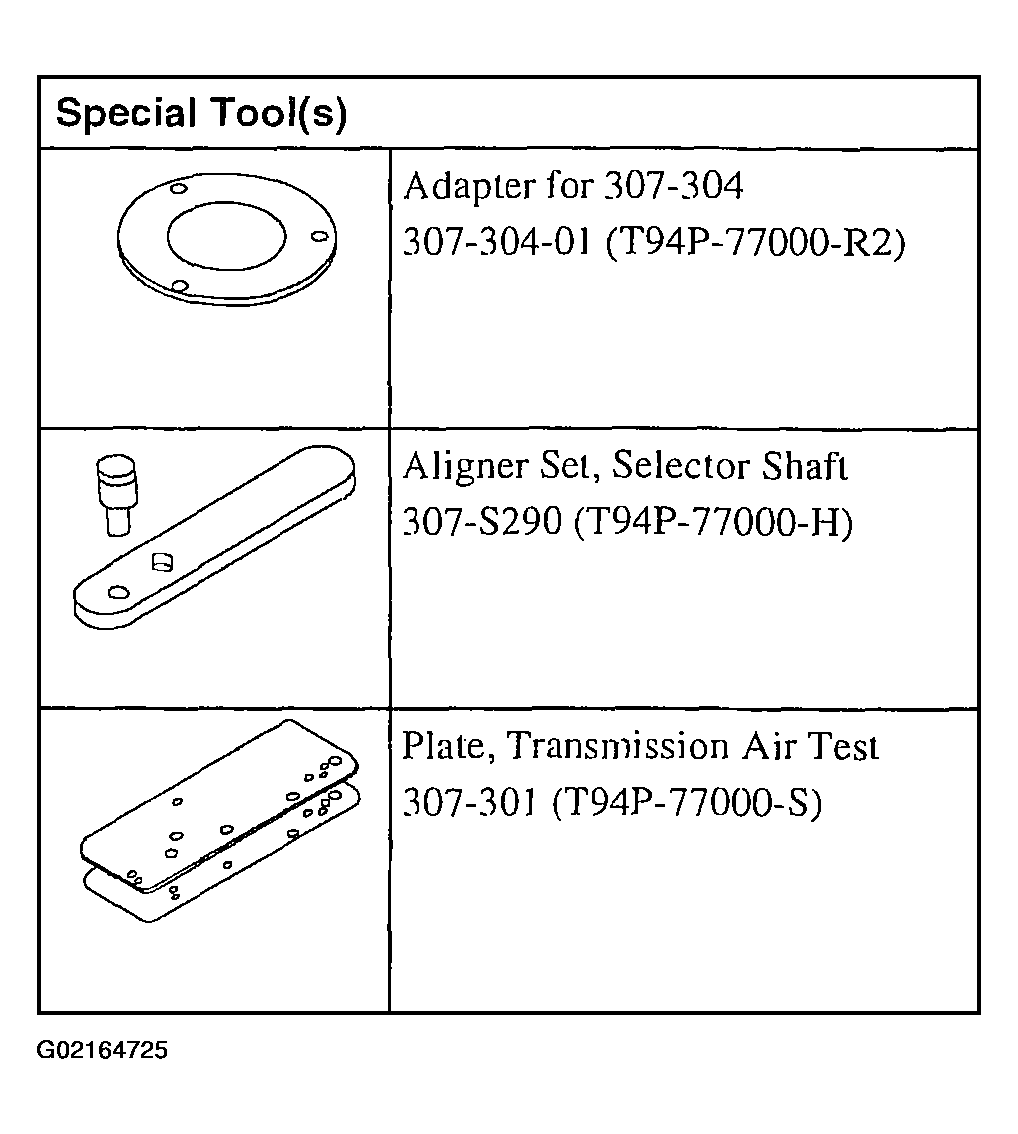

Fig 4: Identifying Special Tools (4 Of 4)
G02164725
