Pinpoint Test J: No Module/Network Communication

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

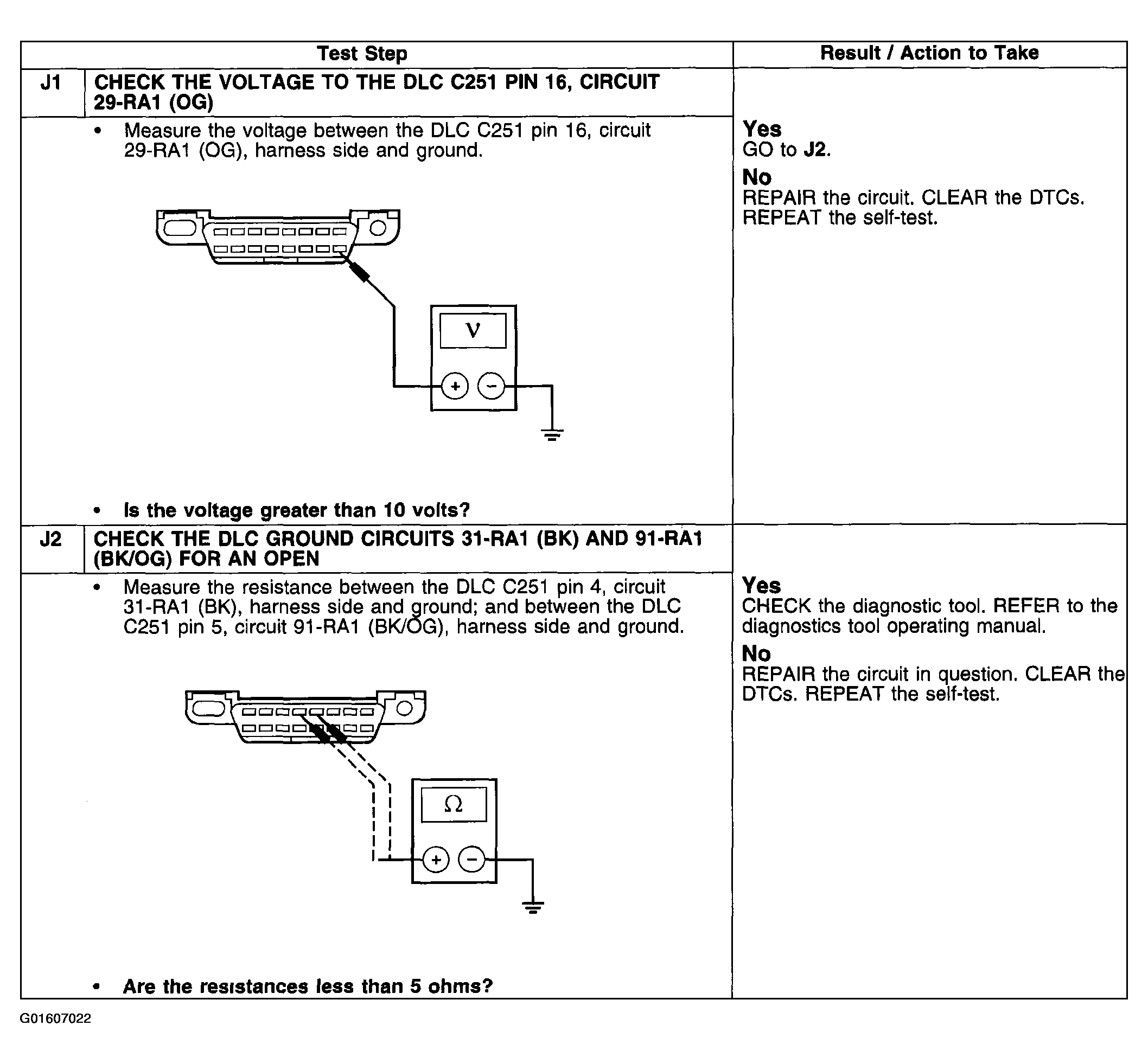

Fig 1: Pinpoint Test J: No Module/Network Communication (J1-J2)
G01607022Courtesy of FORD MOTOR CO.
