Pinpoint Test J: No Module/Network Communication

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

J1 CHECK THE VOLTAGE TO THE DLC C251 PIN 16, CIRCUIT 29-RA1 (OG)

Measure the voltage between the DLC C251 pin 16, circuit 29-RA1 (OG), harness side and ground.

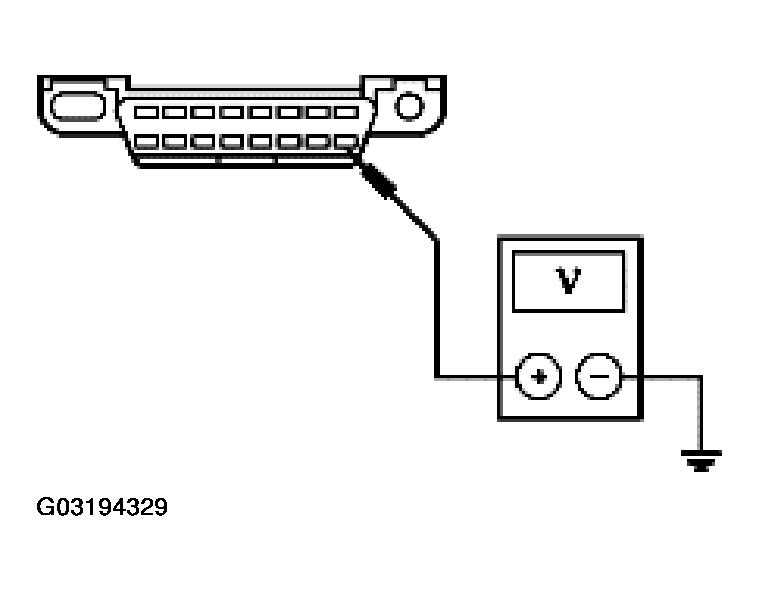

Fig 1: Checking The Voltage To The DLC C251 Pin 16, Circuit 29-RA1 (OG)
Courtesy of FORD MOTOR CO.
Is the voltage greater than 10 volts?

Yes

GO to J2.

REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.

J2 CHECK THE DLC GROUND CIRCUITS 31-RA1 (BK) AND 91-RA1 (BK/OG) FOR AN OPEN

Measure the resistance between the DLC C251 pin 4, circuit 31-RA1 (BK), harness side and ground; and between the DLC C251 pin 5, circuit 91-RA1 (BK/OG), harness side and ground.

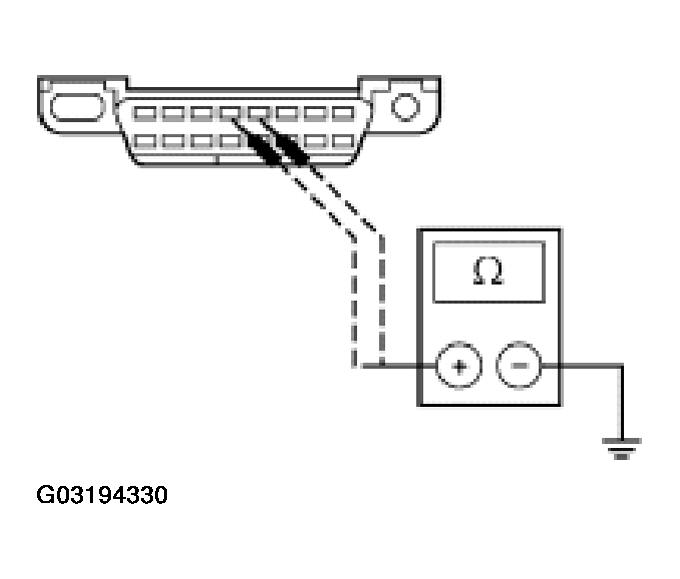

Fig 2: Checking The DLC Ground Circuits 31-RA1 (BK) And 91-RA1 (BK/OG) For An Open
Courtesy of FORD MOTOR CO.
Are the resistances less than 5 ohms?

Yes

CHECK the diagnostic tool. REFER to the diagnostics tool operating manual.

REPAIR the circuit in question. CLEAR the DTCs. REPEAT the self-test
