With Automatic Transmission

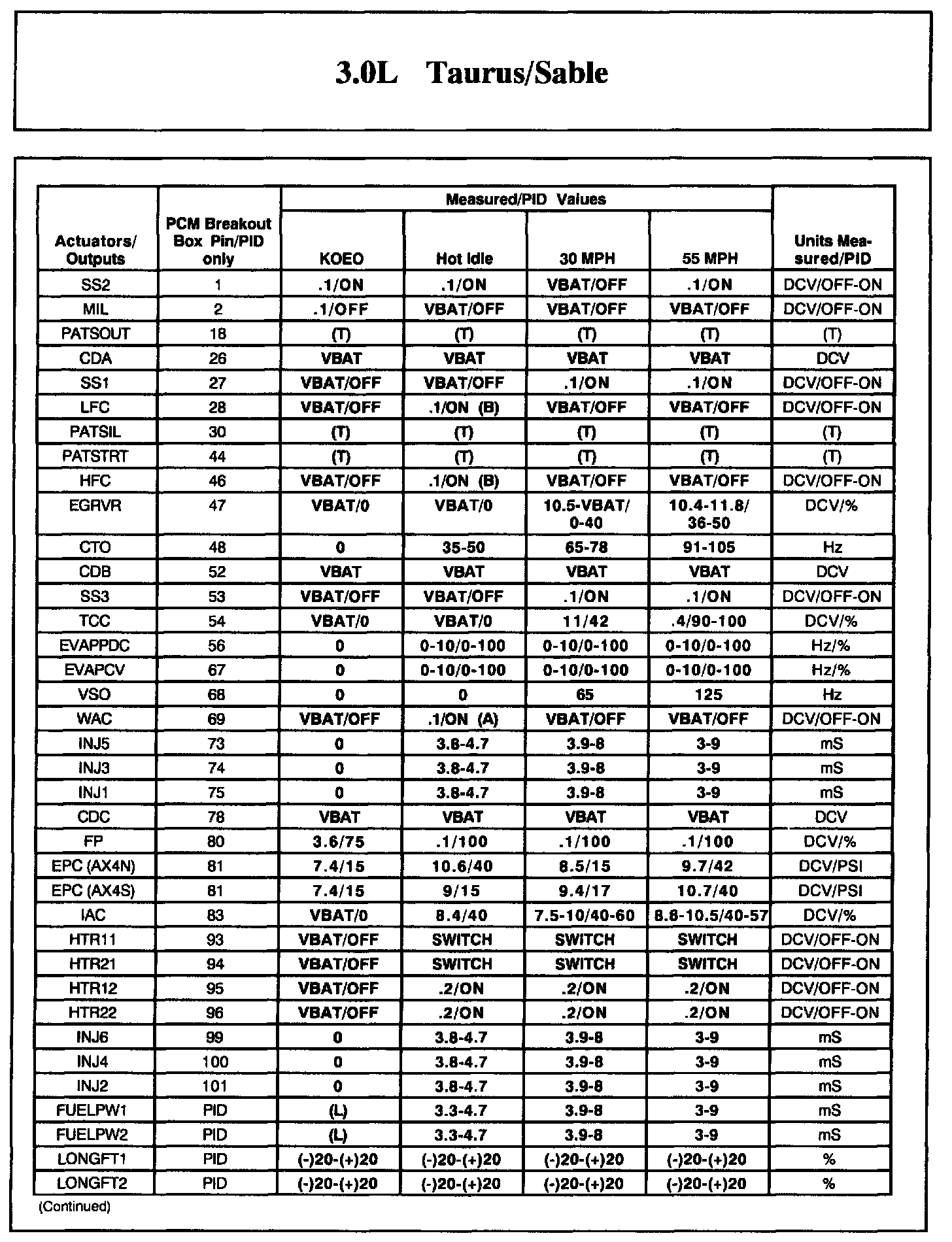

Typical Diagnostic Reference Values, Part 1:

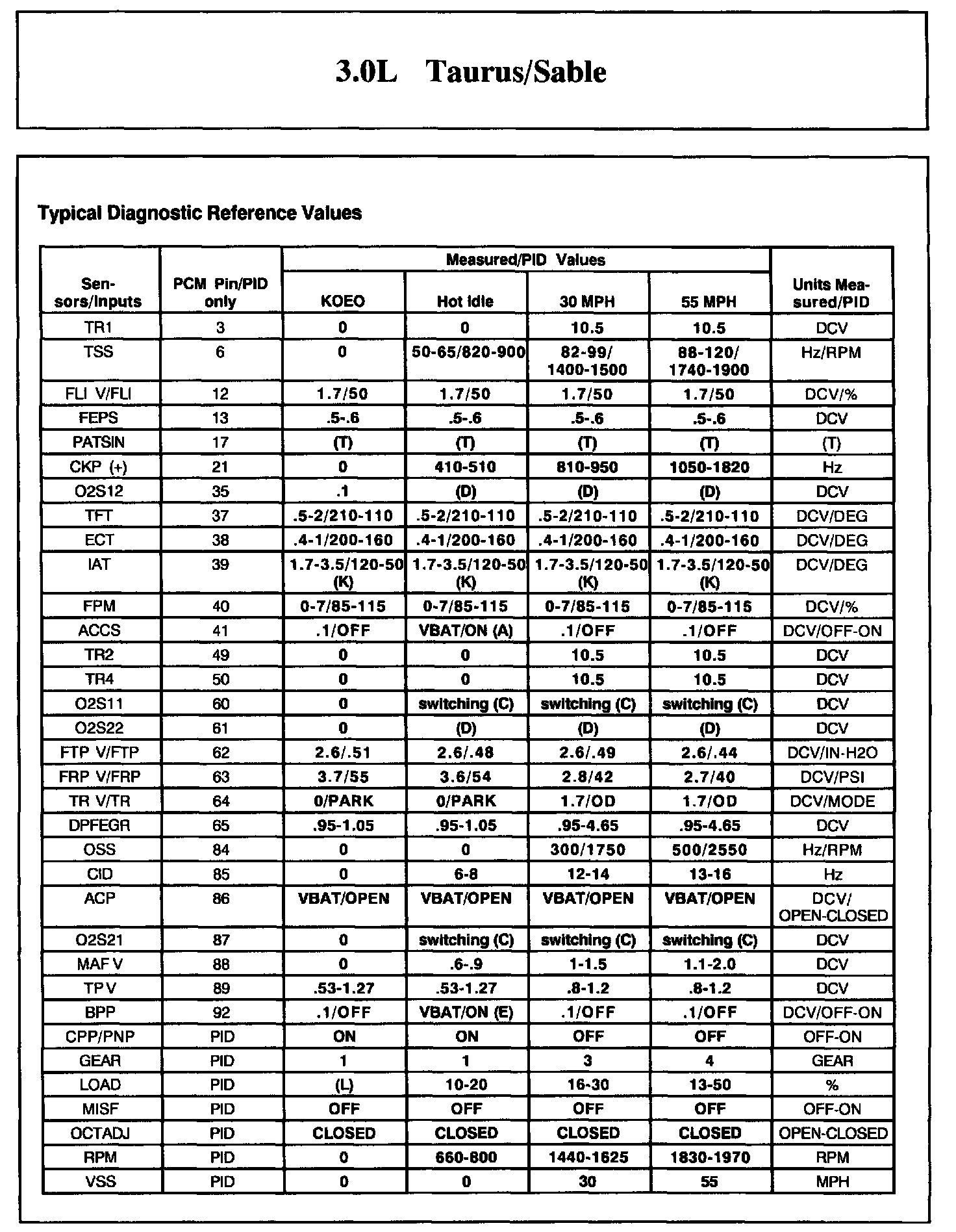

Typical Diagnostic Reference Values, Part 2:

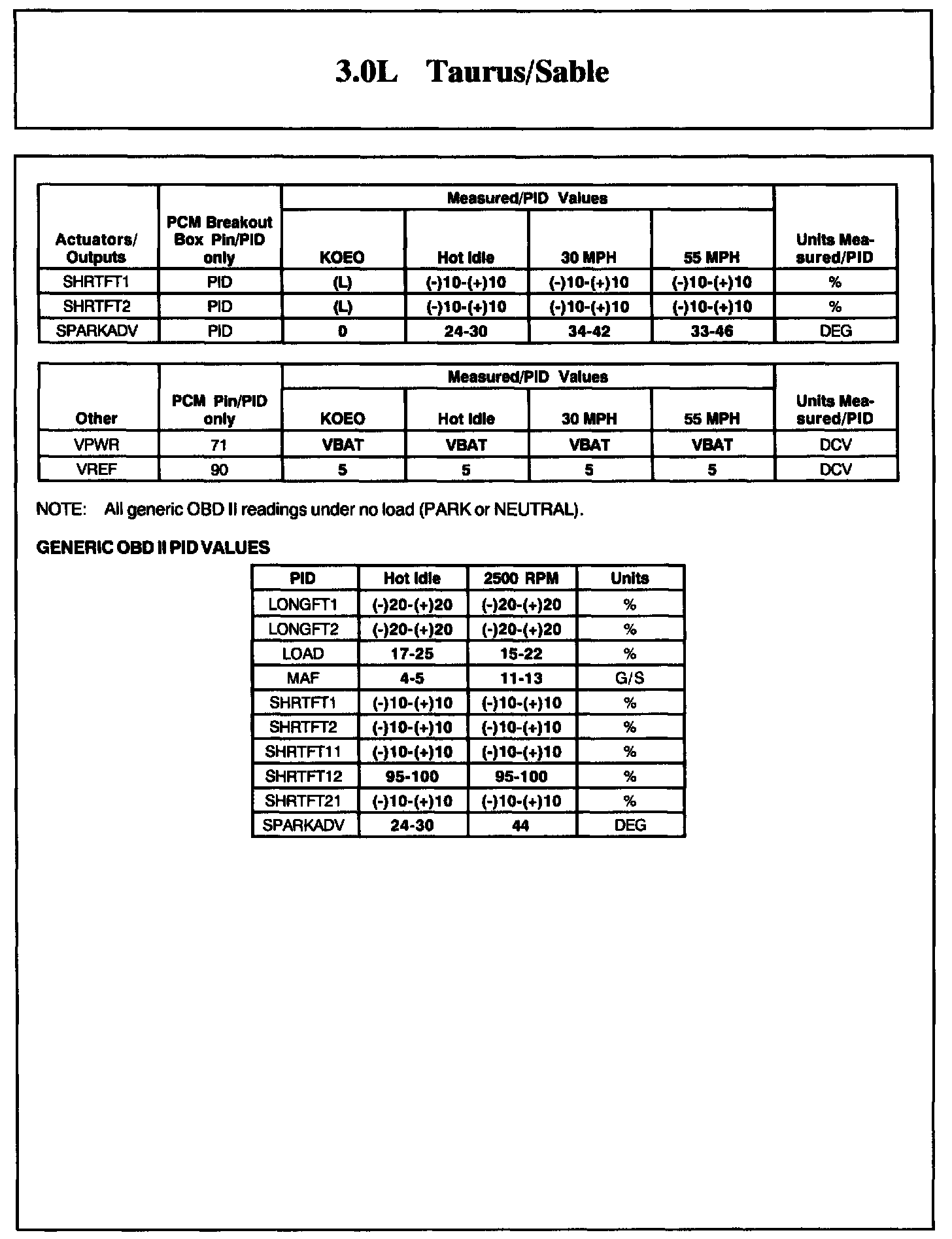

Typical Diagnostic Reference Values, Part 3:
