Test M: Memory Seat Changes Position From Memory Switch While Driving

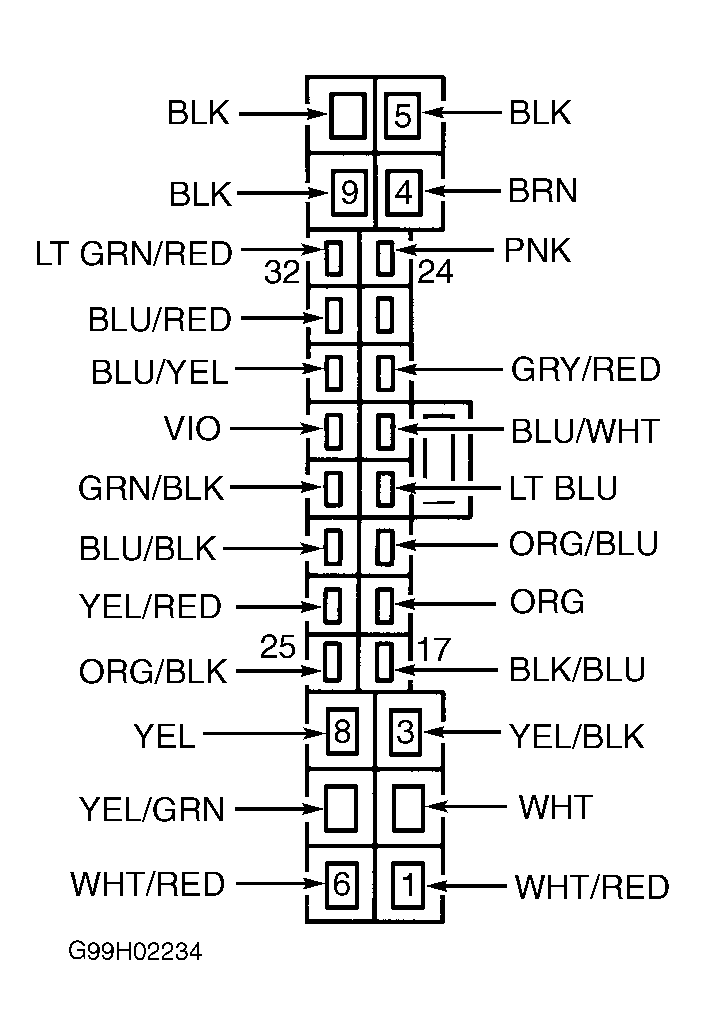

Turn ignition off. Disconnect Driver's Seat Module (DSM) connectors. Disconnect transaxle range switch connector. Turn ignition on. Measure voltage between ground and DSM connector C2046A terminal No. 19 (Orange/Blue wire). See Figure . If voltage is present, repair short to voltage in Orange/Blue wire. If no voltage is present, replace DSM.
