Pinpoint Test A: The Doors Do Not Lock/Unlock Using The Remote Transmitter

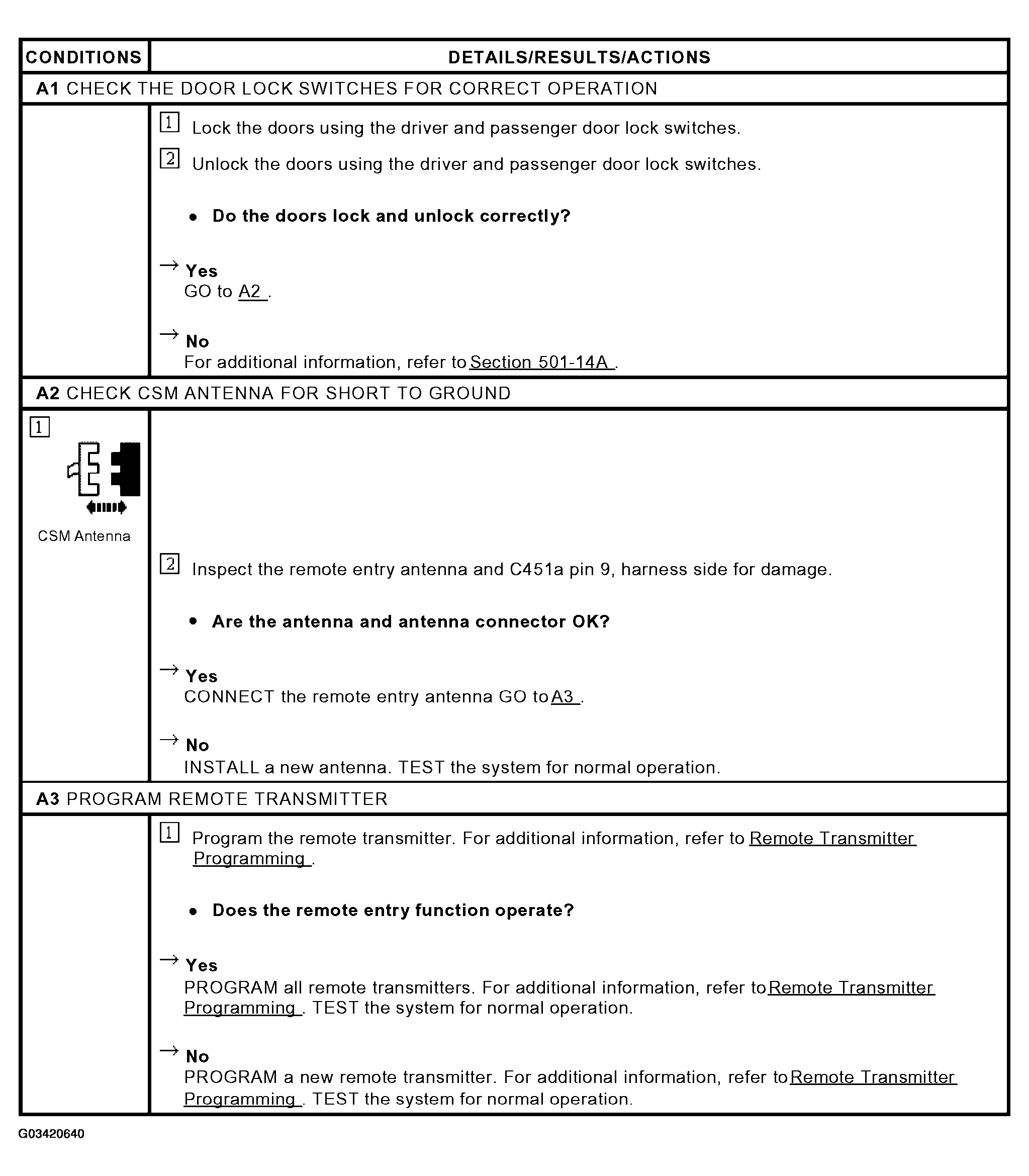

Fig 1: Pinpoint Test A: Doors Do Not Lock/Unlock Using Remote Transmitter
G03420640Courtesy of FORD MOTOR CO.
