Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the integrated control panel (18C858). For additional information, refer toCLIMATE CONTROL ASSEMBLY .
Remove the knob (18519).

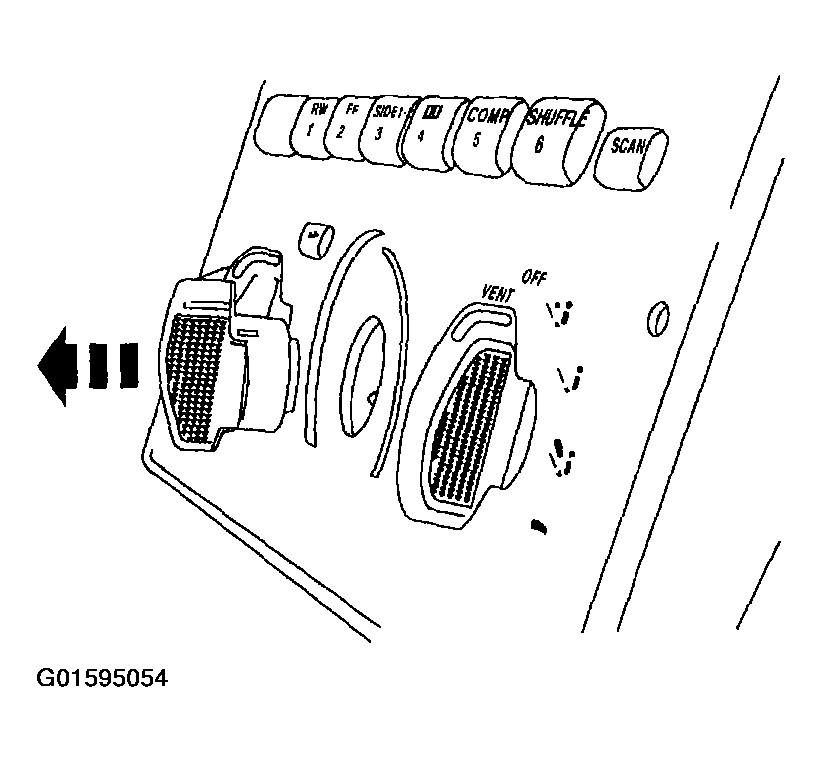

Fig 1: Removing Knob (18519)
Courtesy of FORD MOTOR CO.
Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch (19C733).

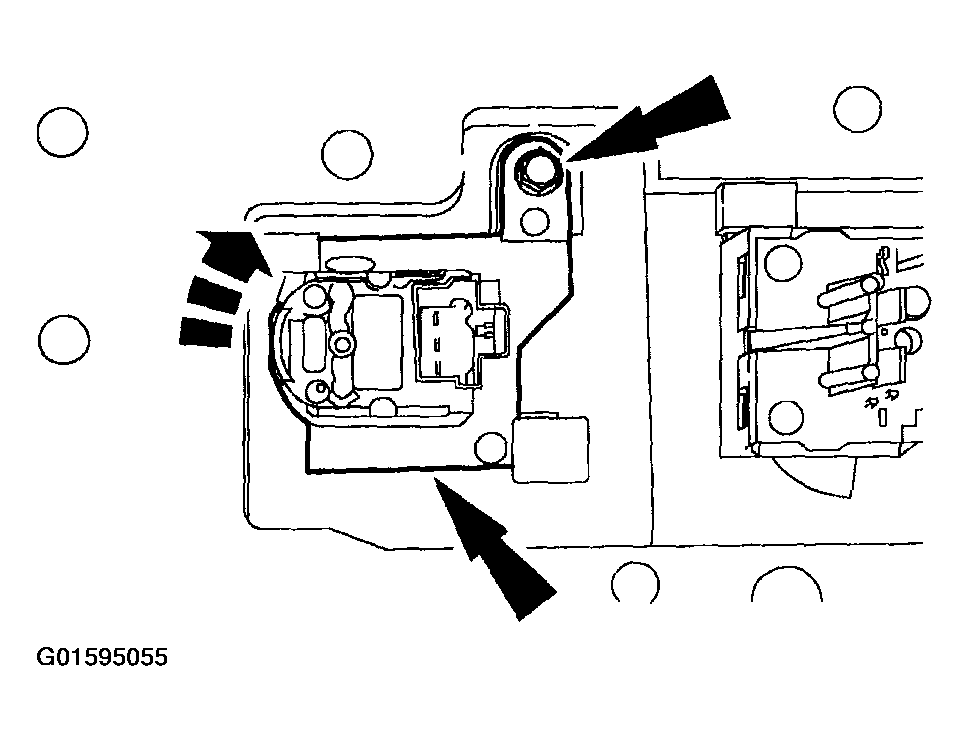

Fig 2: Rotating Temperature Control Switch Clockwise
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
