Pinpoint Test G: DTC C1414: Incorrect Module Design Level

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Test Step

  1. G1 CHECK THE 4X4 STATUS CIRCUIT AT THE ABS MODULE
    • Verify the correct operation of the 4x4. If the 4x4 is not operating correctly it must be repaired before proceeding. REFER to FOUR WHEEL DRIVE SYSTEMS .
    • Key in OFF position.
    • Disconnect: Instrument Cluster C220b.
    • Measure the voltage between the instrument cluster C220b pin 9, circuit 210 (LB), harness side and ground.

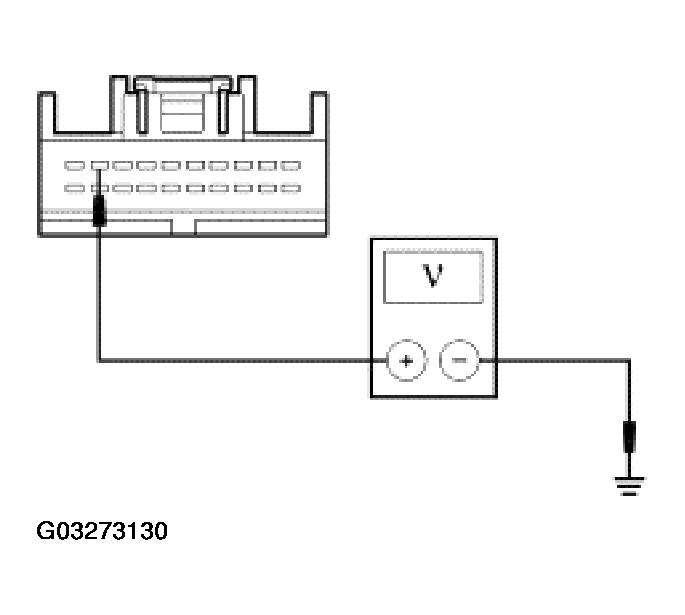

      Fig 1: Measuring Voltage Between Instrument Cluster C220b Pin 9, Circuit 210 (LB), Harness Side And Ground
      G03273130Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Result / Action to Take

    1. Yes  : GO to G2.
    2. No  : GO to G3.
  2. G2 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
    • Disconnect all instrument cluster connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all instrument cluster connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER .
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test with the brake pedal not applied.
  3. G3 CHECK CIRCUIT 210 (LB) FOR AN OPEN OR A SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: ABS Module C135.
    • Disconnect: Instrument Cluster C220b.
    • Measure the resistance between the ABS module C135 pin 10, circuit 210 (LB), harness side and the instrument cluster C220b pin 9, circuit 210, (LB) harness side; and between the ABS module C135 pin 10, circuit 210, (LB) harness side and ground.

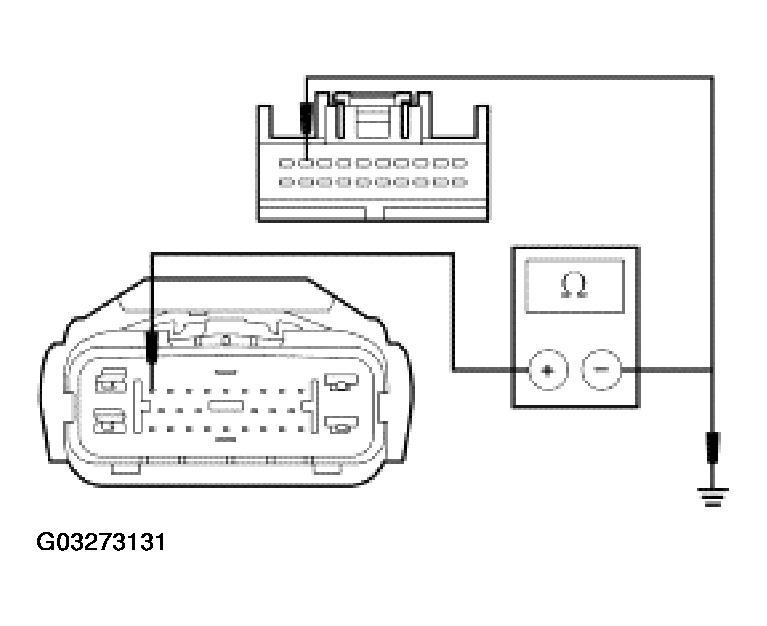

      Fig 2: Measuring Resistance Between ABS Module Pin Circuit Harness Side
      G03273131Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the ABS module and the instrument cluster and greater than 10,000 ohms between the ABS module and ground?
    1. Yes  : GO to G4.
    2. No  : REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test with the brake pedal not applied.
  4. G4 CHECK CIRCUIT 210 (LB) FOR A SHORT TO POWER
    • Key in ON position.
    • Measure the voltage between the ABS module C135 pin 10, circuit 210 (LB), harness side and ground.

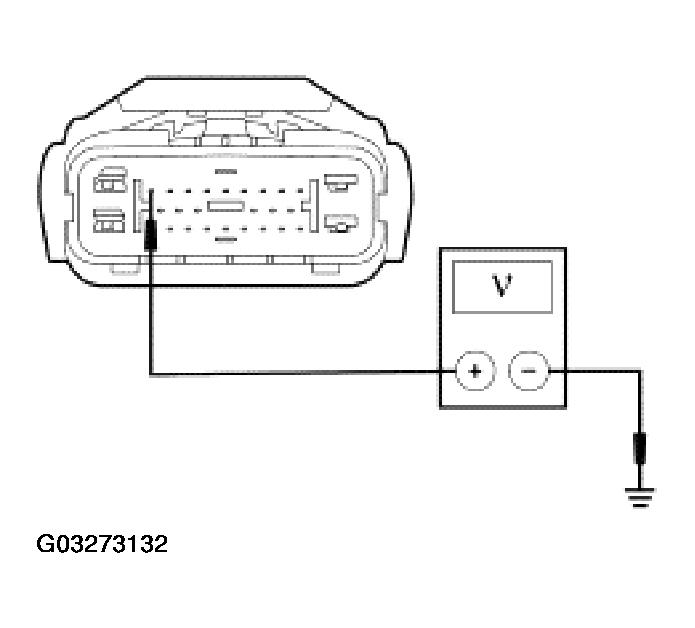

      Fig 3: Measuring Voltage Between ABS Module C135 Pin 10, Circuit 210 (LB), Harness Side And Ground
      G03273132Courtesy of FORD MOTOR CO.
    • Is there any voltage present?
    1. Yes  : REPAIR the circuit, CLEAR the DTCs. REPEAT the self-test with the brake pedal not applied.
    2. No  : GO to G5.
  5. G5 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect all ABS connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all ABS connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE . TEST the system for normal operation.
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test with the brake pedal not applied.
