Climate Control Assembly

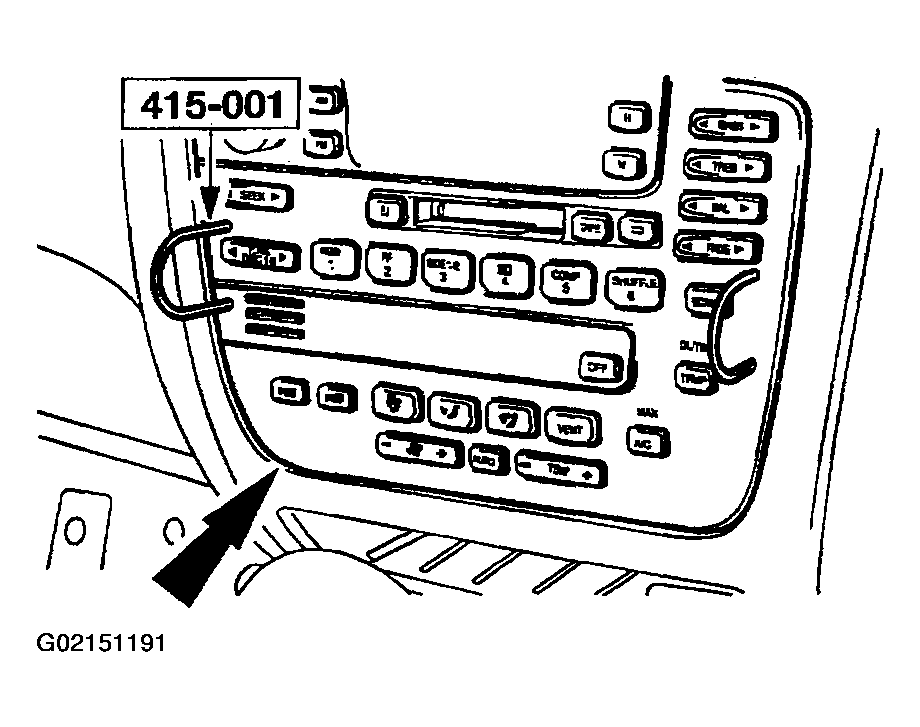

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

All vehicles

1. Using the special tool, pull out the integrated control panel (18C858).

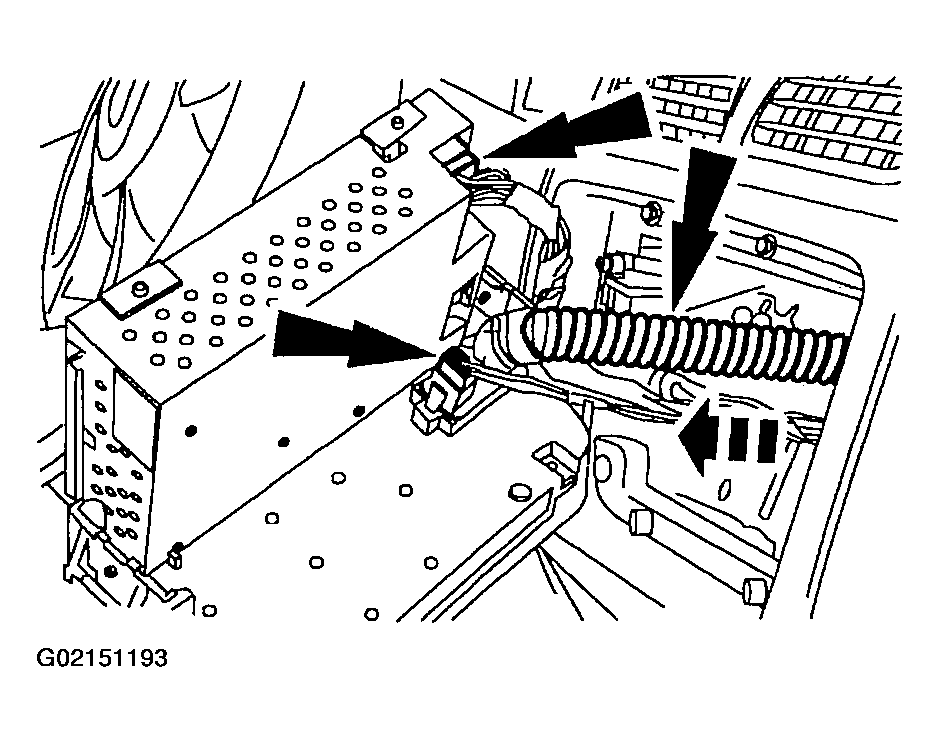

   Fig 2: Removing Integrated Control Panel

   Courtesy of FORD MOTOR CO.

   Vehicles with manual climate control

2. Label and disconnect the electrical connectors. Remove the integrated control panel.

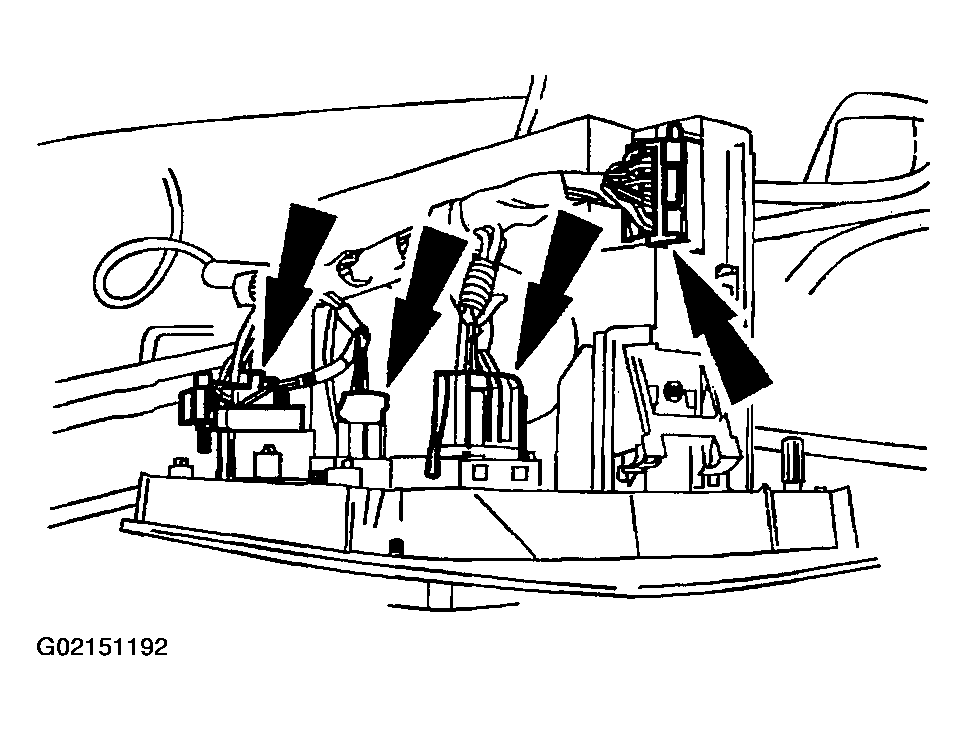

   Fig 3: Disconnecting Electrical Connectors

   Courtesy of FORD MOTOR CO.

   Vehicles with electronic automatic temperature

   control (EATC)

3. Label and disconnect the electrical connectors and the in-car temperature sensor hose (19D888). Remove the integrated control panel.
   Fig 4: Removing In-Car Temperature Sensor Hose

   Courtesy of FORD MOTOR CO.

   All vehicles

4. To install, reverse the removal procedure.
