Module - Smart Entry Control (SEC)/Timer: Removal

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damages may result.

Disconnect the battery ground cable.
Position the transmission control module (TCM) bracket aside.
1. Disconnect the electrical connectors.
2. Remove the bolts.

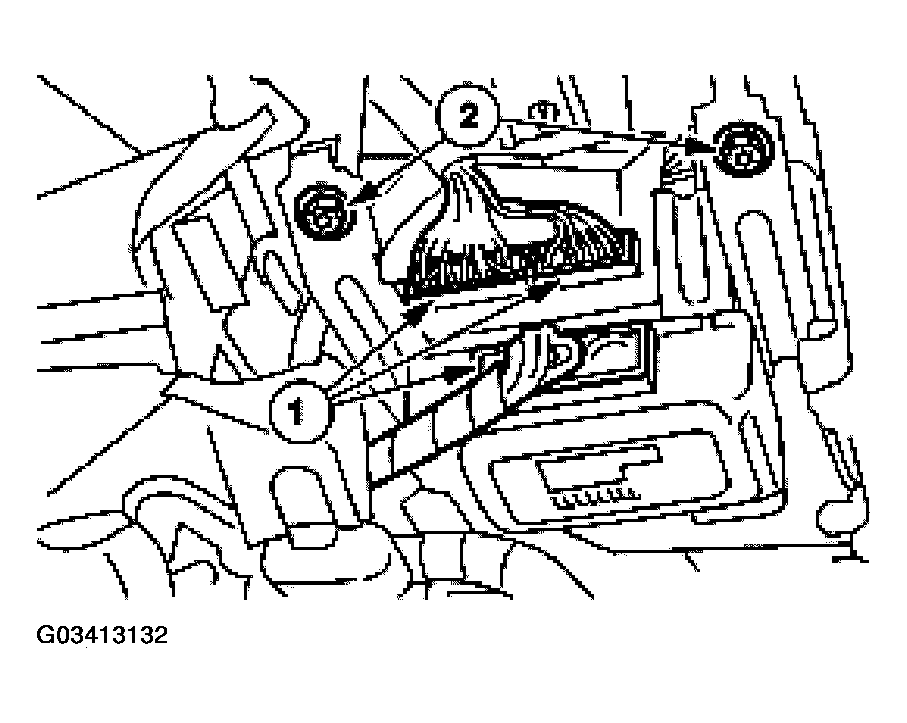

  Fig 1: Positioning Transmission Control Module (TCM) Bracket
  Courtesy of FORD MOTOR CO.
Remove the TCM bracket.
- Release the wiring harness locators.

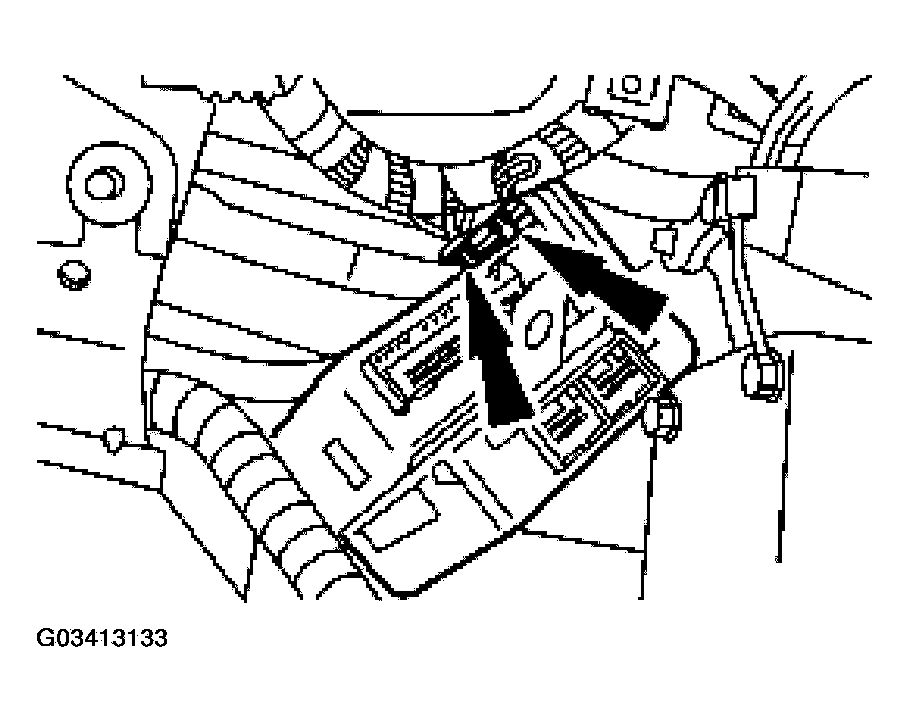

  Fig 2: Removing TCM Bracket
  Courtesy of FORD MOTOR CO.
Remove the SEC/timer module from the TCM bracket.
