Component Location

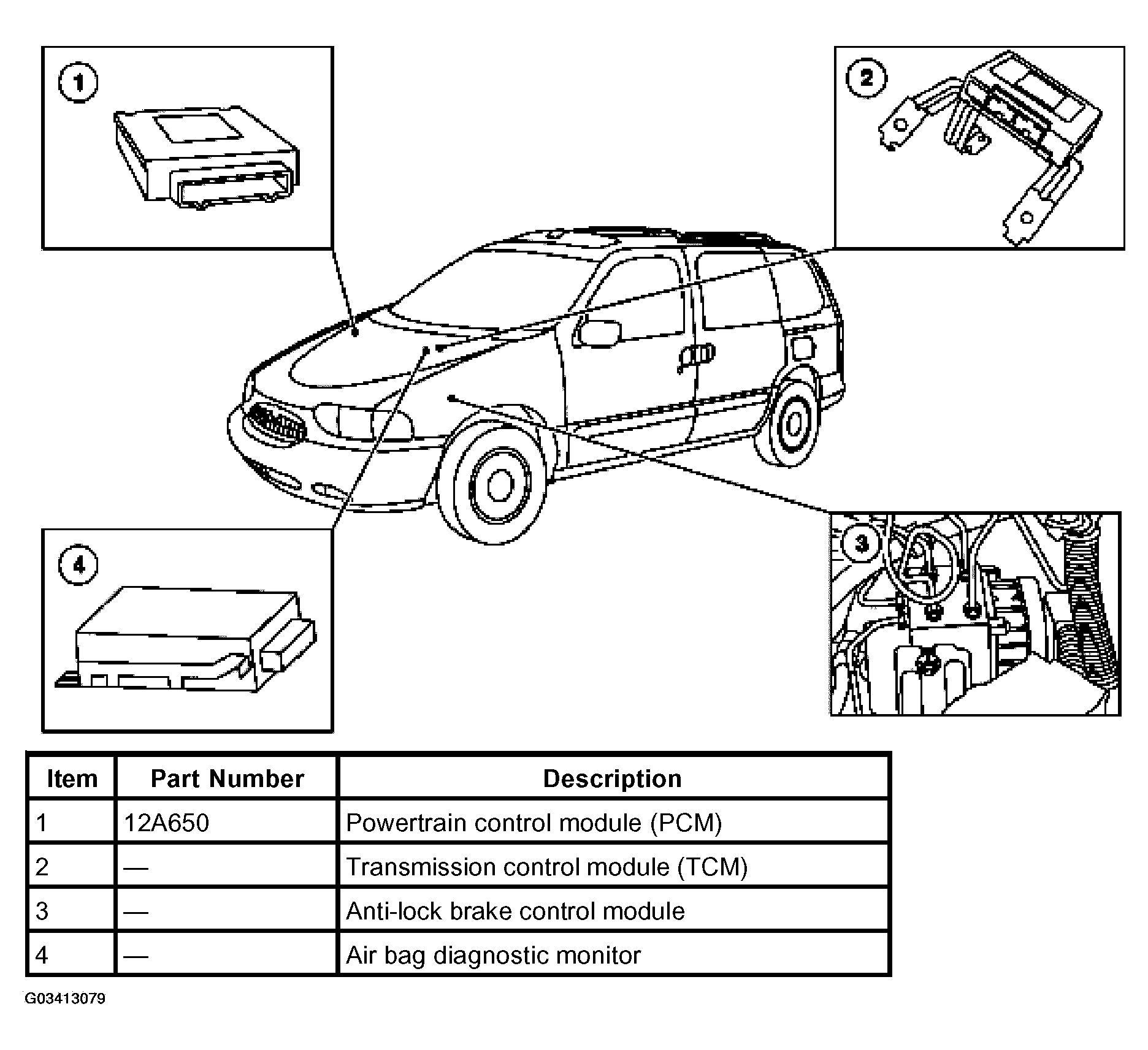

Fig 1: Identifying Communications Network Component Locations
G03413079Courtesy of FORD MOTOR CO.
