Piston - Selection

NOTE: The cylinder bore must be within the specifications for taper and out -of-round before fitting a piston.

Select a piston size based on the cylinder bore.

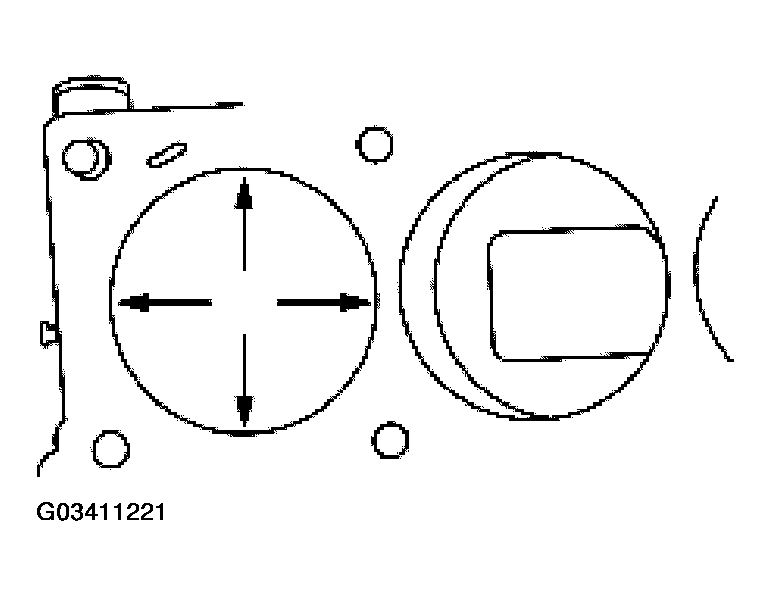

Fig 1: Identifying Position And Size Of Cylinder Bore
Courtesy of FORD MOTOR CO.

NOTE: For precision fit, new pistons are divided into three categories within each size range based on their relative position within the range. A paint spot on the new pistons indicates the position within the size range.

Choose the piston with the correct paint color.
- For additional information, refer to 3.3L V6 for piston grading.

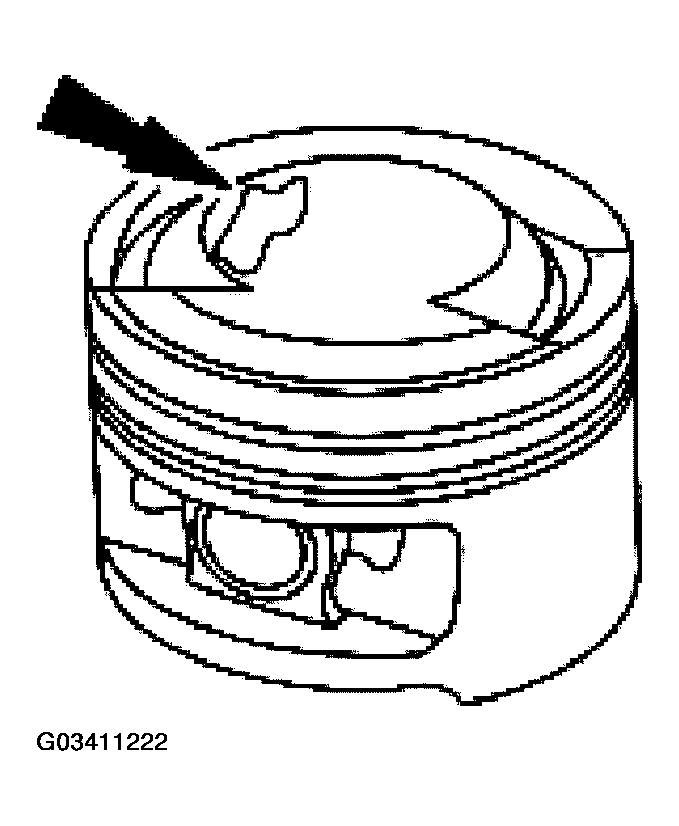

  Fig 2: Locating Piston Head
  Courtesy of FORD MOTOR CO.
