Suction Accumulator to Compressor Line: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

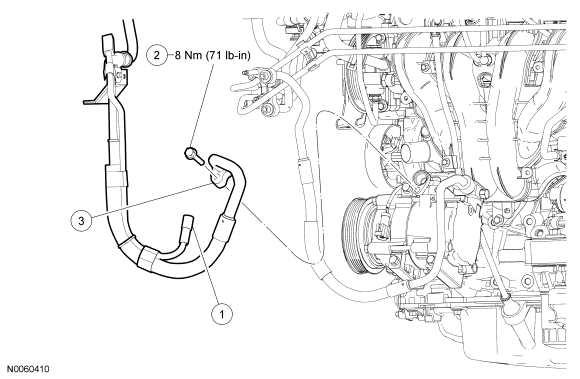

Fig 1: Exploded View Of Suction Line At Compressor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19B573	A/C compressor electrical connector
2	-	Compressor inlet fitting bolt
3	-	Compressor inlet fitting

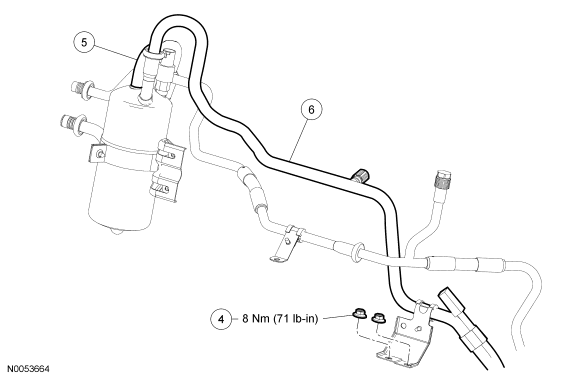

Fig 2: Exploded View Of Suction Line At Accumulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W707142	Suction accumulator-to-compressor line bracket nut (2 required)
5	-	Suction accumulator outlet Spring lock coupling
6	19867	Suction accumulator-to-compressor line
