Liftgate Module / Trunk Module Connector End View - C4081B

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

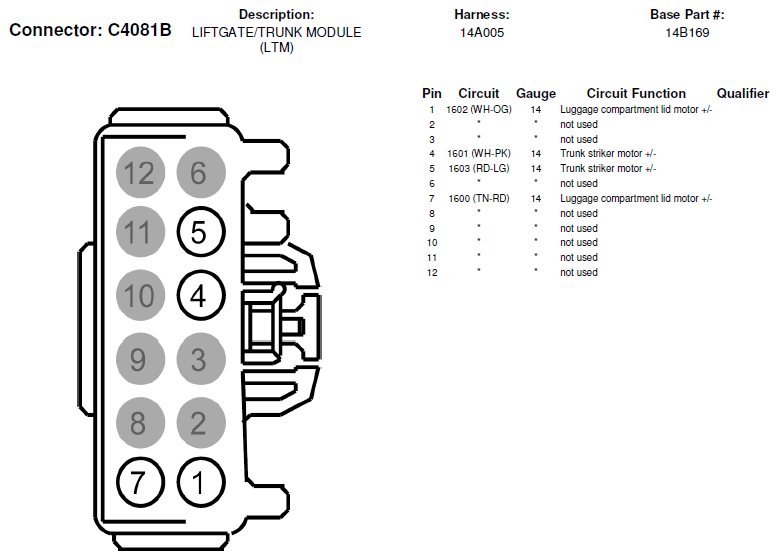

Fig 1: Liftgate Module / Trunk Module Connector End View (C4081B)
G06414396Courtesy of FORD MOTOR CO.
