Lighting Control Module Connector End View - C2145B

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

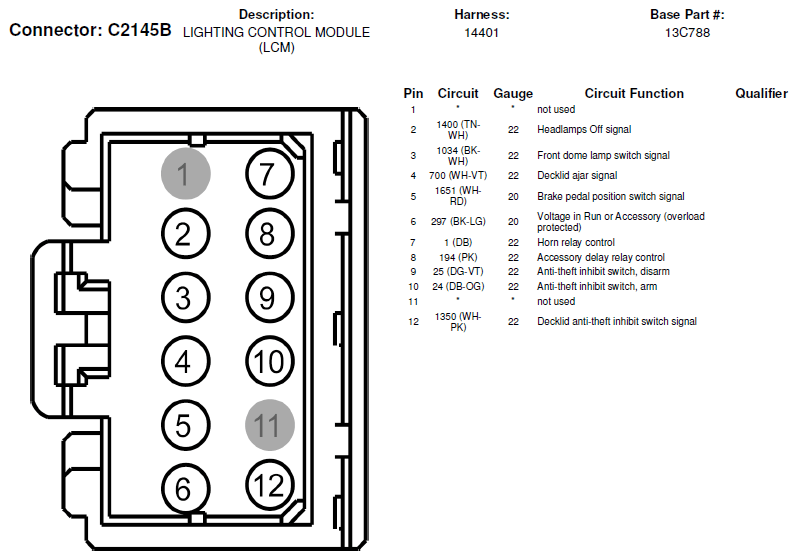

Fig 1: Lighting Control Module Connector End View (C2145B)
G06414356Courtesy of FORD MOTOR CO.
