Multifunction Switch Connector End View - C202A

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

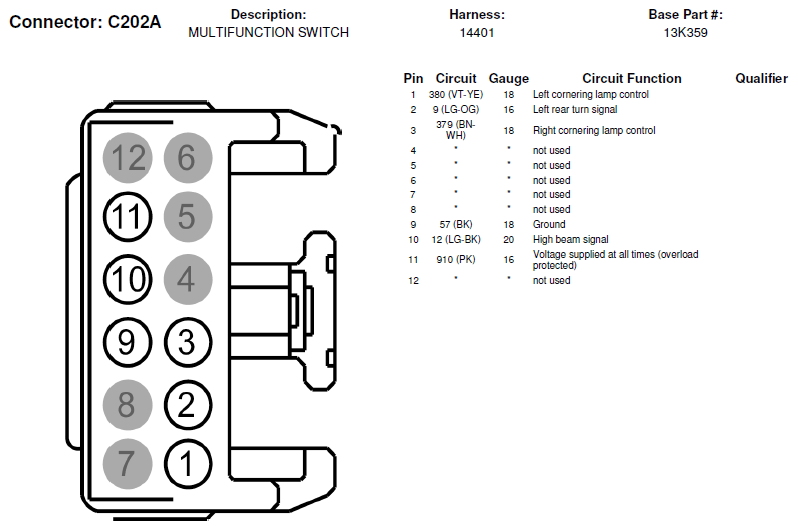

Fig 1: Multifunction Switch Connector End View (C202A)
G06414135Courtesy of FORD MOTOR CO.
