Powertrain Control Module Connector End View - C175B

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

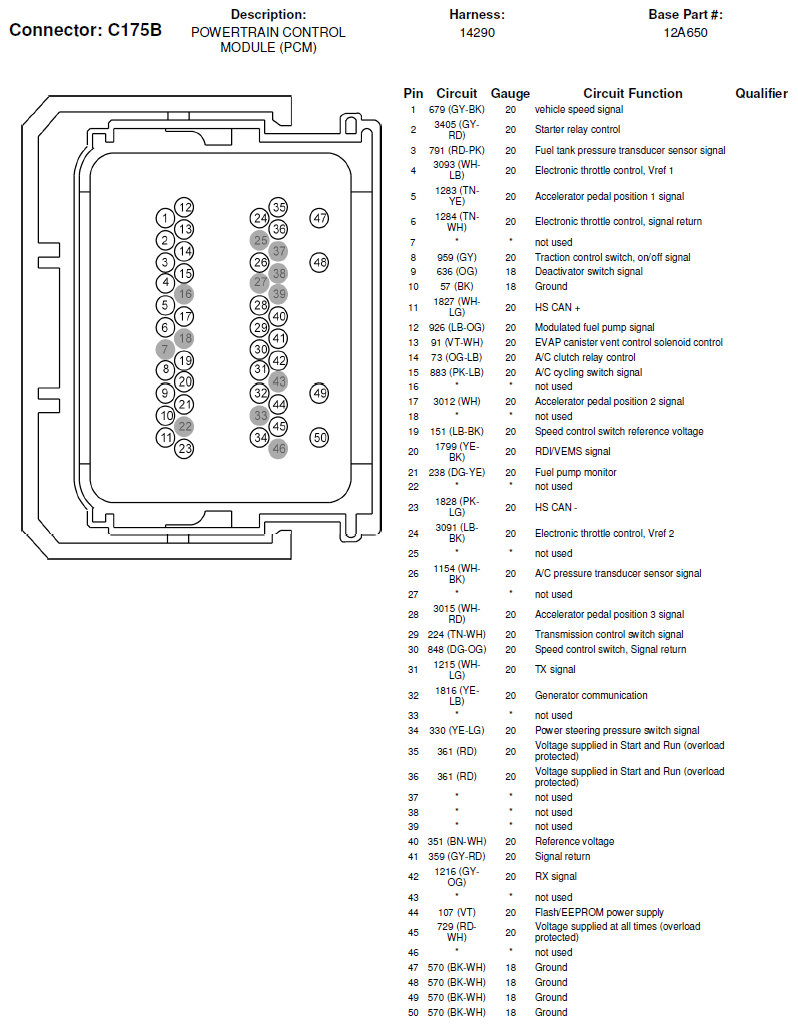

Fig 1: Powertrain Control Module Connector End View (C175B)
G06414120Courtesy of FORD MOTOR CO.
