Light Sensor: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

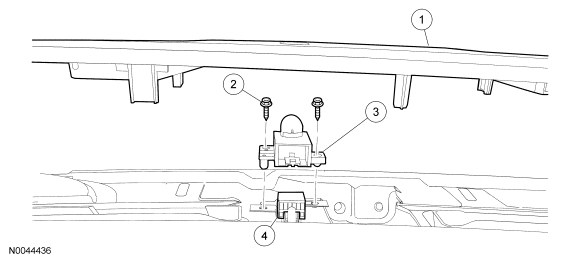

Fig 1: Identifying Light Sensor Components
GF0019100Courtesy of FORD MOTOR CO.
Item Part Number Description
1 54044E82 Defroster grille panel
2 - Light sensor screws (2 required)
3 13A018 Light sensor
4 - Light sensor electrical connector (part of 14401)
