Removal And Installation: Ballast: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

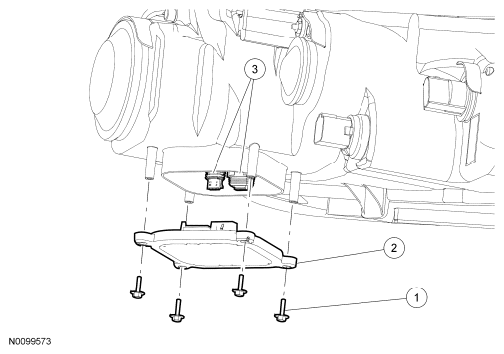

Fig 1: Identifying Ballast Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Ballast screws (4 required) (part of 13008)
2	13C170	Ballast
3	-	Ballast electrical connectors (part of 13008)
