Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

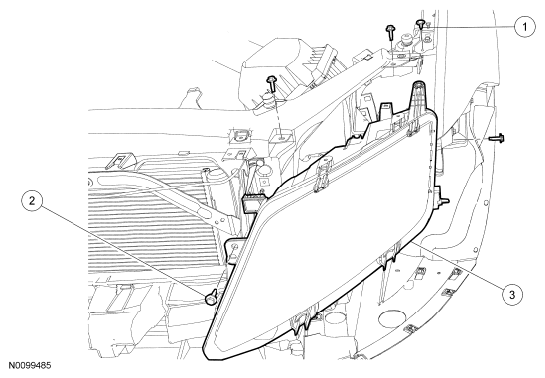

Fusion shown in the illustration, Milan and MKZ similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp assembly pin-type retainer (part of 13005) |
| 2 |
W711676 |
Headlamp assembly bolts (4 required) |
| 3 |
13008 |
Headlamp assembly |
