Anti-Lock Brake System (ABS) Module C135

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

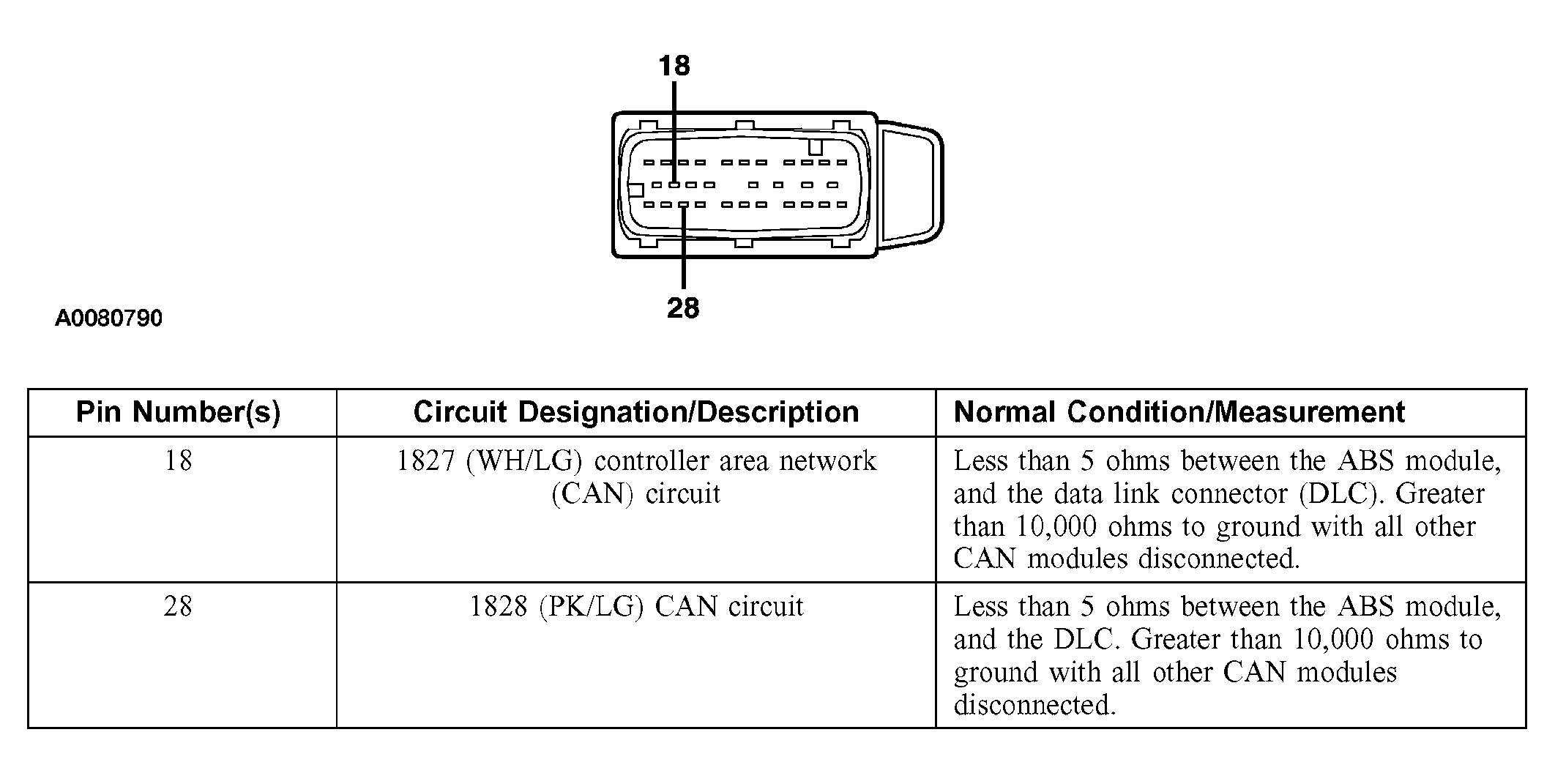

Fig 1: Identifying Anti-Lock Brake System Module C135 Connector Pins
G03965844Courtesy of FORD MOTOR CO.
