Electronic Automatic Temperature Control (EATC) Module C228b

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

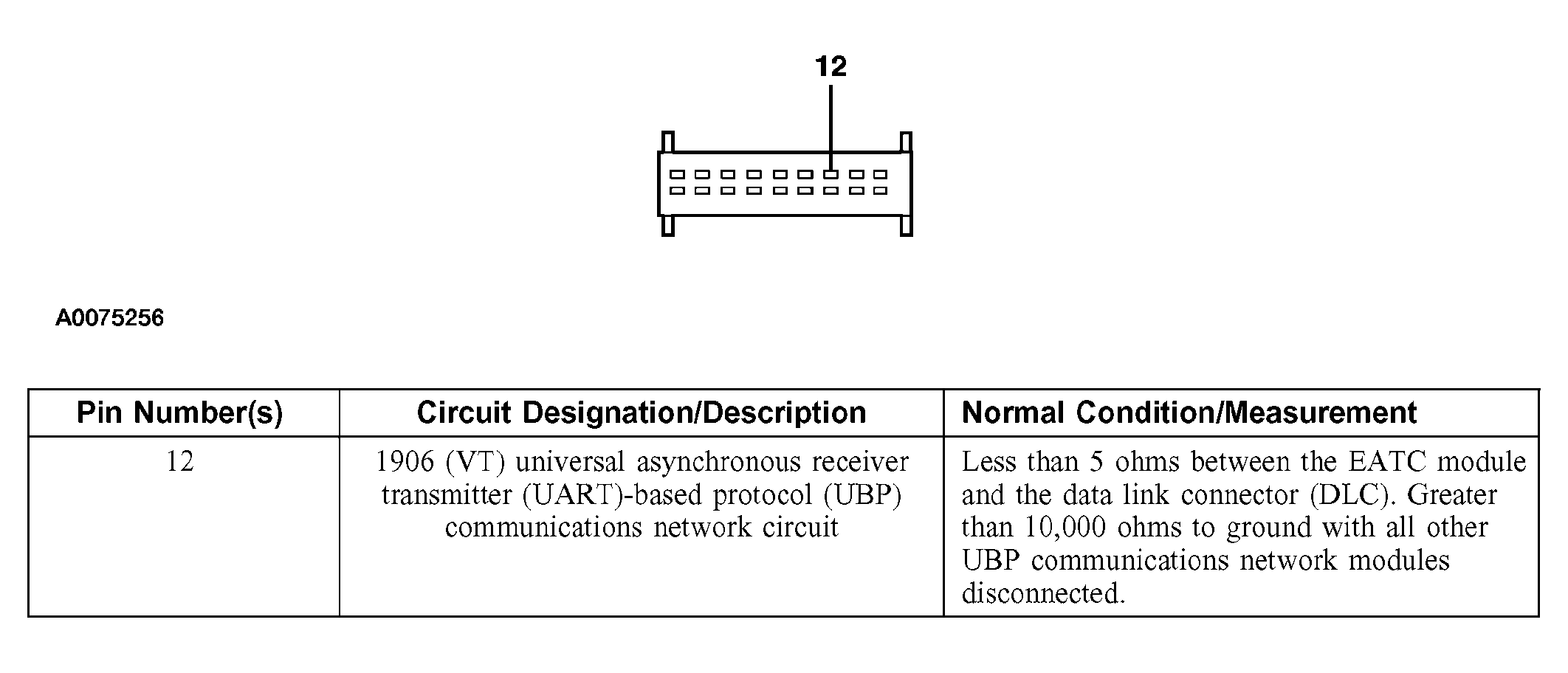

Fig 1: Identifying Electronic Automatic Temperature Control Module C228b Connector Pins
G03965847Courtesy of FORD MOTOR CO.
