Actuator - Speed Control Module: Removal

  1. Disconnect the battery ground cable.
  2. Remove the front seats. For additional information, refer to SEATING .
    3. NOTE: Left side shown, right side similar.

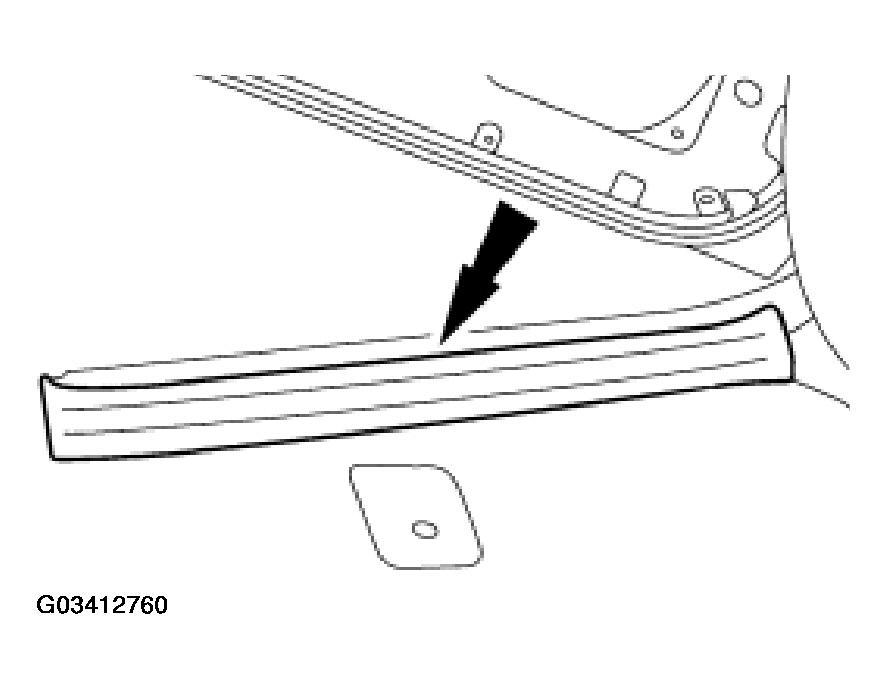

    Fig 1: Removing Right And Left Side Scuff Plates
    G03412760Courtesy of FORD MOTOR CO.
  3. Remove the right and left side scuff plates.
    4. NOTE: Left side shown, right side similar.

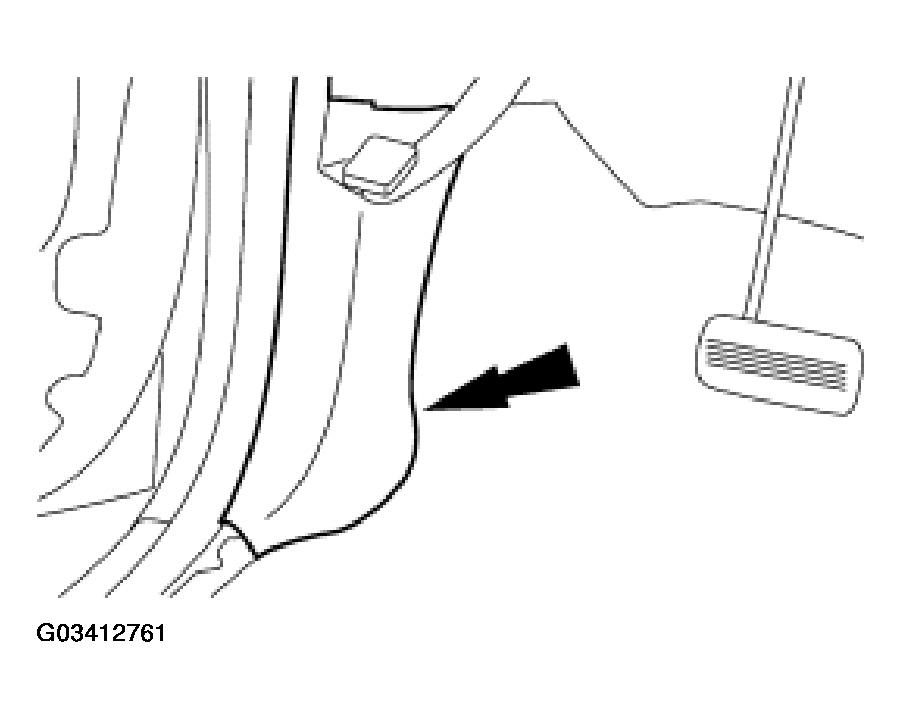

    Fig 2: Removing Right And Left Side A -Pillar Lower Trim Panels
    G03412761Courtesy of FORD MOTOR CO.
  4. Remove the right and left side A -pillar lower trim panels.
  5. Remove the console cover.
    1. Remove the four pin-type retainers.
    2. Remove the console cover.

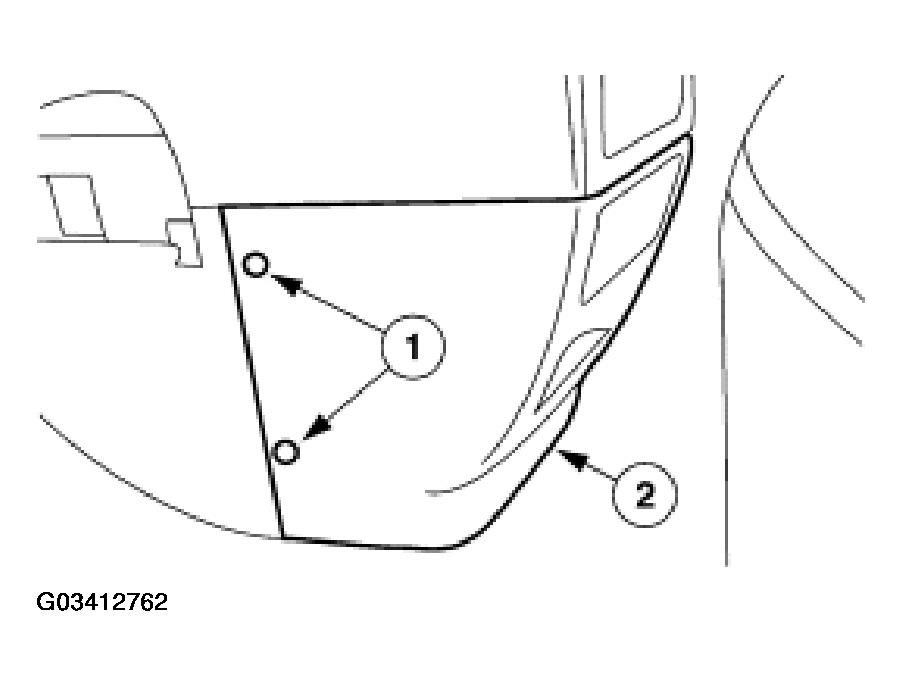

      Fig 3: Removing Console Cover
      G03412762Courtesy of FORD MOTOR CO.
    6. NOTE: Left side shown, right side similar.
  6. Remove the side kick panels.
    1. Remove the nut.
    2. Remove the screws.
    3. Remove the side kick panels.

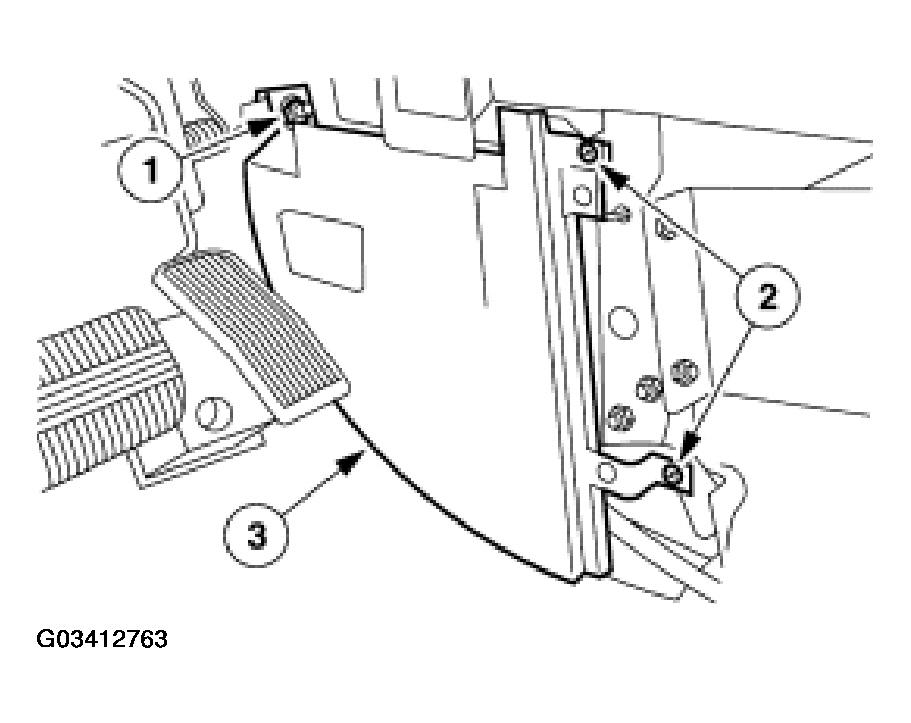

      Fig 4: Removing Side Kick Panels
      G03412763Courtesy of FORD MOTOR CO.
  7. Remove the accelerator stopper cover.
    1. Remove the accelerator stopper screw.
    2. Remove the accelerator stopper cover.

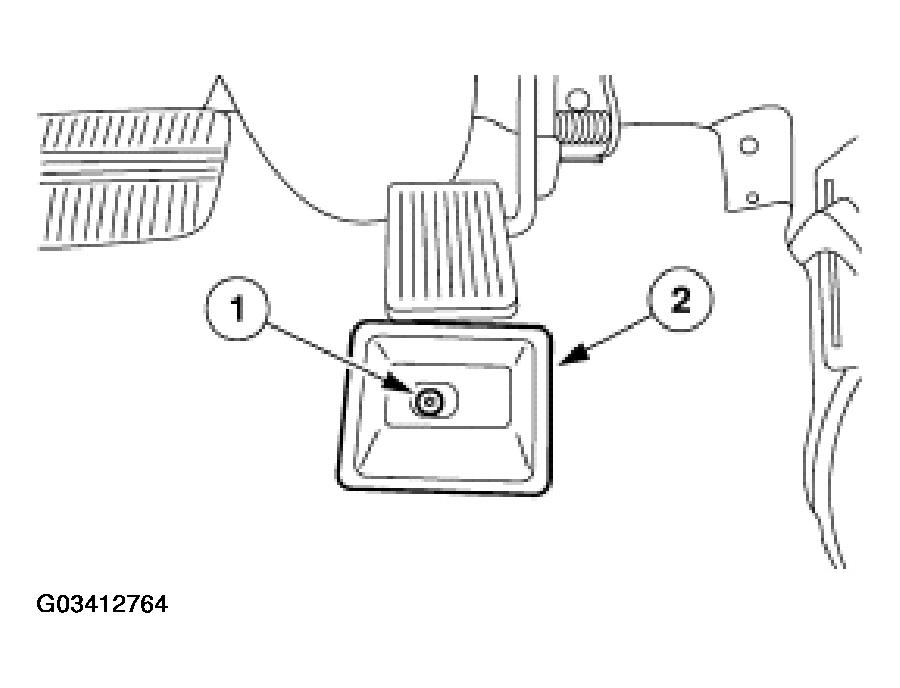

      Fig 5: Removing Accelerator Stopper Cover
      G03412764Courtesy of FORD MOTOR CO.
  8. Position aside the floor carpet.
    1. Remove the rear seat air flow duct bolts.
    2. Remove the rear seat air flow ducts.
    3. Position aside the front floor carpet.

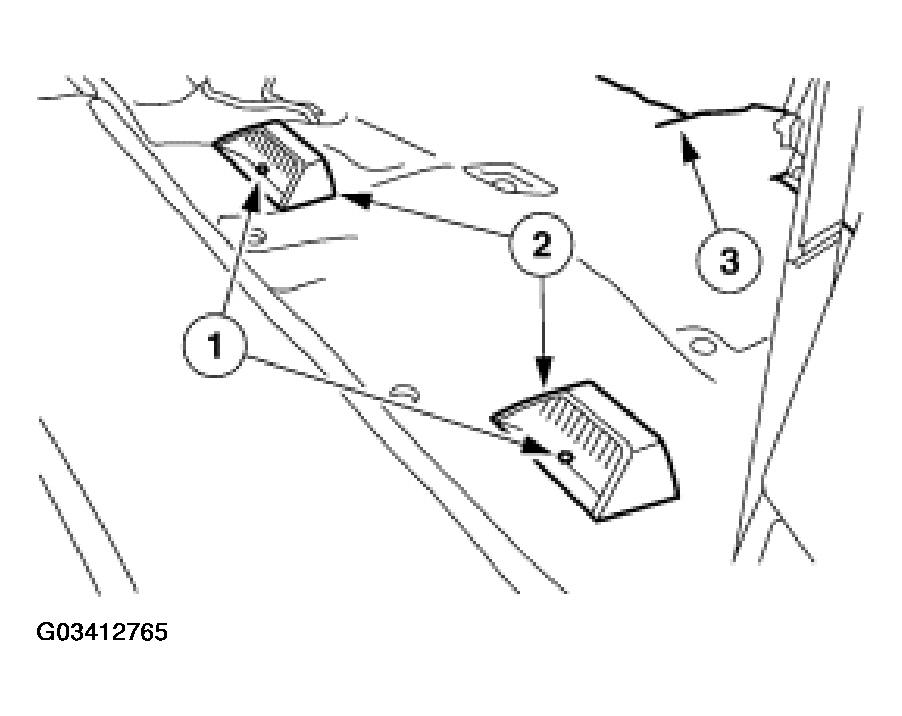

      Fig 6: Positioning Aside Floor Carpet
      G03412765Courtesy of FORD MOTOR CO.
  9. Remove the heat duct cover.
    1. Remove the ten bolts.
    2. Remove the heat duct cover.

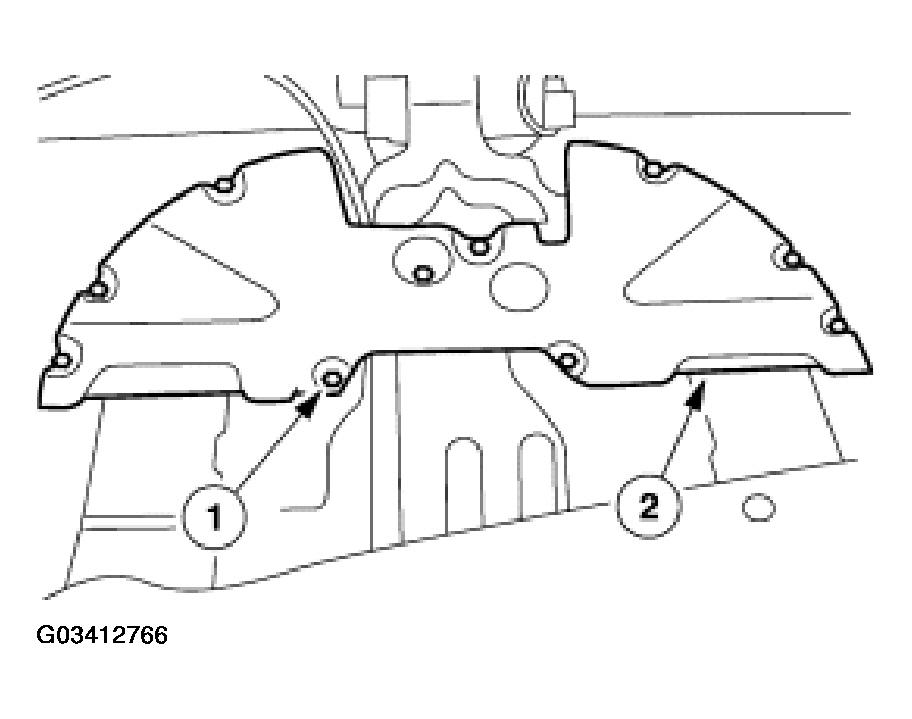

      Fig 7: Removing Heat Duct Cover
      G03412766Courtesy of FORD MOTOR CO.
  10. Remove the rear seat right duct.
    • Remove the screws.

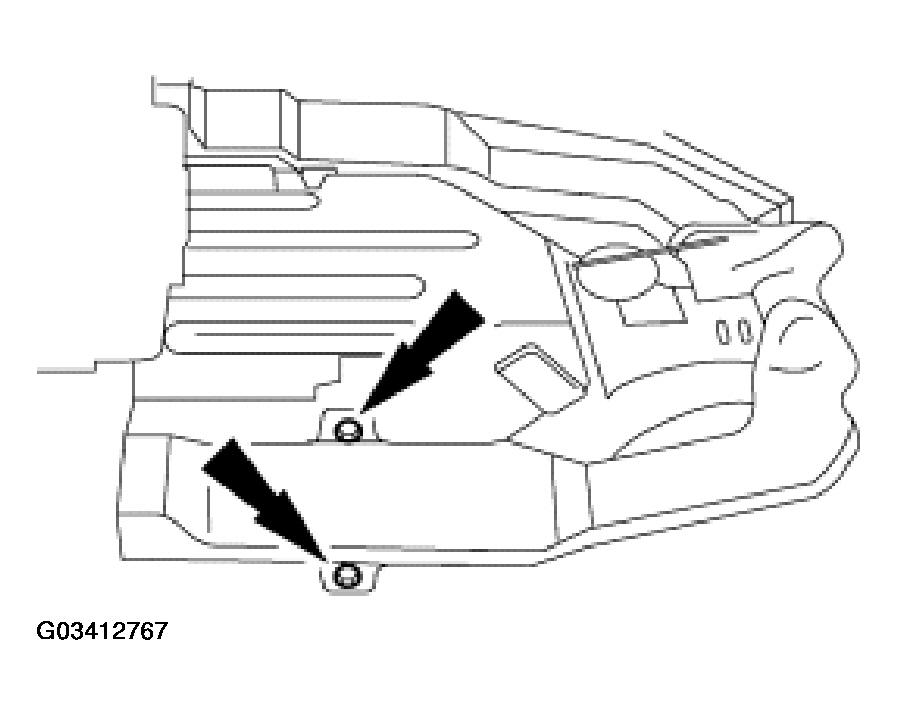

      Fig 8: Removing Rear Seat Right Duct
      G03412767Courtesy of FORD MOTOR CO.
  11. Remove the rear seat air flow outlet duct.
    1. Remove the screws.
    2. Remove the rear seat air flow outlet duct.

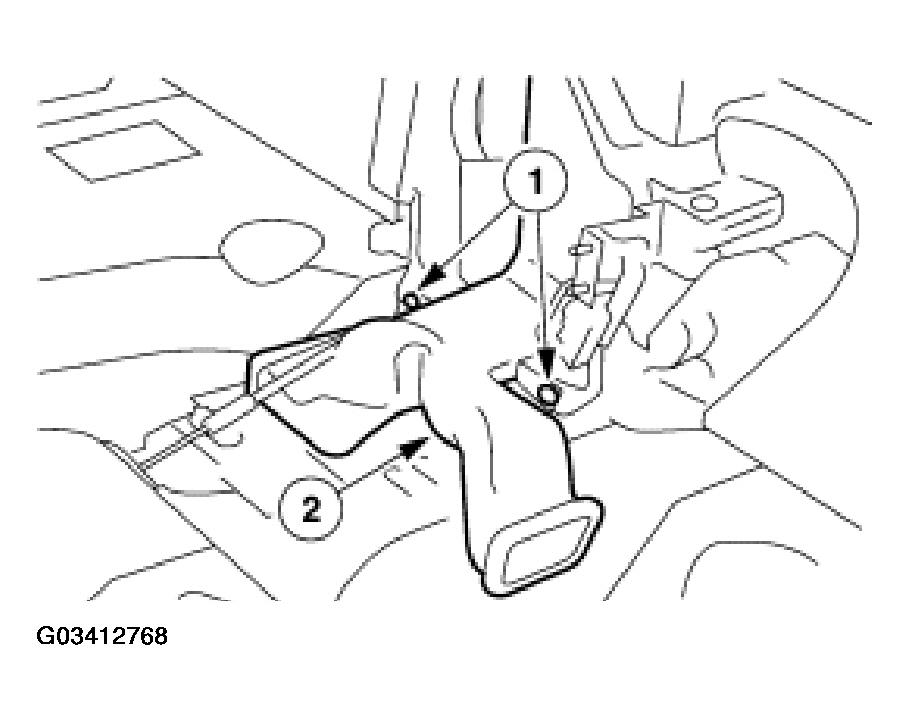

      Fig 9: Removing Rear Seat Air Flow Outlet Duct
      G03412768Courtesy of FORD MOTOR CO.
  12. Remove the speed control module.
    1. Remove the bolts.
    2. Disconnect the speed control actuator module electrical connector.

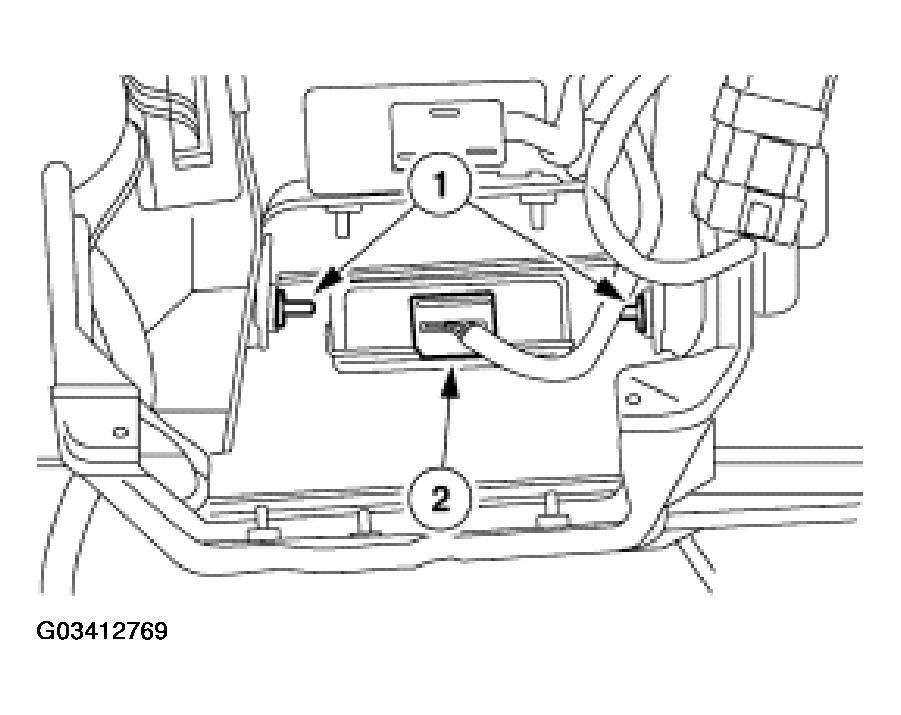

      Fig 10: Removing Speed Control Module
      G03412769Courtesy of FORD MOTOR CO.
