2-4 Servo
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
2-4 Servo

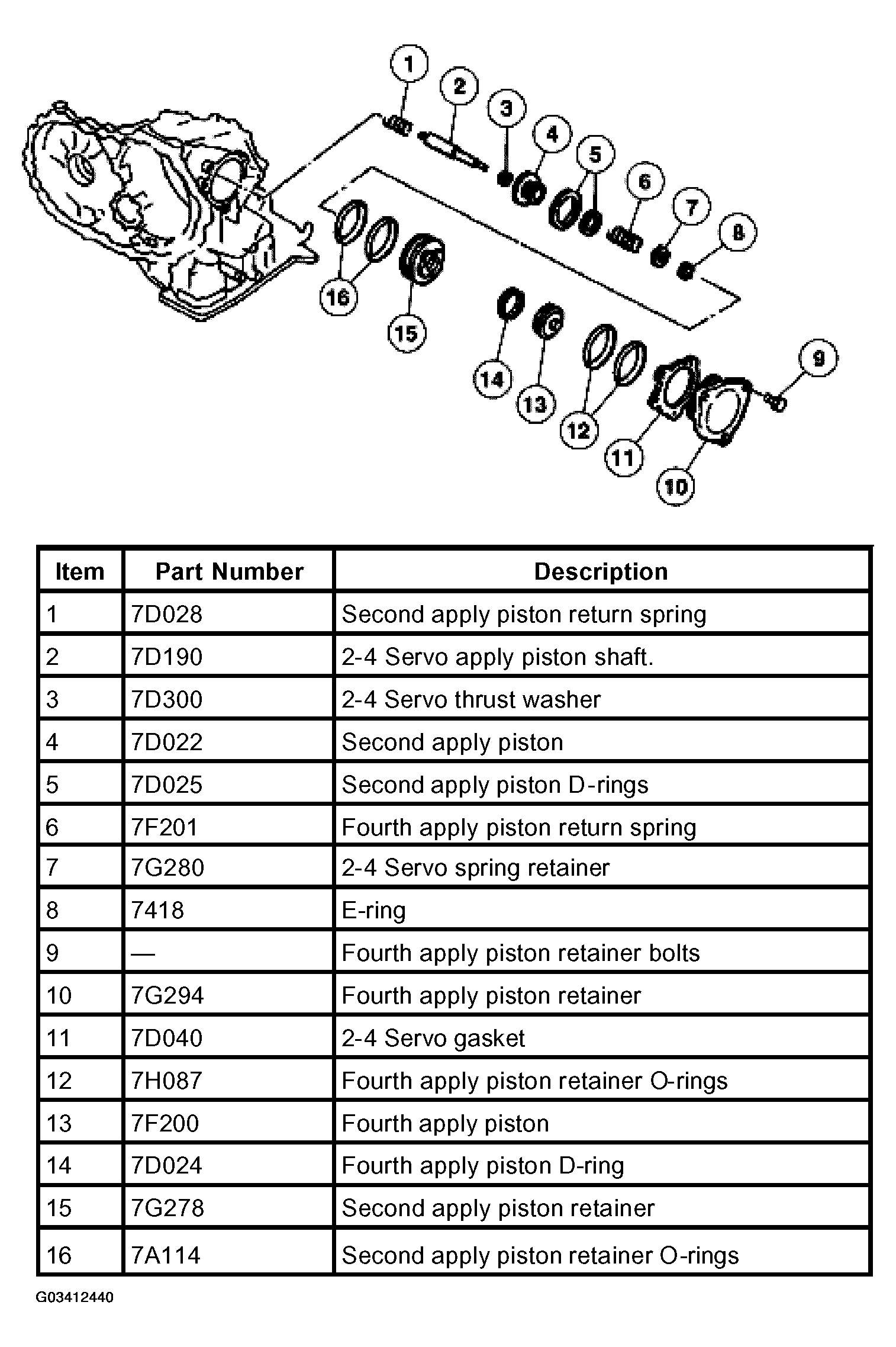

Fig 1: Identifying 2-4 Servo
Courtesy of FORD MOTOR CO.
