Cruise Control System

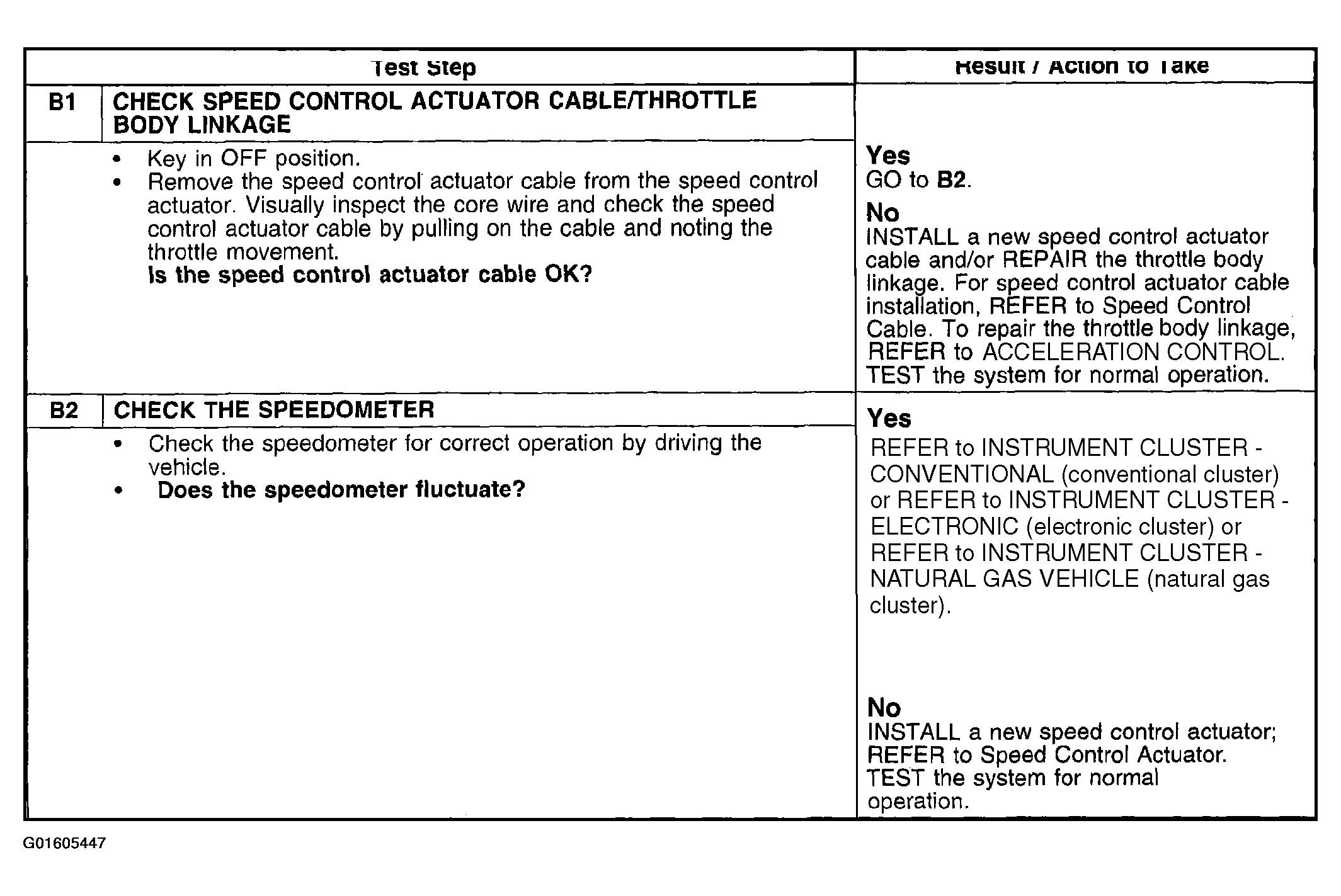

Fig 1: Pinpoint Test B: Set Speed Fluctuates

Courtesy of FORD MOTOR CO.

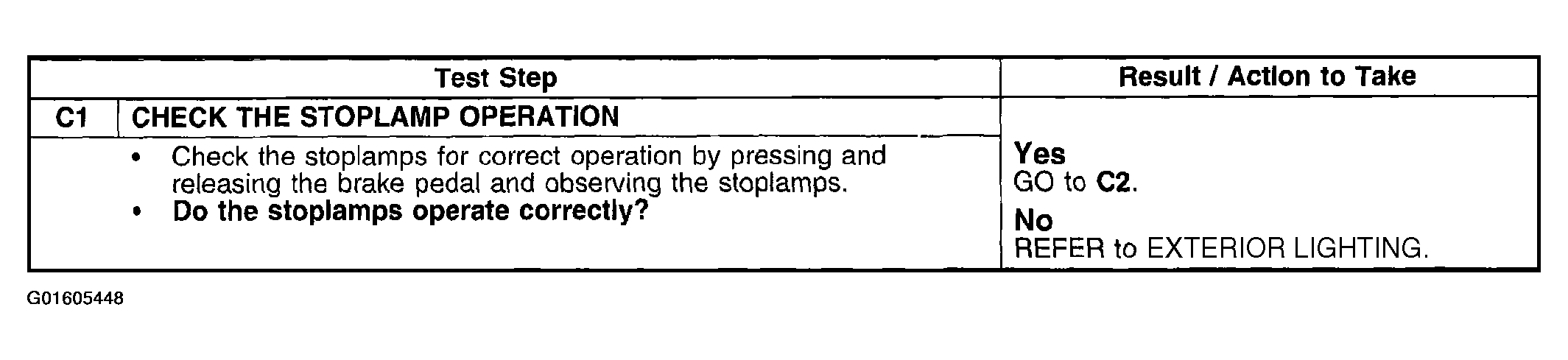

Fig 1: Pinpoint Test C: The Speed Control Does Not Disengage When The Brakes Are Applied (C1)

Courtesy of FORD MOTOR CO.

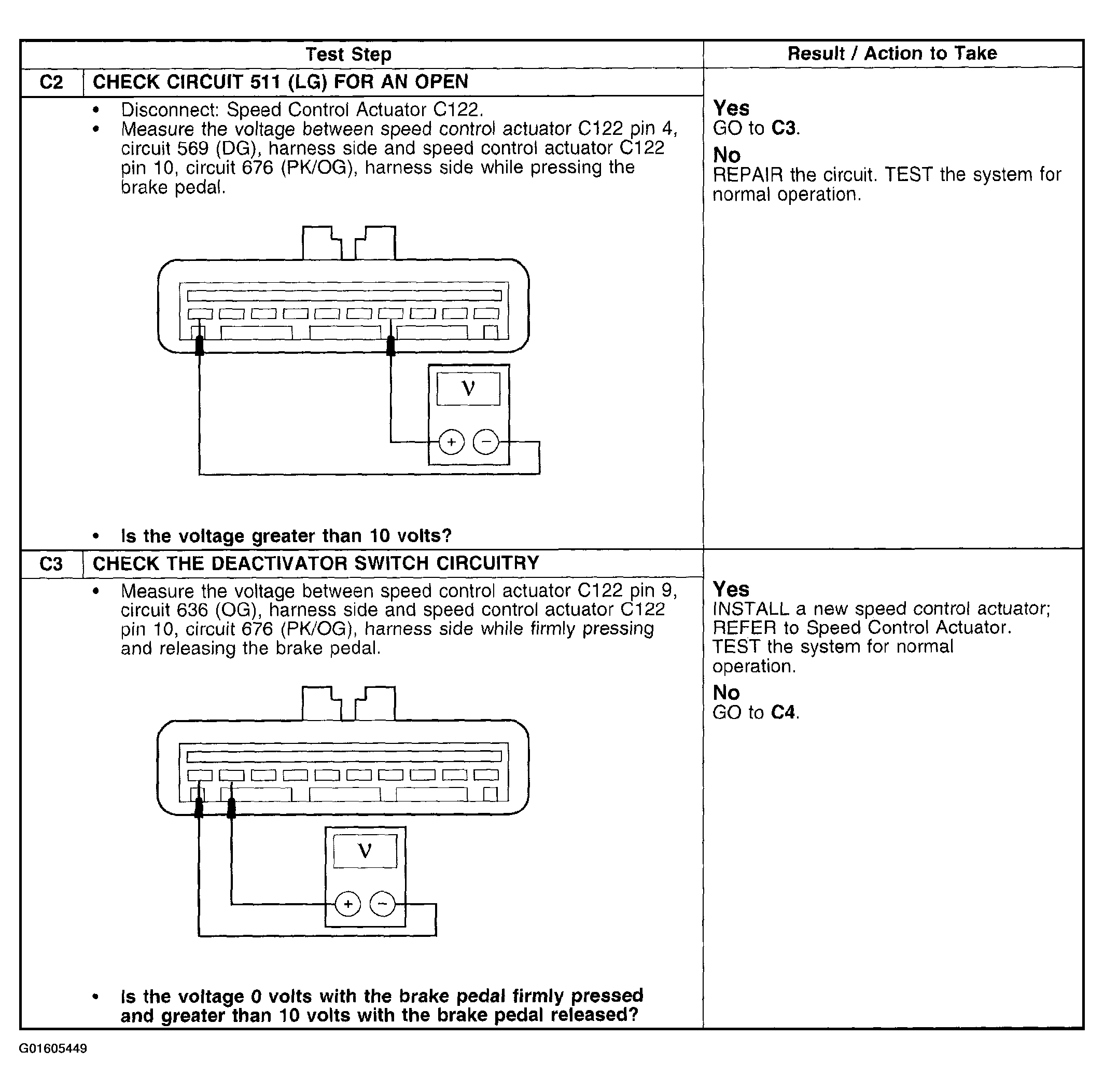

Fig 2: Pinpoint Test C: The Speed Control Does Not Disengage When The Brakes Are Applied (C2-C3)

Courtesy of FORD MOTOR CO.

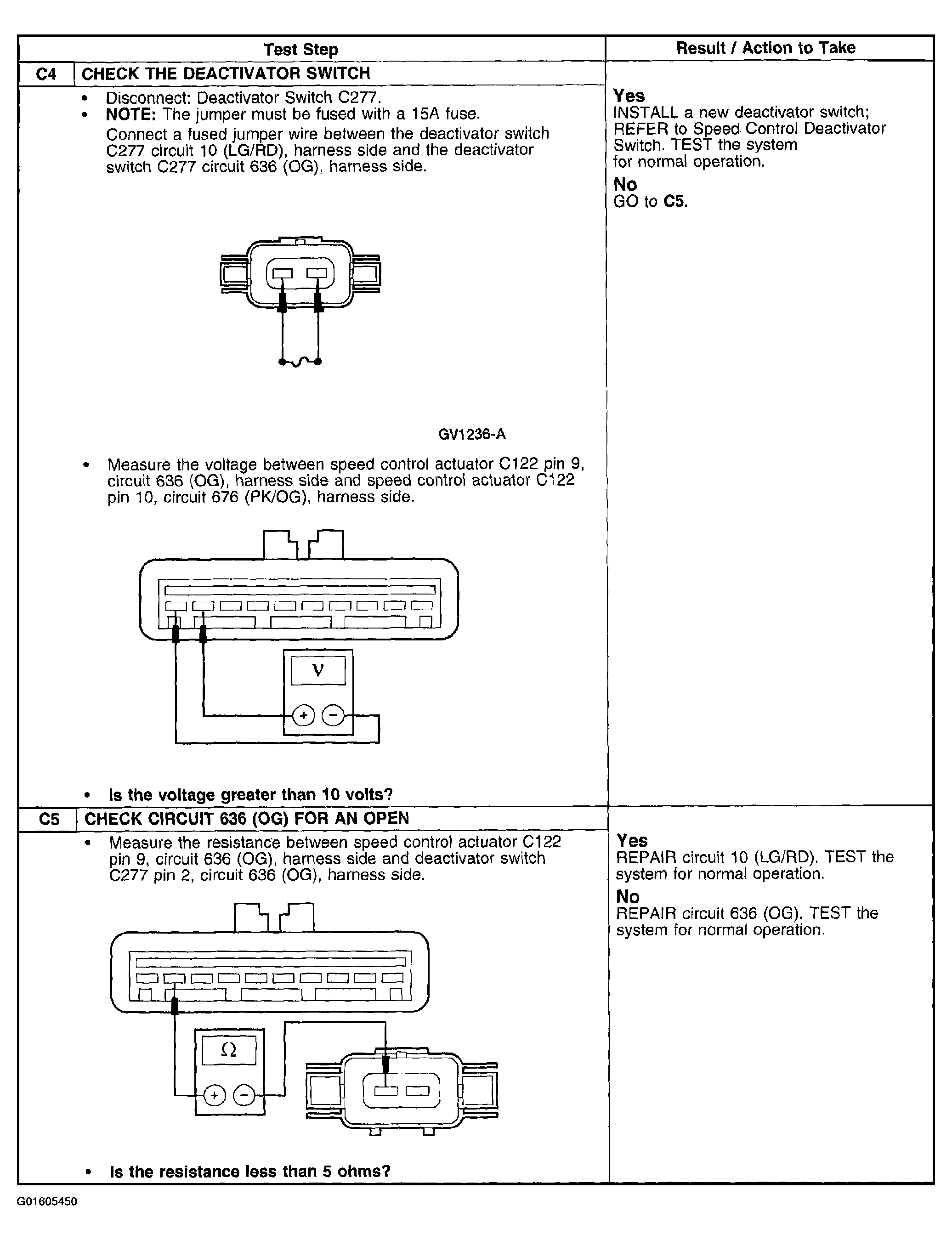

Fig 3: Pinpoint Test C: The Speed Control Does Not Disengage When The Brakes Are Applied (C4-C5)

Courtesy of FORD MOTOR CO.
