Pinpoint Test F: No Communication With Module-Anti-Lock Brake Control Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

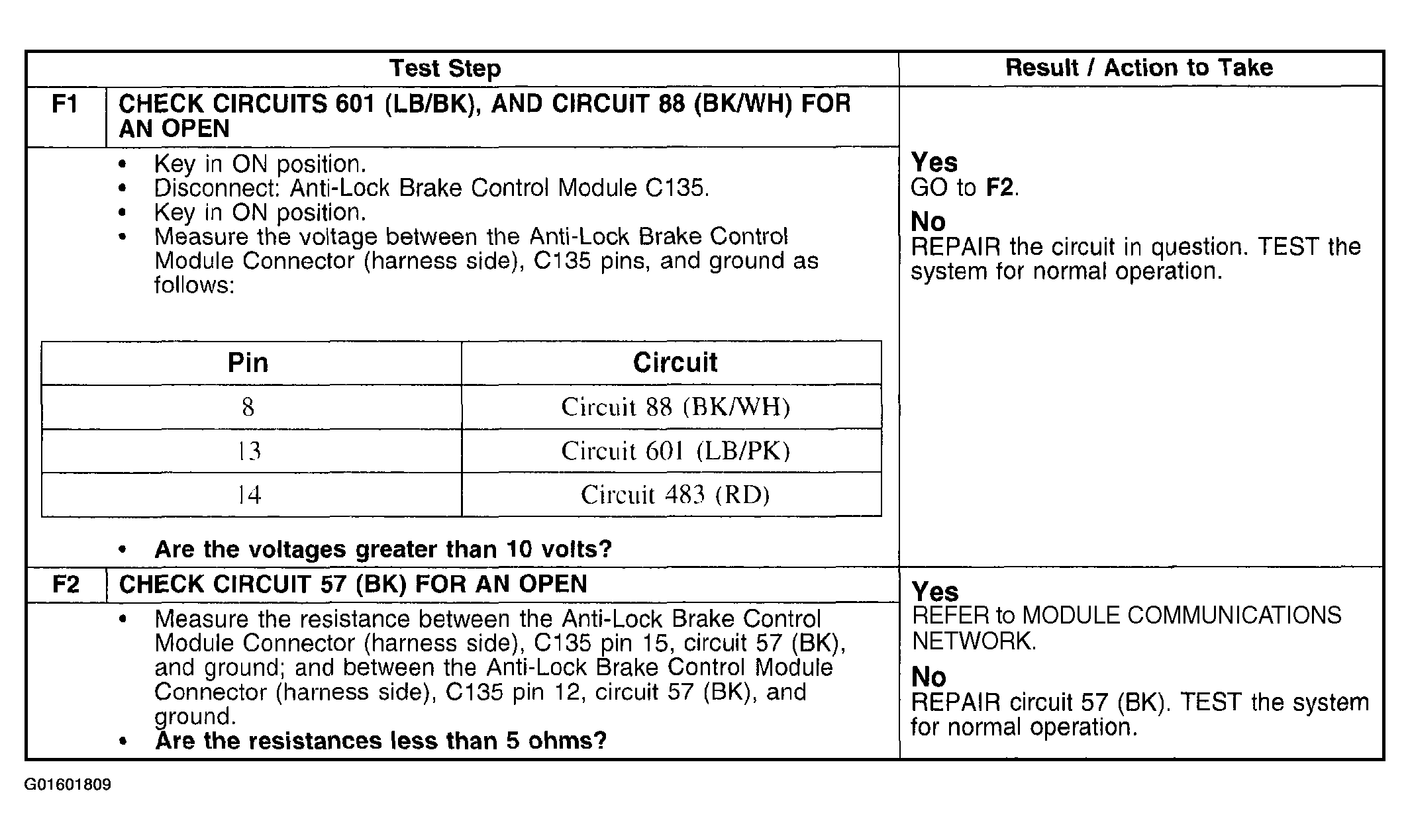

Fig 1: Pinpoint Test F: No Communication With Module-Anti-Lock Brake Control Module

Courtesy of FORD MOTOR CO.
