Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

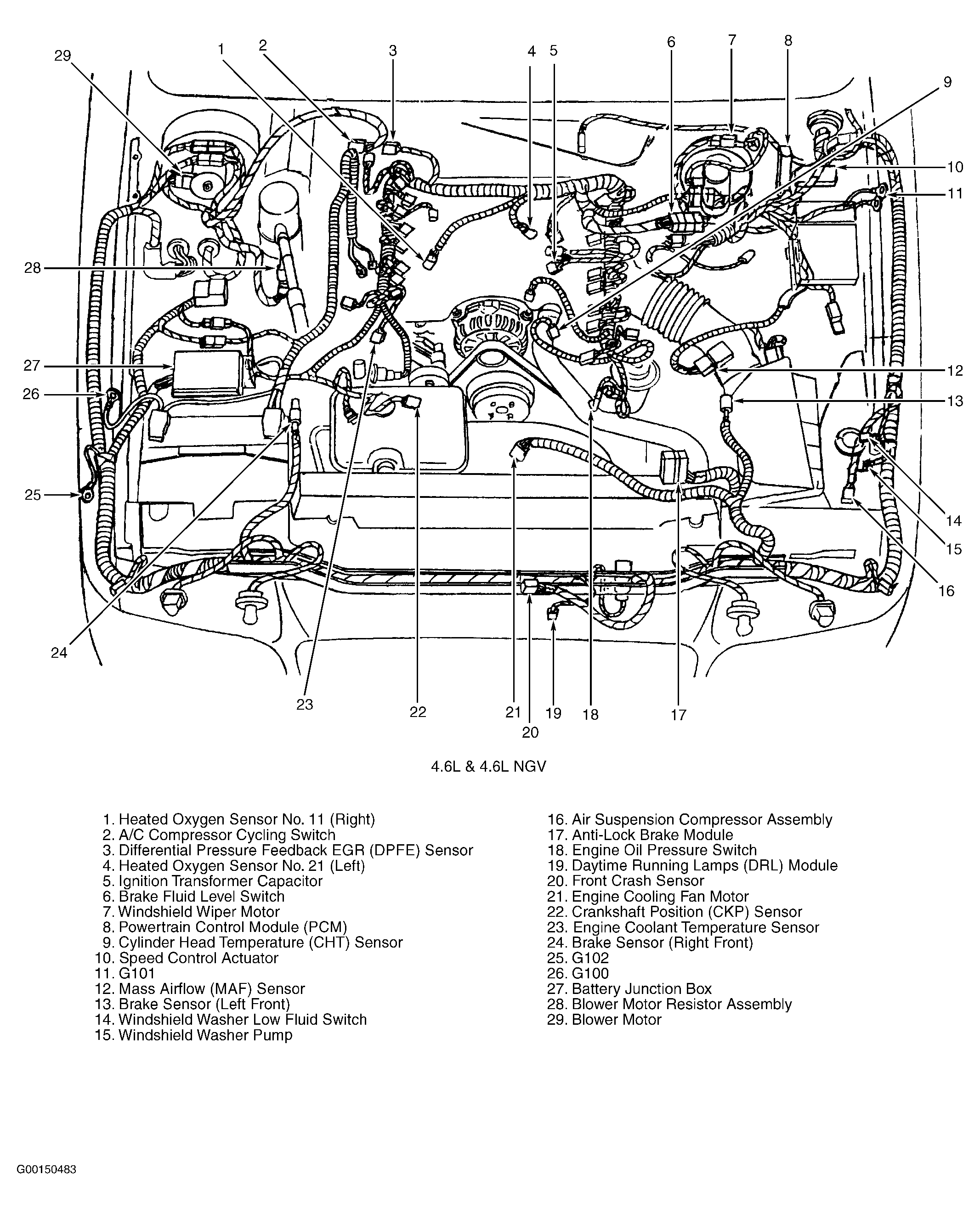

| Battery Junction Box | In right front of engine compartment, behind battery. See Figure. |

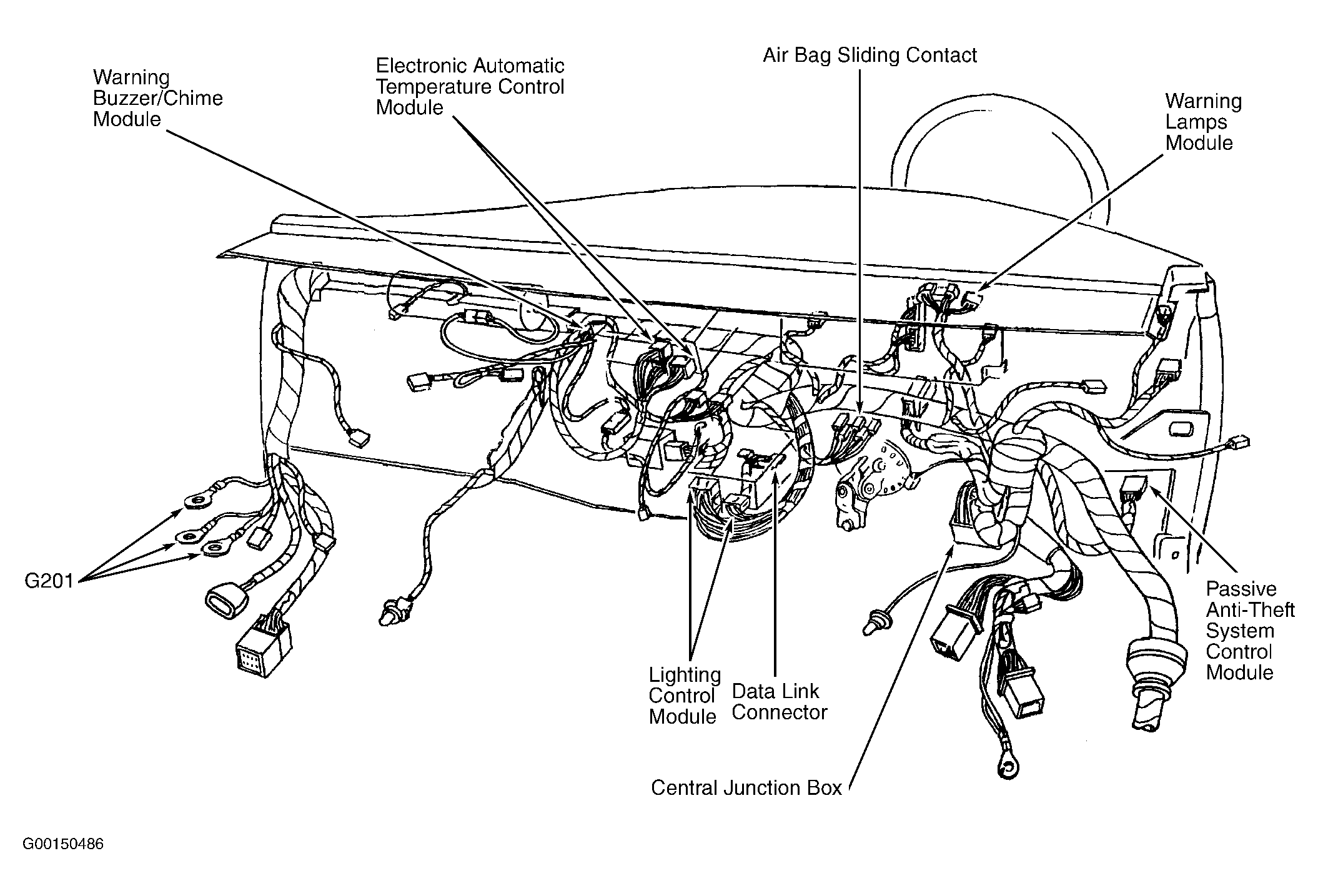

| Central Junction Box | Below dash, left of steering column. See Figure. |
| Emergency Flasher Relay Block | In left rear of trunk. |
| Fusible Link A | In right center of engine compartment. |
| Fusible Link B | In right center of engine compartment. |
| Police Auxiliary Junction Box (Front) | Behind center of dash. |
| Police Auxiliary Junction Box (Rear) | Behind bottom center of rear seats. |
