Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Suspension Module | Behind right side of dash, above glove box. |
| Anti-Lock Brake Module | On left front of upper radiator support. See Figure. |
| Blower Motor Speed Controller | On right rear side of engine compartment. |
| Daytime Running Lamps (DRL) Module | On front of upper radiator support. See Figure. |
| Driver Door Module | Bottom front of left front door. |
| Electronic Automatic Temperature Control Module | Behind center of dash. See Figure. |

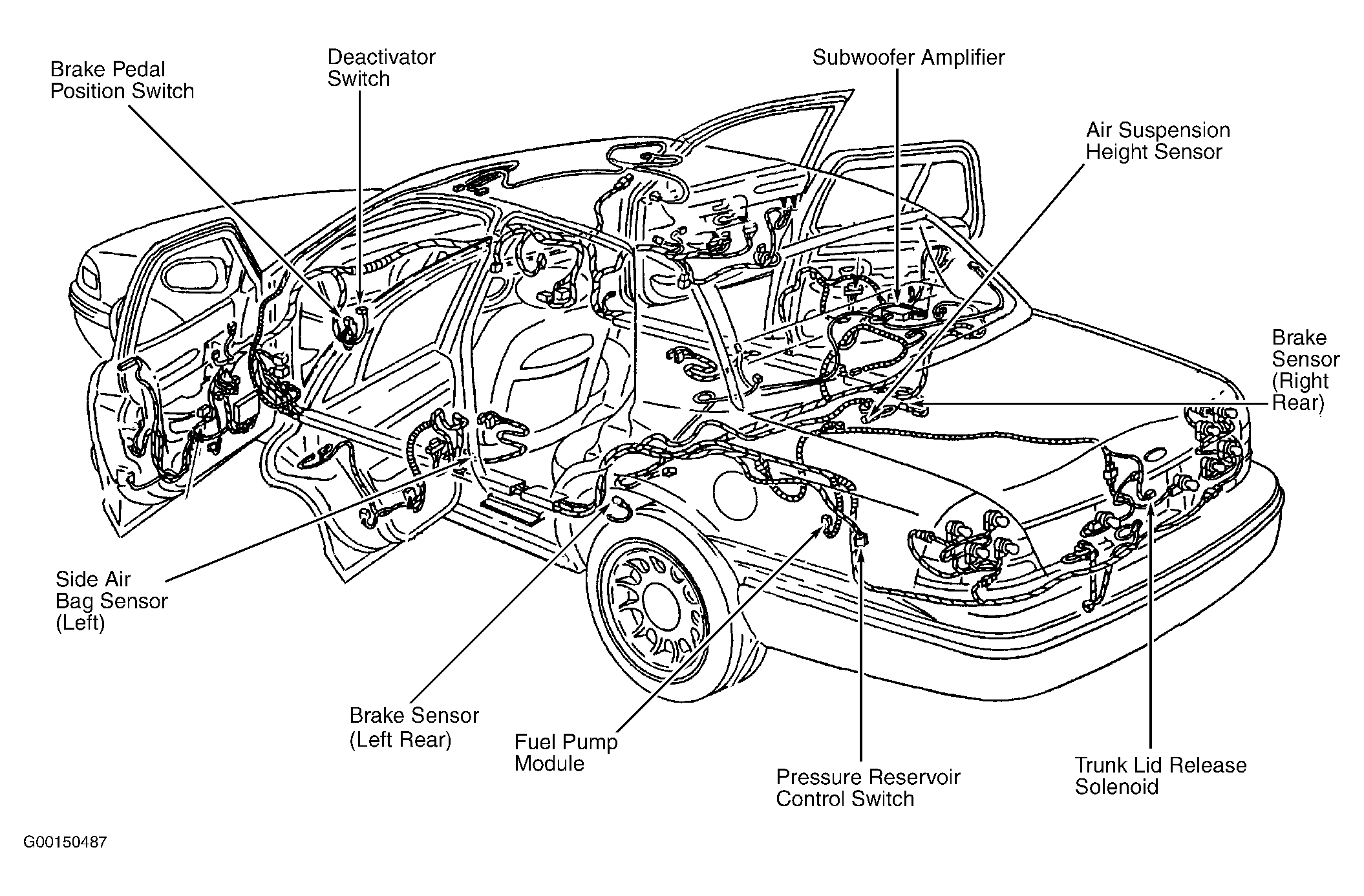

| Fuel Pump Module | On left front side of trunk. See Figure. |
| Lighting Control Module | Behind center of dash. See Figure. |

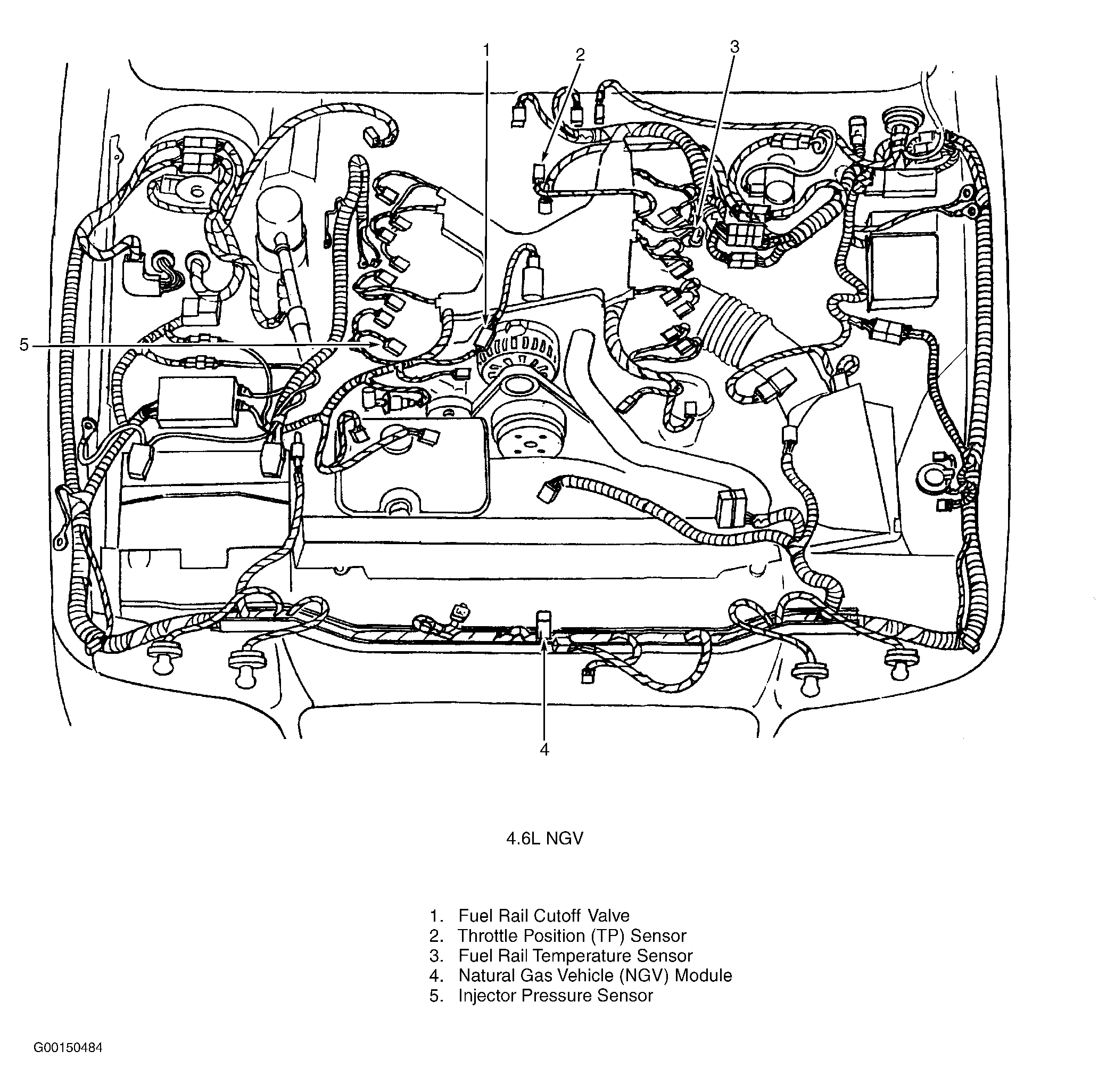

| Natural Gas Vehicle (NGV) Module (4.6L NGV) | On front of radiator support. See Figure. |
| Occupant Classification Sensor Module | Under passenger seat. |
| Passive Anti-Theft System Control Module | Behind left side of dash. See Figure. |
| Powertrain Control Module (PCM) | In engine compartment, on left side of firewall. See Figure. |
| Restraints Control Module | In left front footwell. |
| Variable Assist Power Steering Module | Behind right side of dash, above glove box. |
| Warning Buzzer/Chime Module | Behind center of dash. See Figure. |
| Warning Lamps Module | Behind left side of dash. See Figure. |
| Wig Wag Module | On right front side of engine compartment. |
