Torque Specifications

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

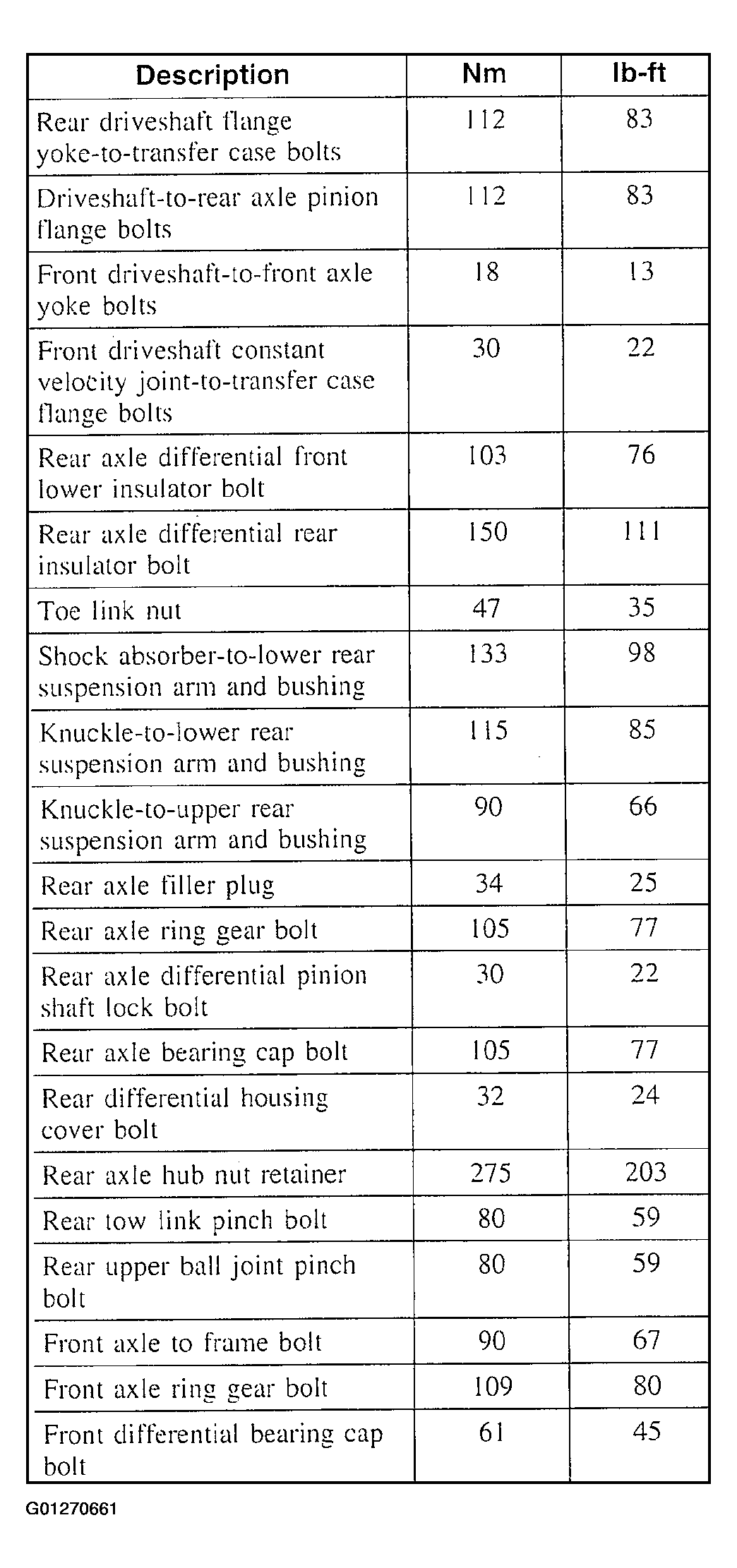

Fig 1: Torque Specifications Table (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Torque Specifications Table (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Torque Specifications Table (3 Of 3)

Courtesy of FORD MOTOR CO.
