Removal and Installation: Notes
WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.
CAUTION:
Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
CAUTION:
Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.
NOTE:
When installing a new ABS module it must be configured (using vehicle as- built data) and calibrated. Follow the scan tool directions for the configuration and calibration procedures. For additional information, refer to
MODULE COMMUNICATIONS NETWORK
.
- Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .

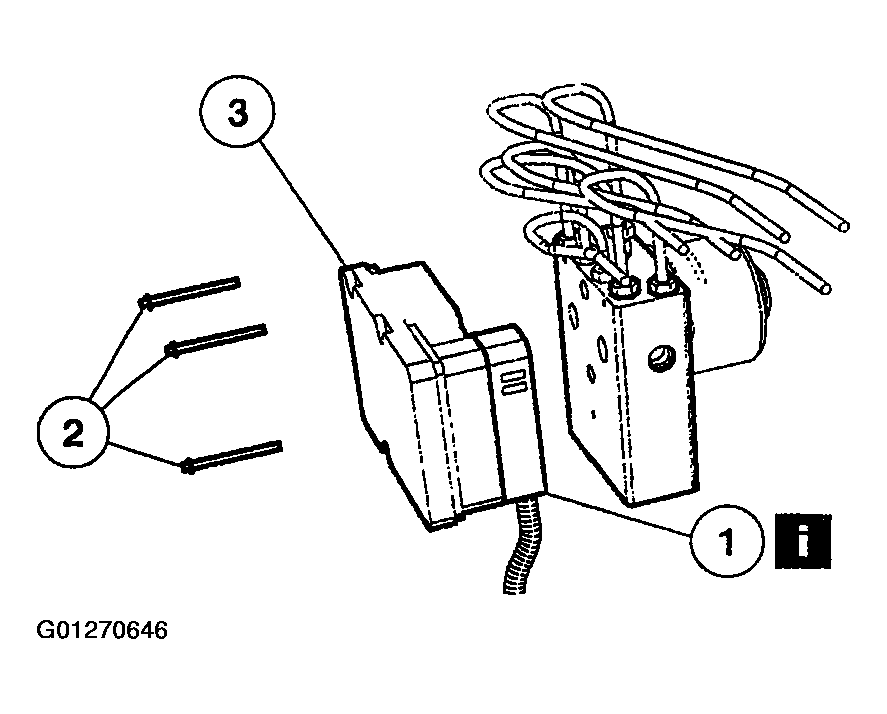

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
