Parking Aid Module C4014
WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

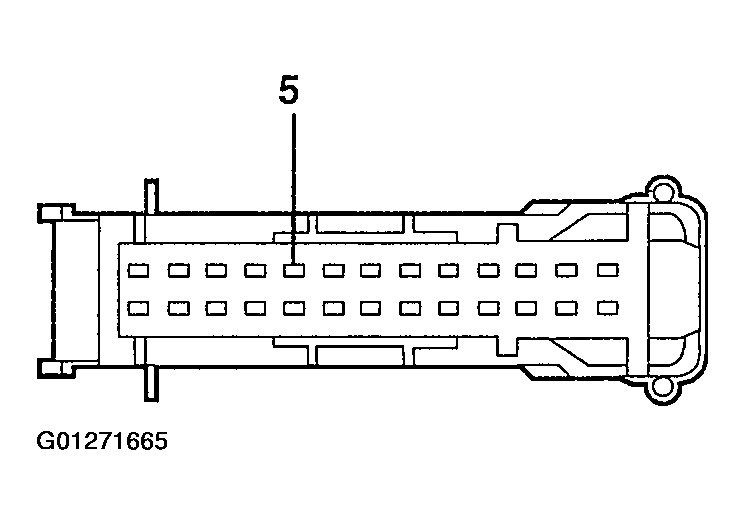

Fig 1: Identifying Parking Aid Module Connector Terminals (C4014)
Courtesy of FORD MOTOR CO.

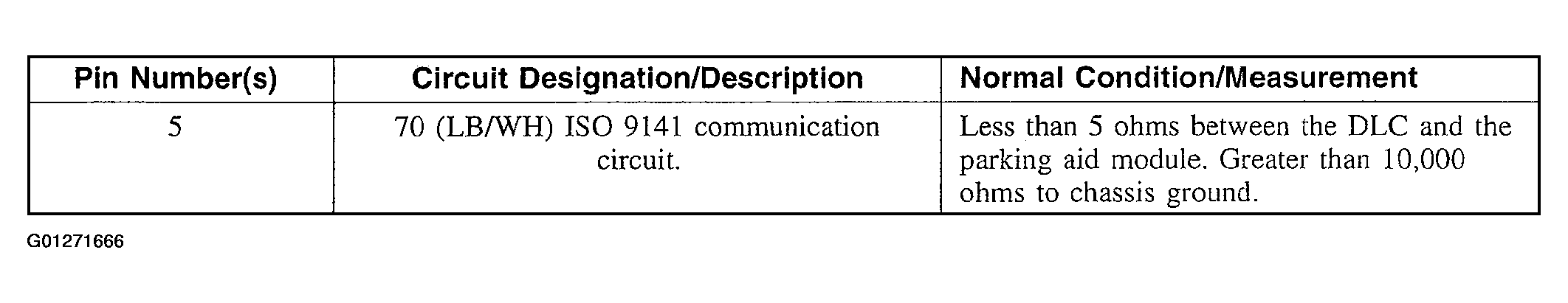

Fig 2: Parking Aid Module Connector Terminals Reference Chart (C4014)
