Driver Seat Module (DSM) C341g

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

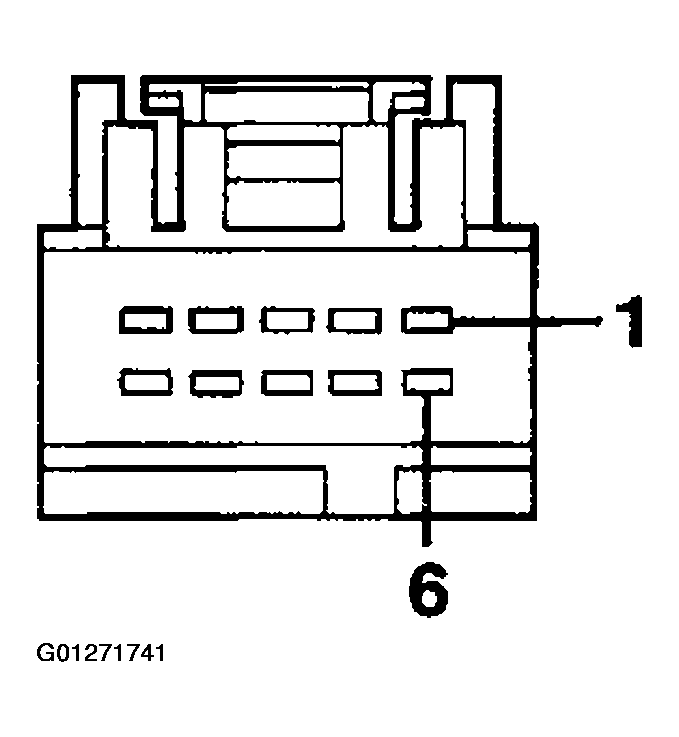

Fig 1: Identifying Driver Seat Module Connector Terminals (DSM) (C341G)

Courtesy of FORD MOTOR CO.

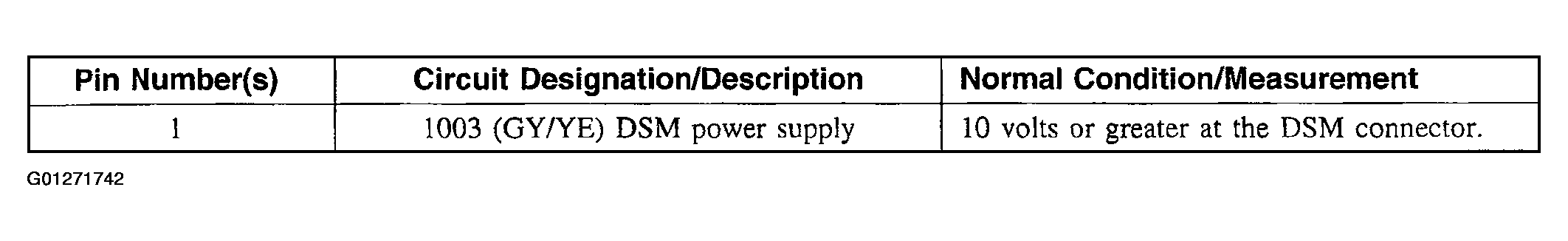

Fig 2: Driver Seat Module Connector Terminals Reference Chart (DSM, C341G) (1 Of 2)

Courtesy of FORD MOTOR CO.

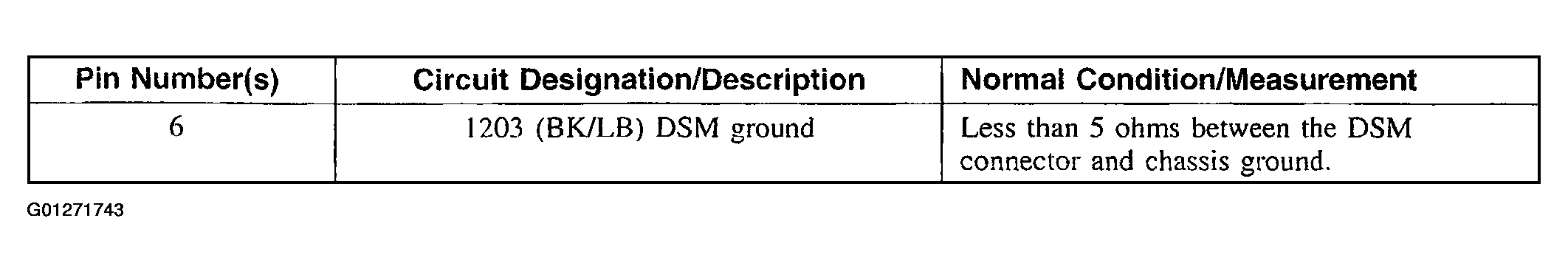

Fig 3: Driver Seat Module Connector Terminals Reference Chart (DSM, C341G) (2 Of 2)

Courtesy of FORD MOTOR CO.
