Pinpoint Test Q: No Communication With The Vehicle Security Module: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

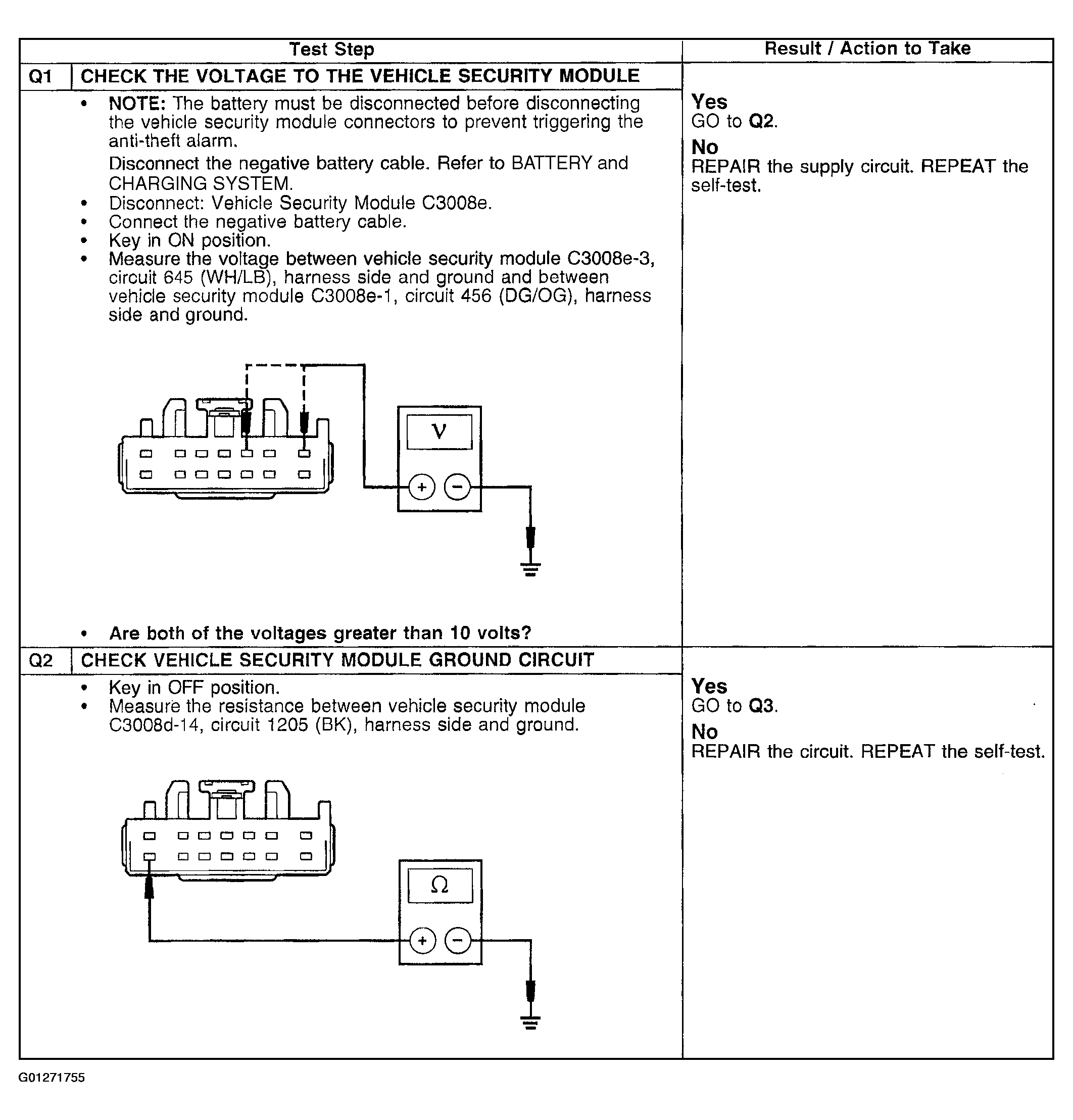

Fig 1: Pinpoint Test Q No Communication With Vehicle Security Module (Q1 - Q2)

Courtesy of FORD MOTOR CO.

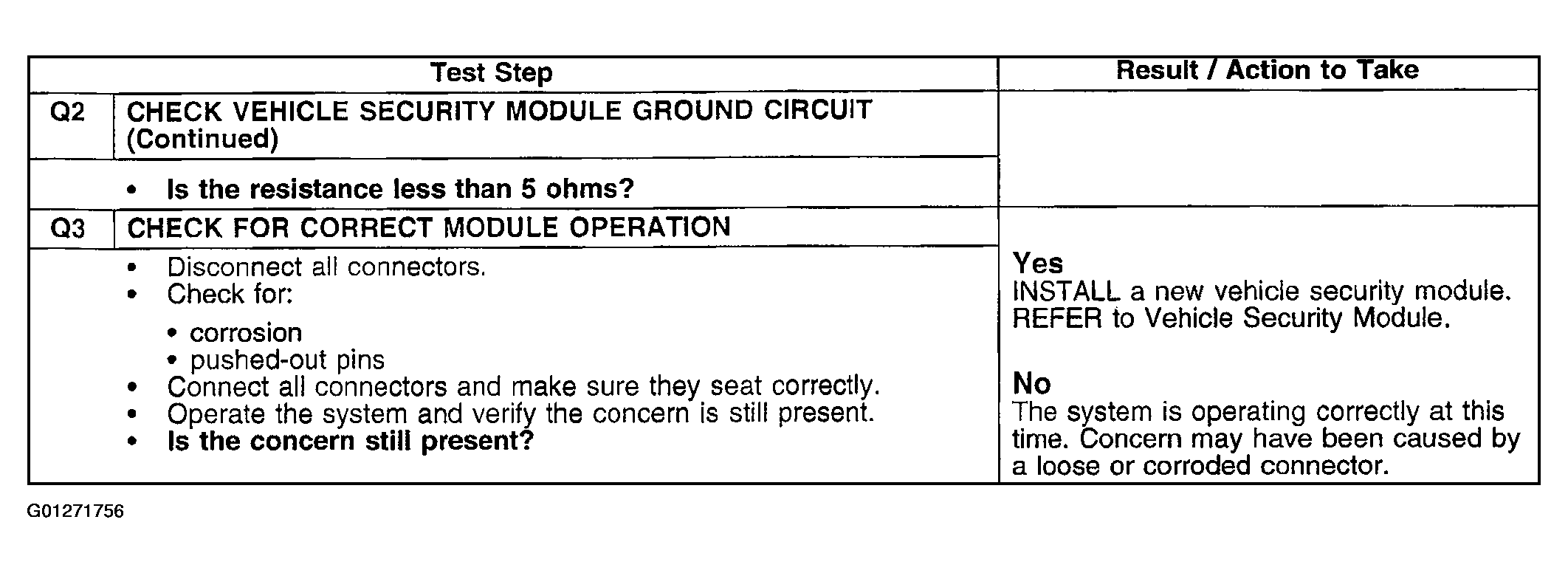

Fig 2: Pinpoint Test Q No Communication With Vehicle Security Module (Q2 - Q3)

Courtesy of FORD MOTOR CO.
