Passive Anti-Theft System (Pats) Transceiver

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration and table.

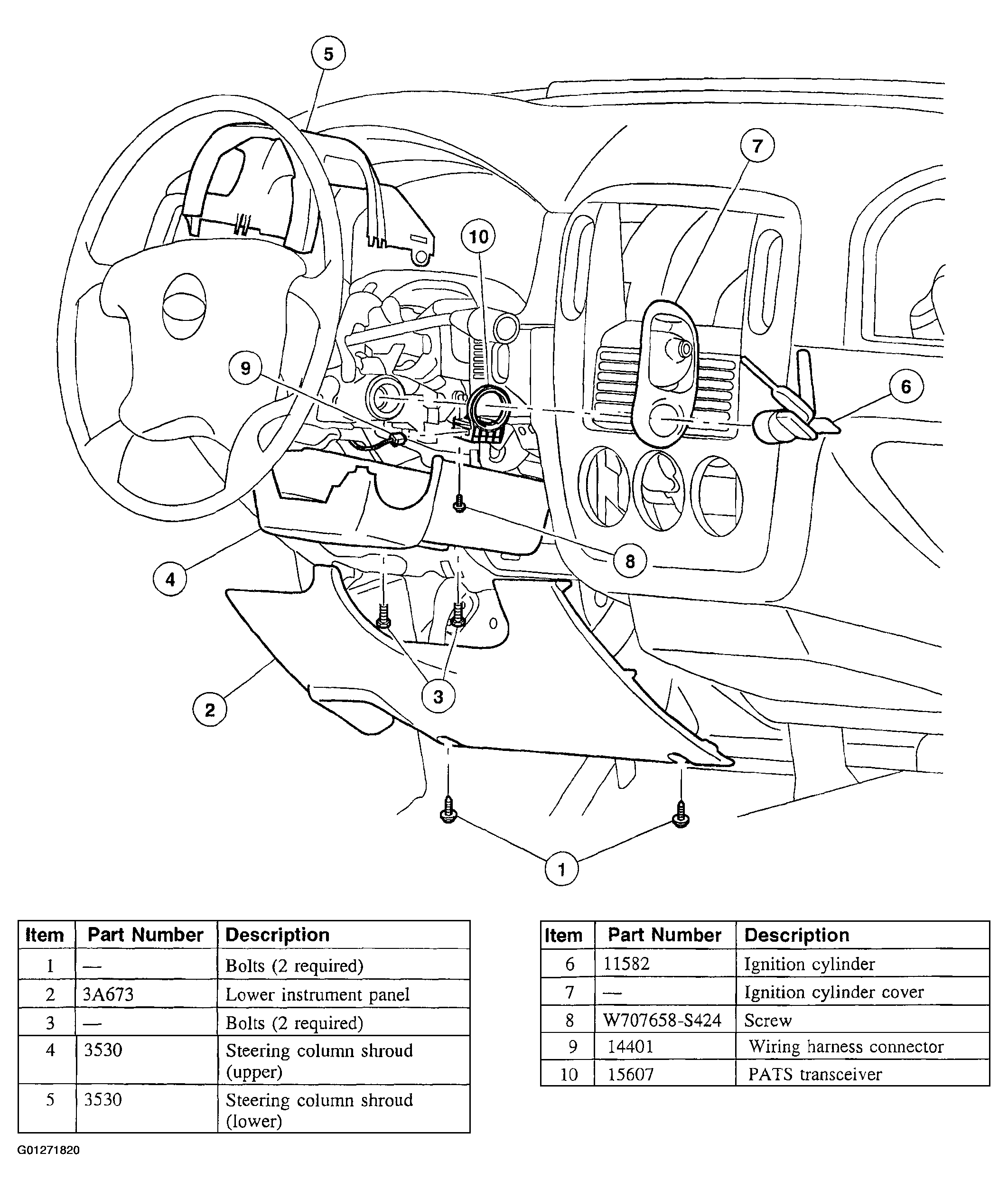

    Fig 1: Removal Order Of Passive Anti-Theft System (PATS) Transceiver
    G01271820Courtesy of FORD MOTOR CO.
  2. Install in the reversr order of removal.
