Driver Memory Seat Module C341f

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

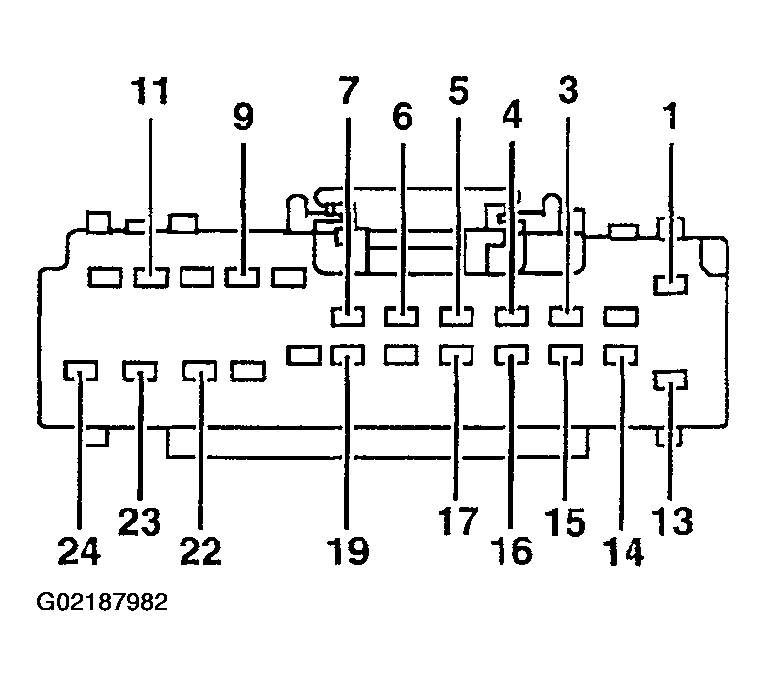

Fig 1: Identifying Driver Memory Seat Module C341f Connector Pinouts

Courtesy of FORD MOTOR CO.

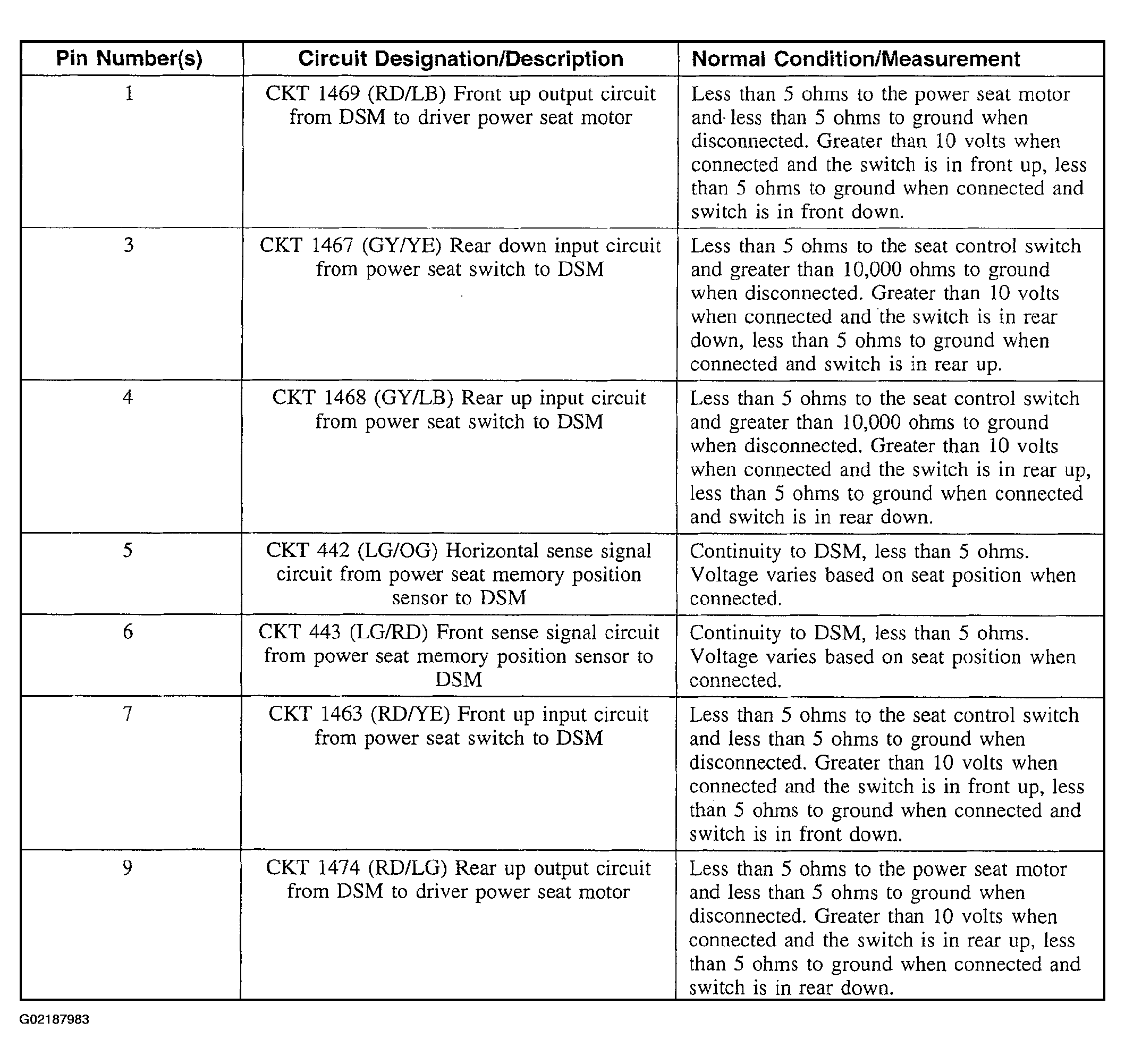

Fig 2: Driver Memory Seat Module C341f Connector Pins Reference Table (1 Of 2)

Courtesy of FORD MOTOR CO.

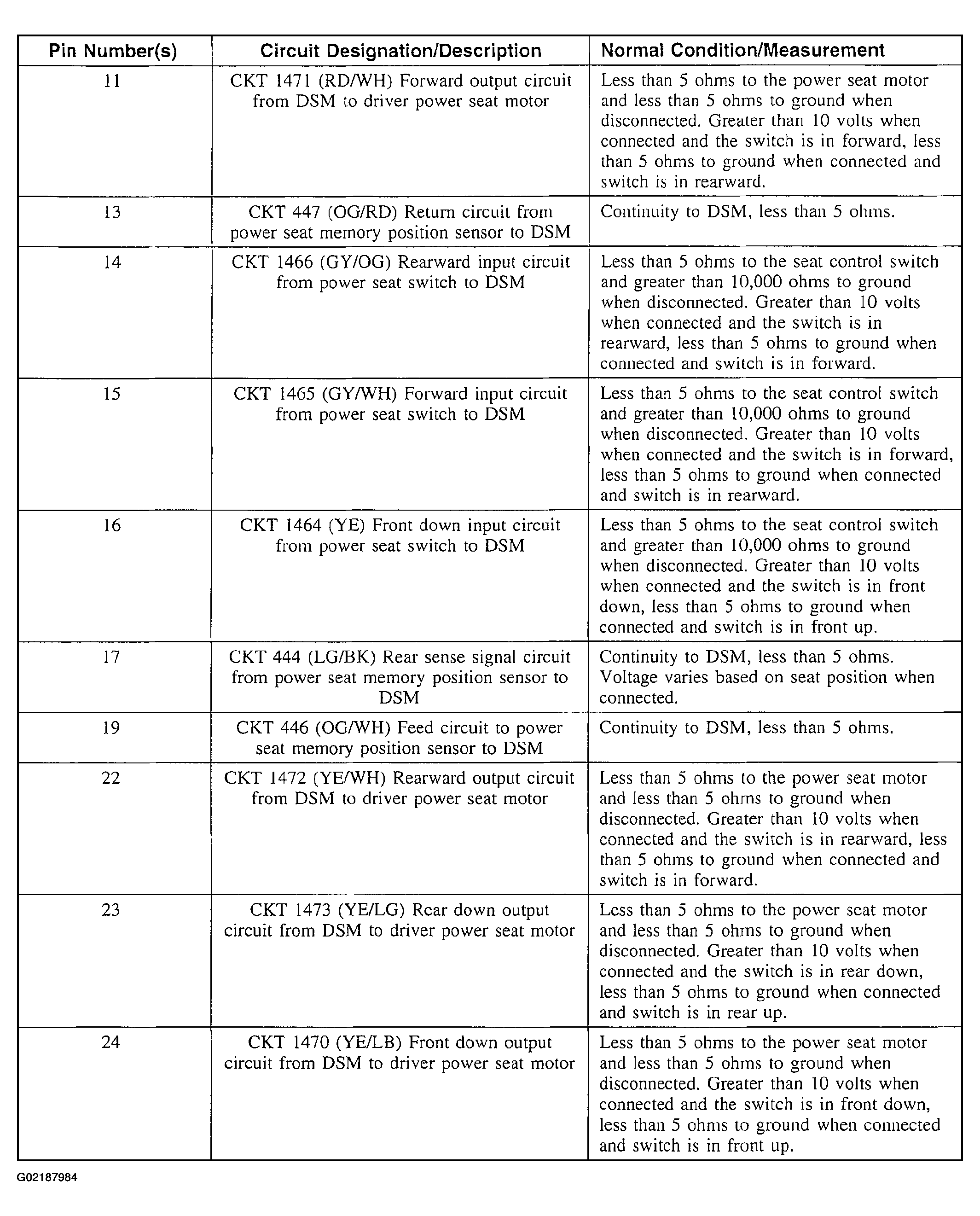

Fig 3: Driver Memory Seat Module C341f Connector Pins Reference Table (2 Of 2)

Courtesy of FORD MOTOR CO.
