Vehicle Security Module C3008d

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Vehicle Security Module C3008d
G02188415Courtesy of FORD MOTOR CO.

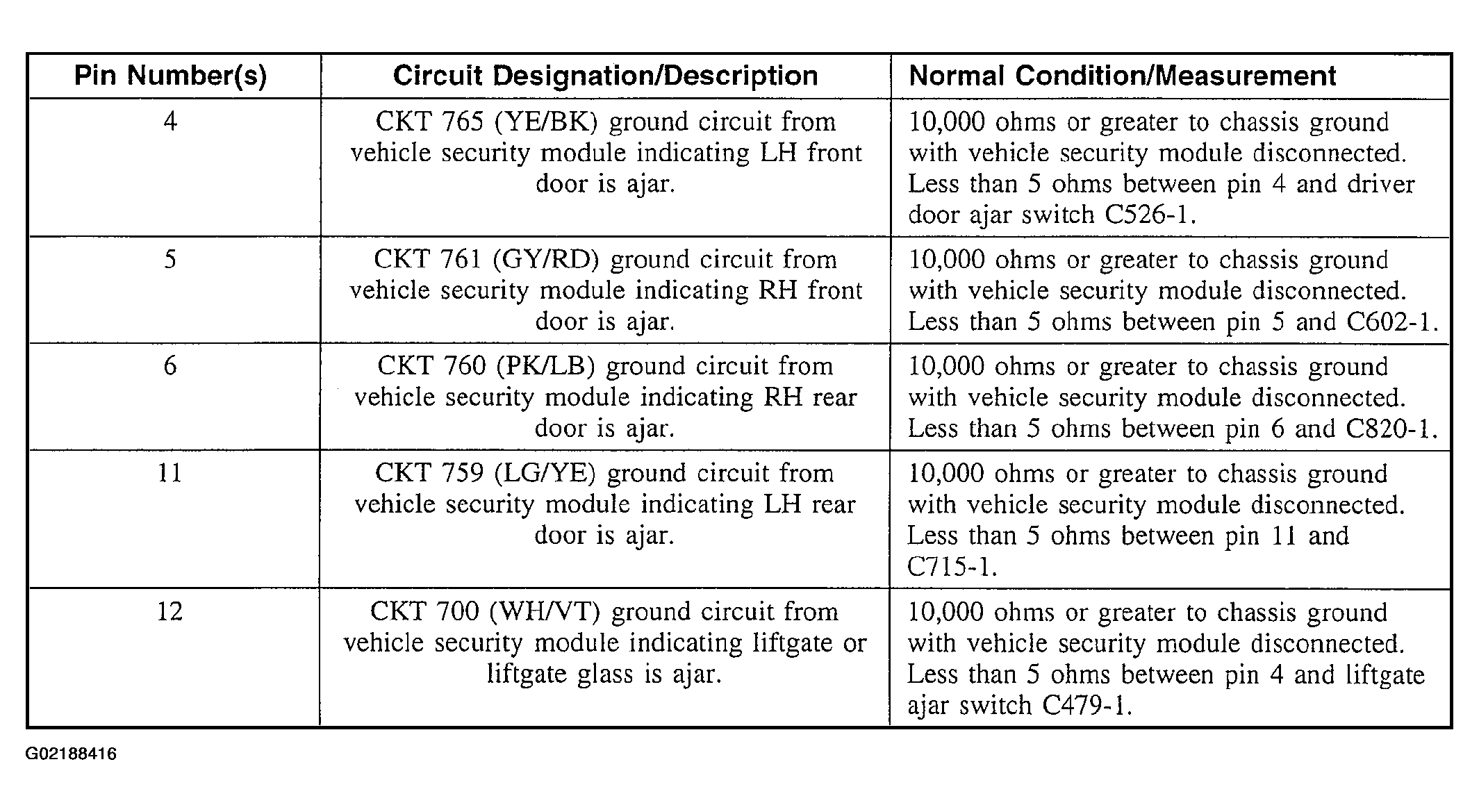

Fig 2: Identifying Description Table
G02188416Courtesy of FORD MOTOR CO.
