Driver Memory Seat Module C341a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

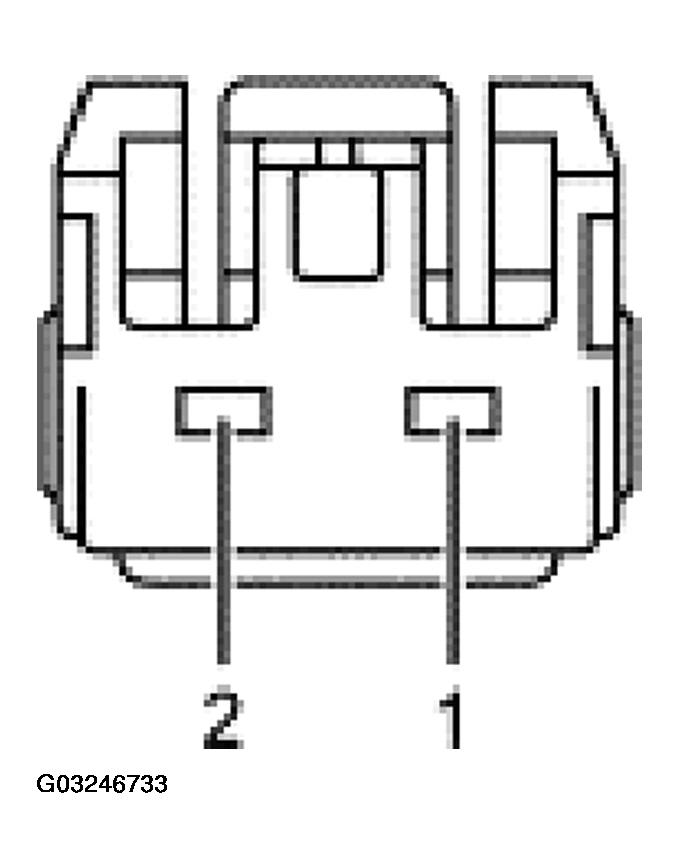

Fig 1: Identifying Driver Memory Seat Module C341a
G03246733Courtesy of FORD MOTOR CO.
DRIVER MEMORY SEAT MODULE C341a PIN CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 566 (DG) Battery voltage from BEC Greater than 10 volts at all times.
2 CKT 1205 (BK) Ground Continuity to ground, less than 5 ohms.
