Air Spring Refold

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not clamp any portion of the air spring piston.

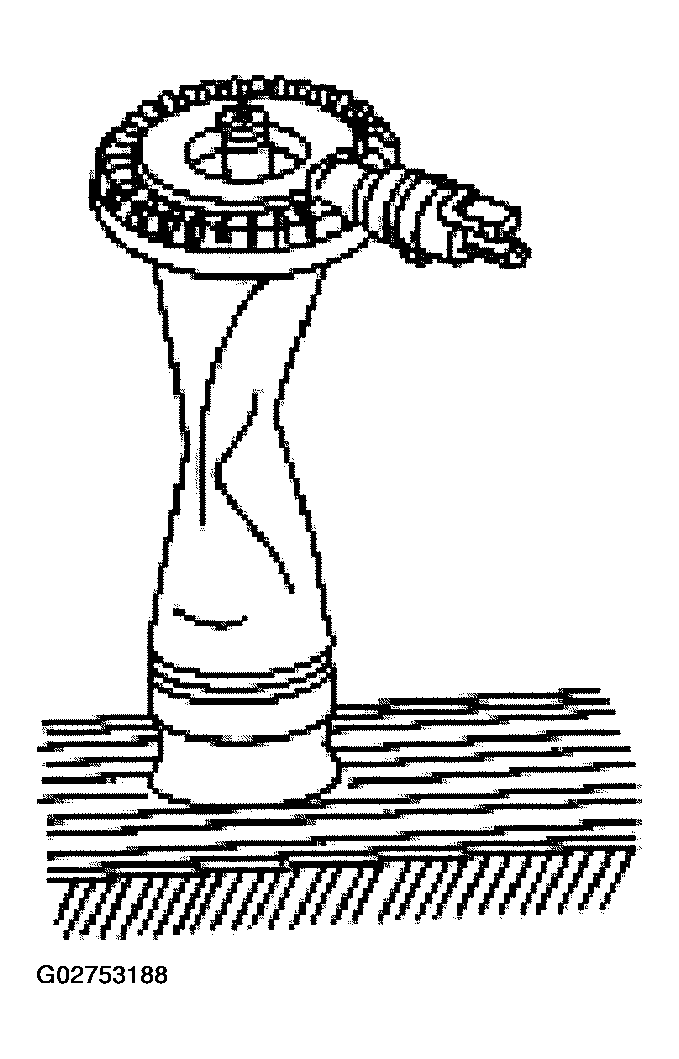

Fig 1: Placing Air Spring On Flat Surface

Courtesy of FORD MOTOR CO.

Place the air spring on a flat surface.
Remove the air spring solenoid to expand the collapsed air bag.

Fig 2: Removing Air Spring Solenoid To Expand Collapsed Air Bag
Courtesy of FORD MOTOR CO.
Push the membrane down over the piston to the correct height.

Fig 3: Pushing Membrane Down Over Piston
Courtesy of FORD MOTOR CO.
Install the air spring solenoid to help maintain the correct height.

Fig 4: Installing Air Spring Solenoid

Courtesy of FORD MOTOR CO.
