Hydraulic System: Notes

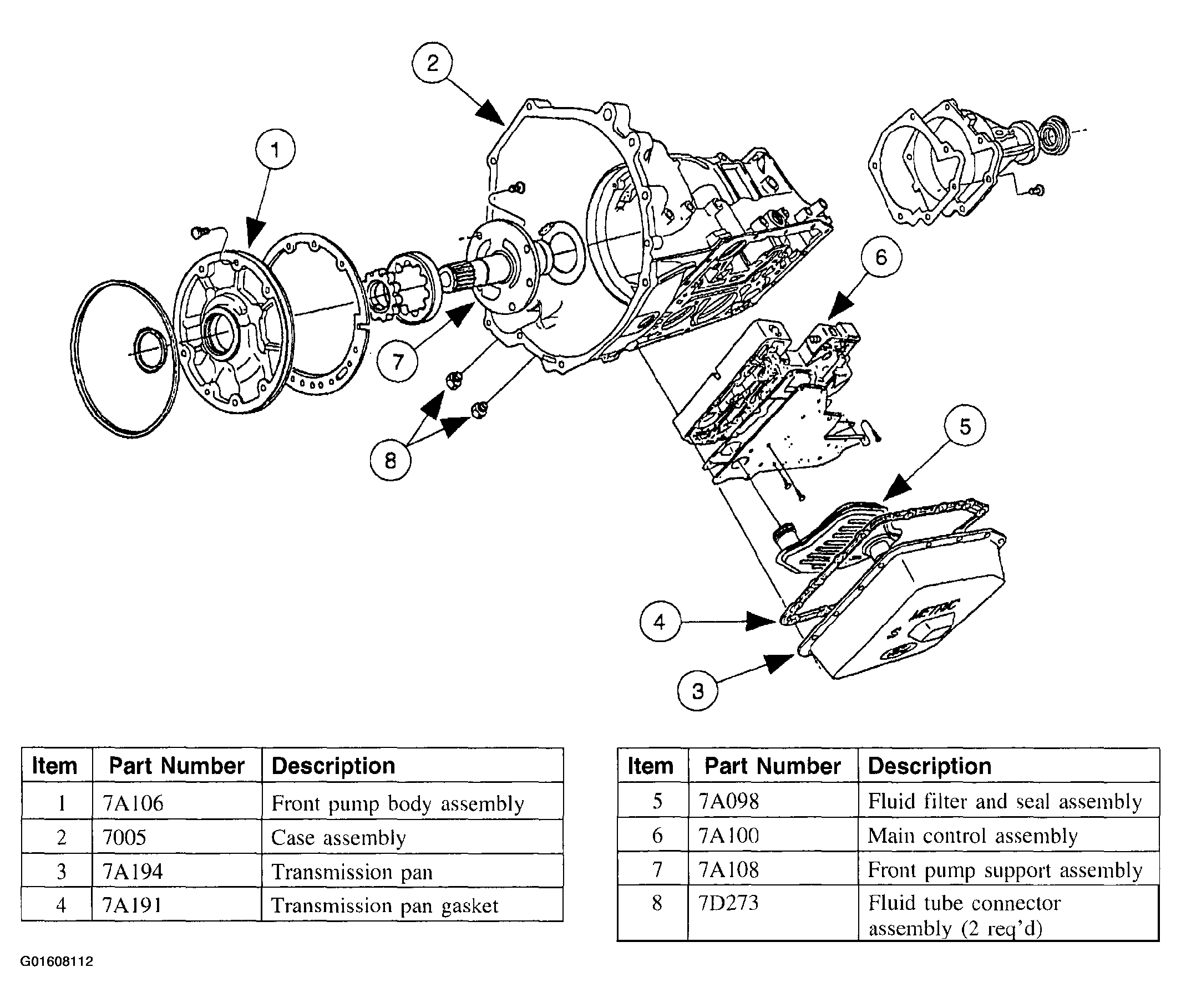

Fig 1: Identifying Hydraulic System Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
