Pinpoint Test C: No Communication With The Lighting Control Module

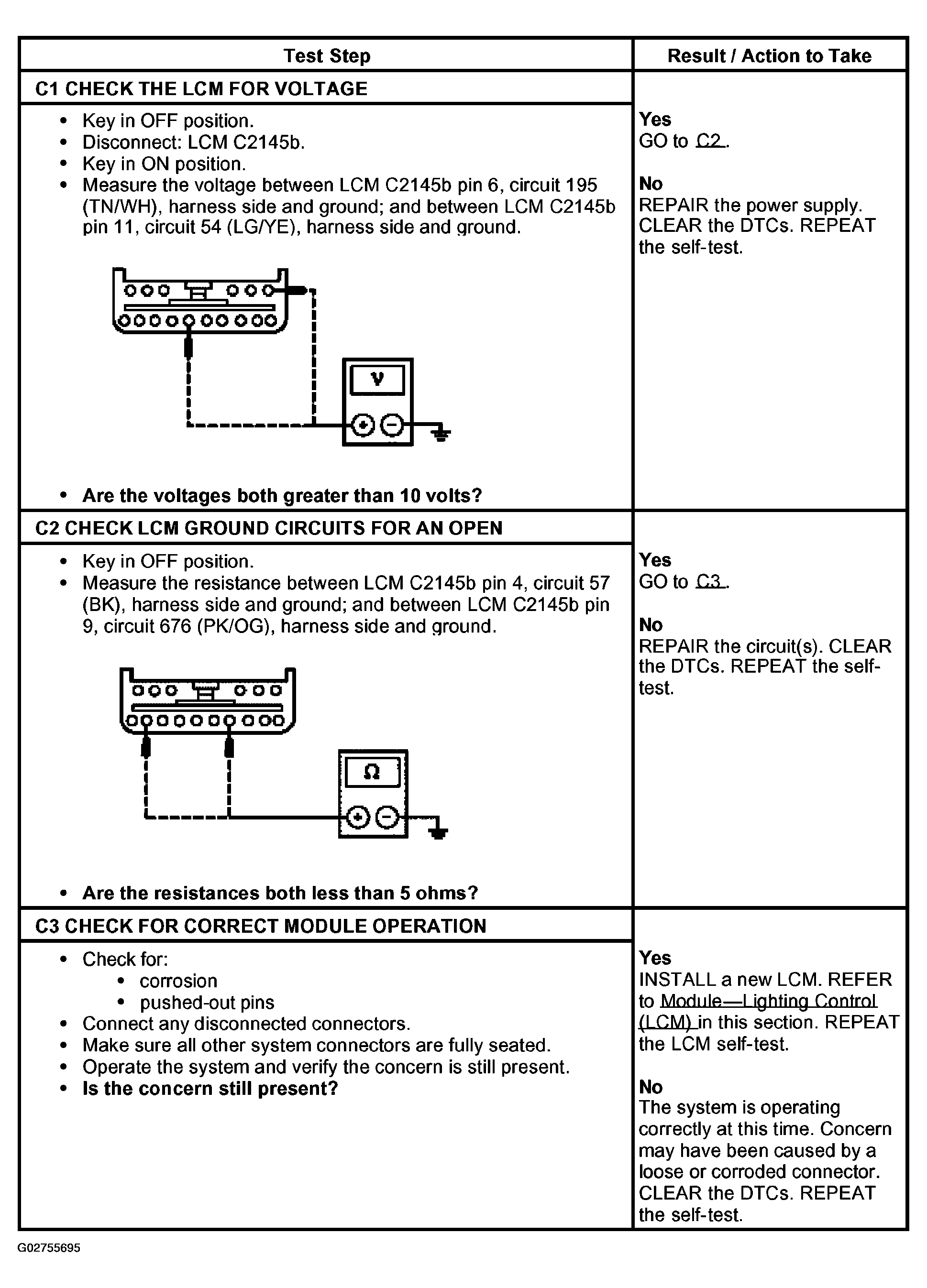

Fig 1: Pinpoint Test C: No Communication With Lighting Control Module
G02755695Courtesy of FORD MOTOR CO.
