Steering System

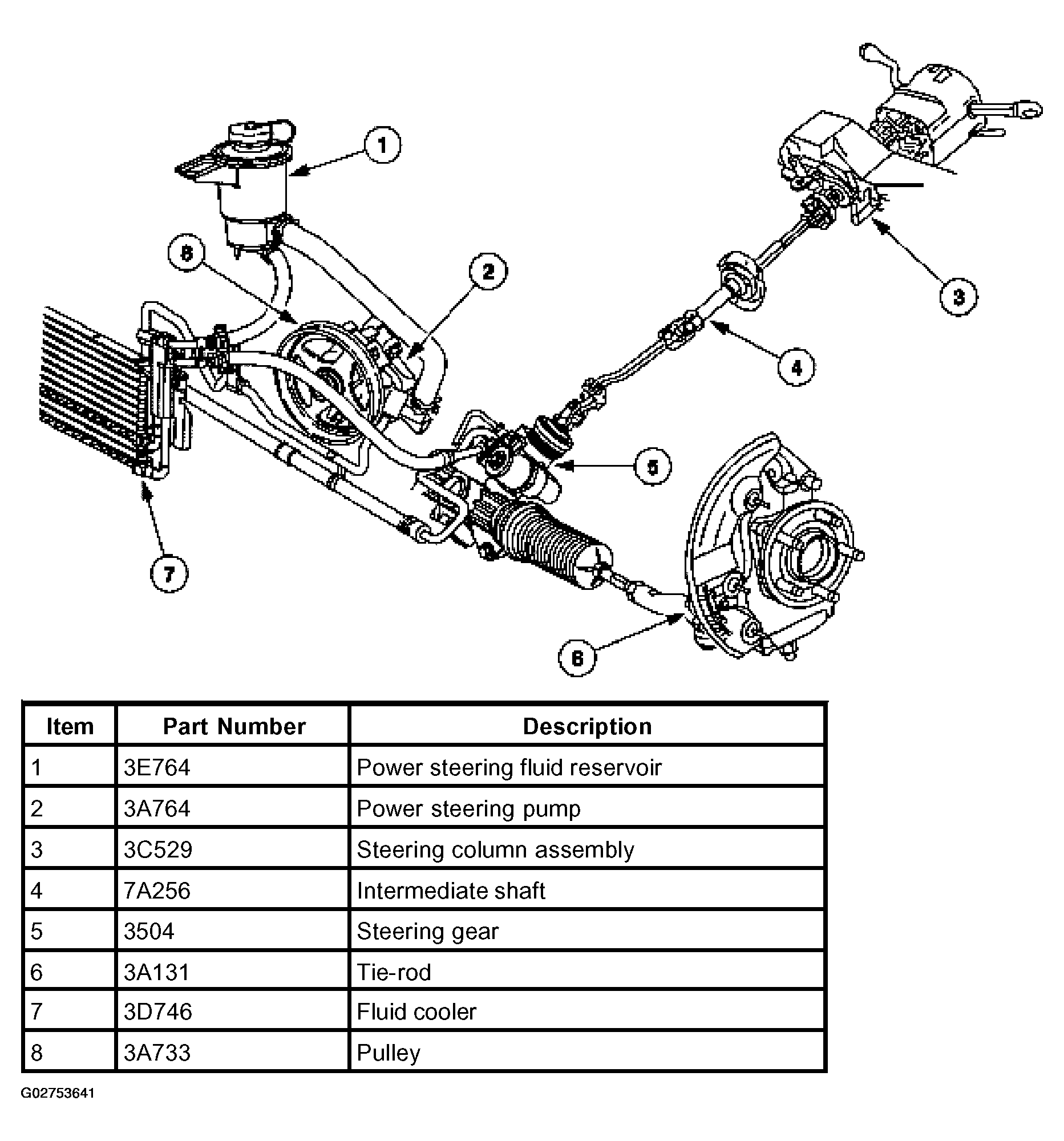

Fig 1: Identifying Power Steering System Components

Courtesy of FORD MOTOR CO.

For information on the power steering pump reservoir, power steering pump, power steering lines, and steering gear, refer to POWER STEERING .

For information on the steering wheel, column assembly and intermediate shaft, refer to STEERING COLUMN .
