Symptom Chart - Column Shift
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Chart - Column Shift

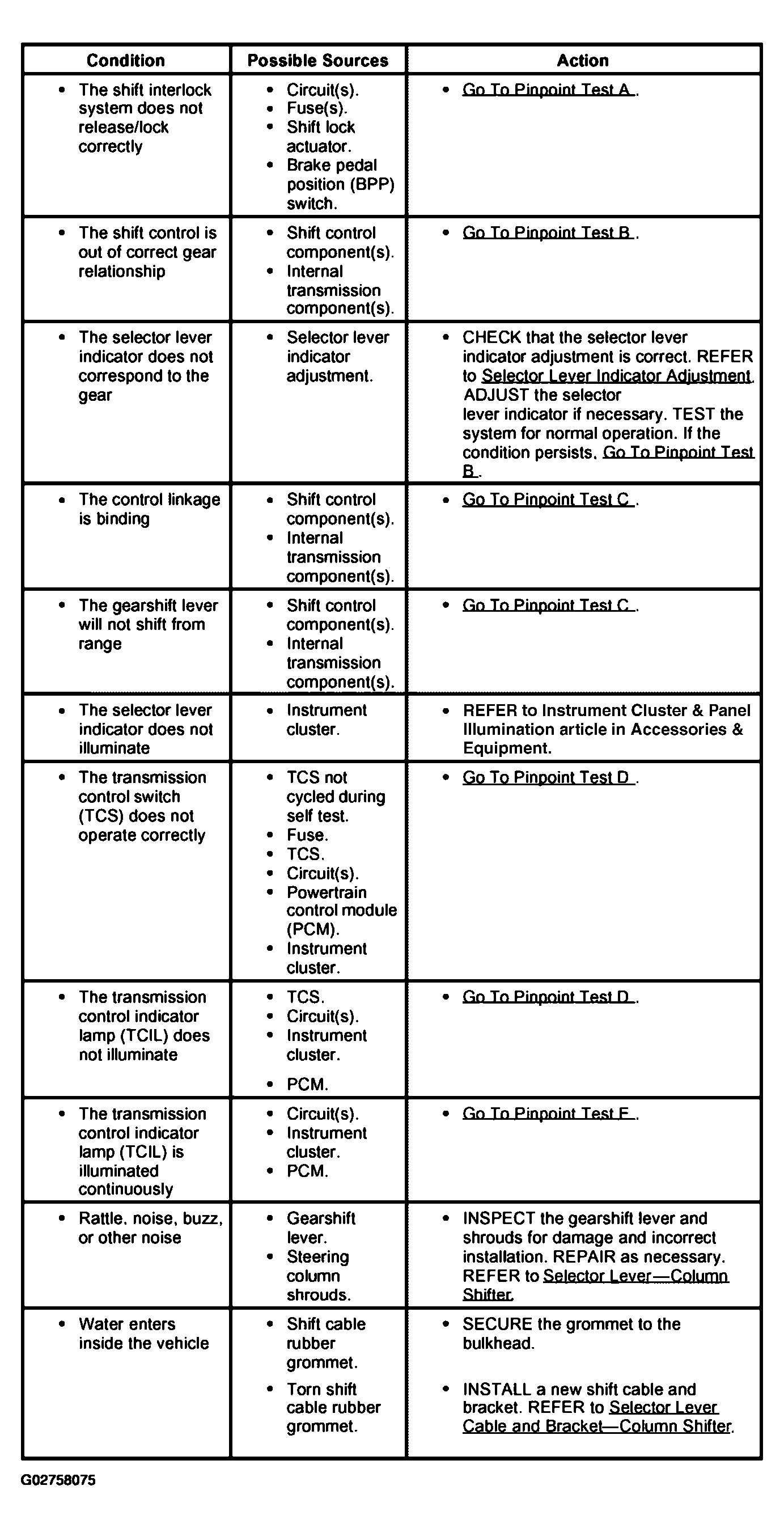

Fig 1: Symptom Chart - Column Shift
Courtesy of FORD MOTOR CO.
