Disassembled Views

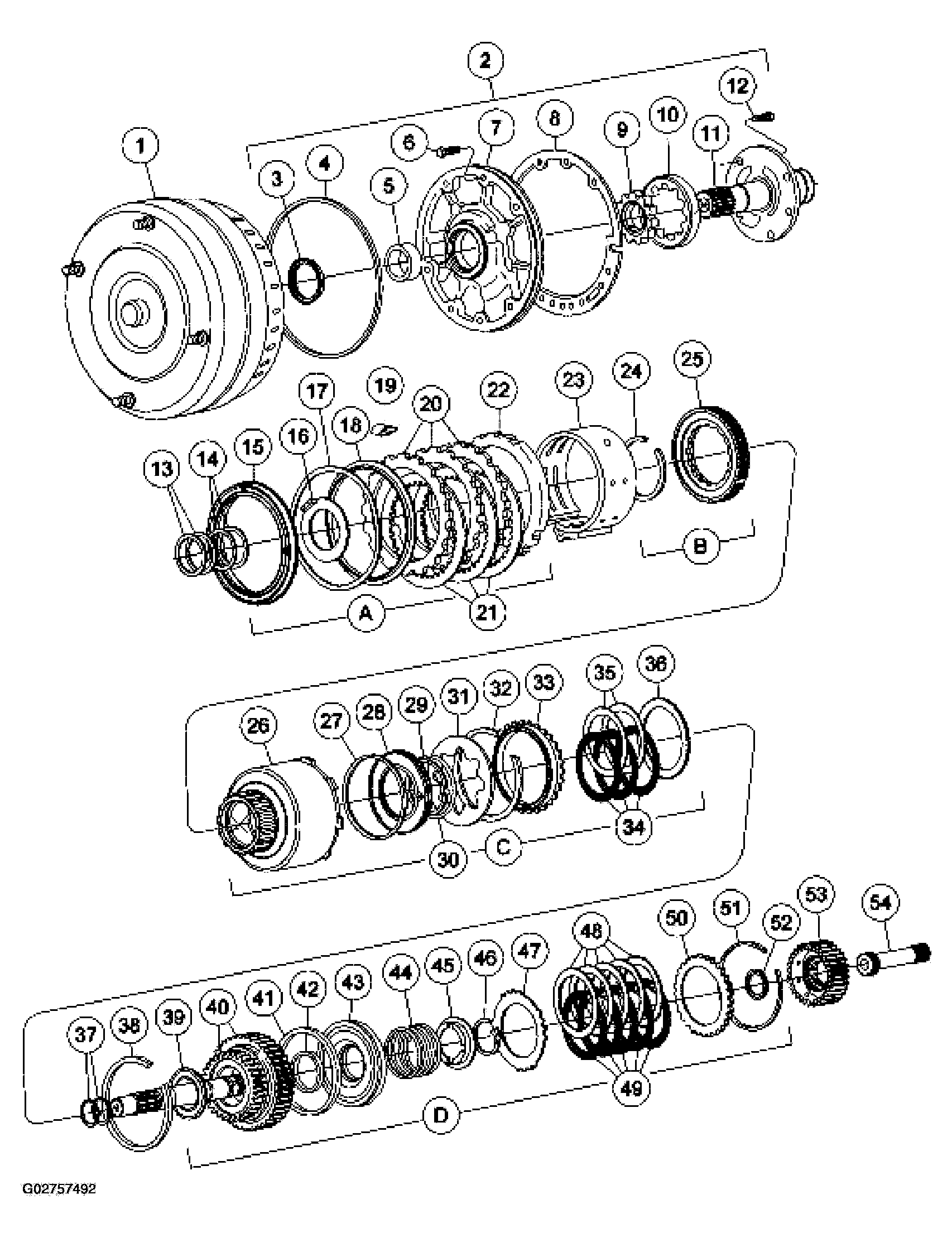

Fig 1: Disassembled View - Automatic Transmission (1 Of 2)

Courtesy of FORD MOTOR CO.

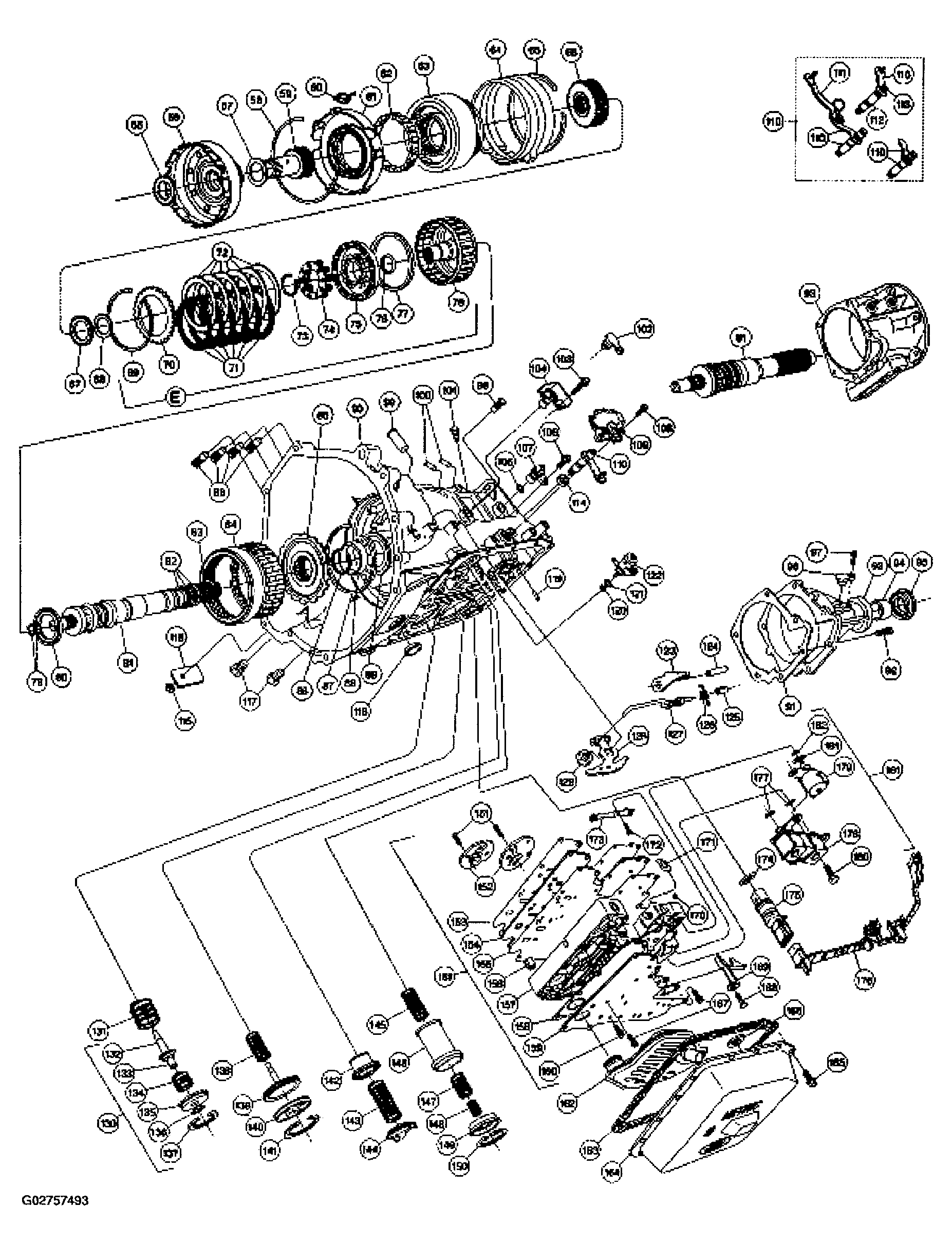

Fig 2: Disassembled View - Automatic Transmission (2 Of 2)

Courtesy of FORD MOTOR CO.

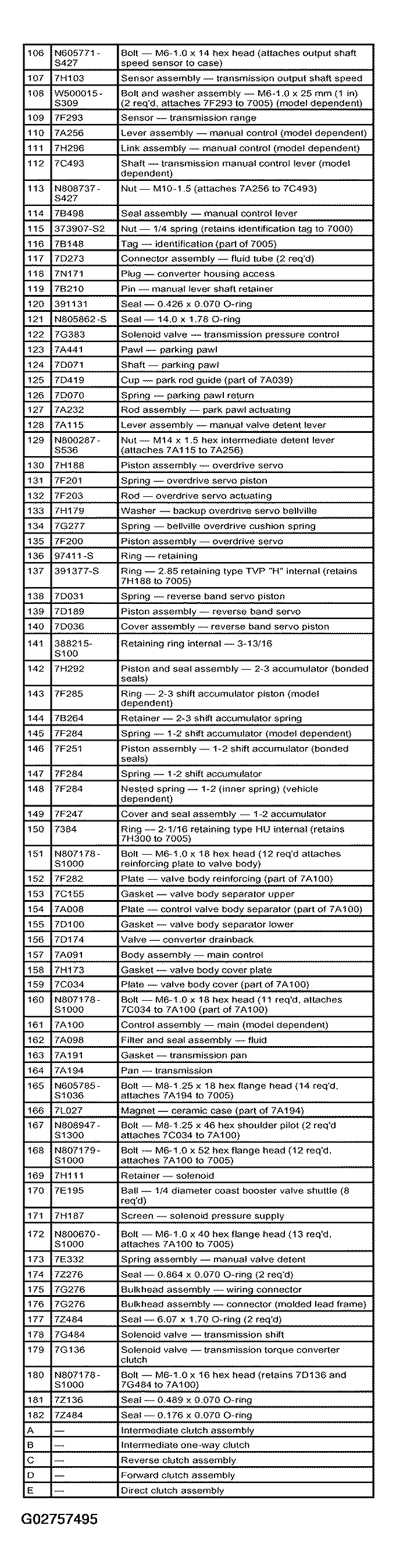

Fig 3: Parts Descriptions Table (Items 1-105)

Courtesy of FORD MOTOR CO.

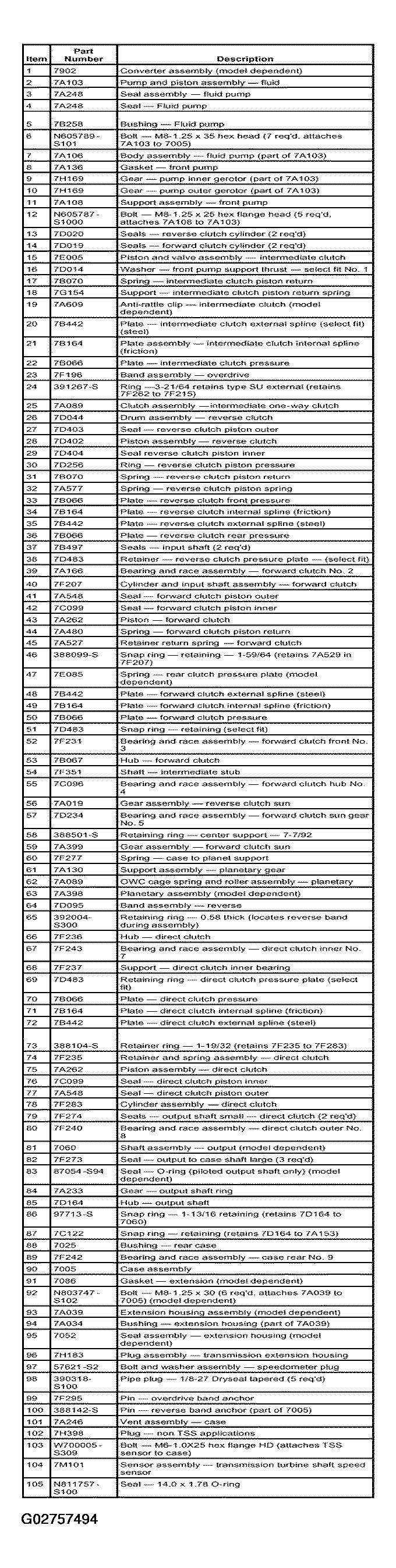

Fig 4: Parts Descriptions Table (Items 106-182, A-E)
